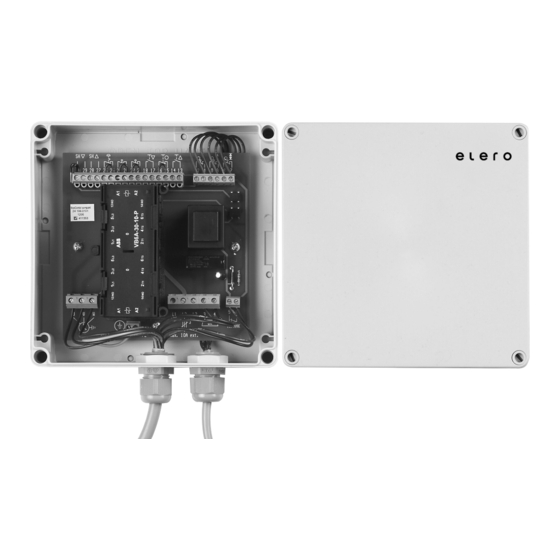

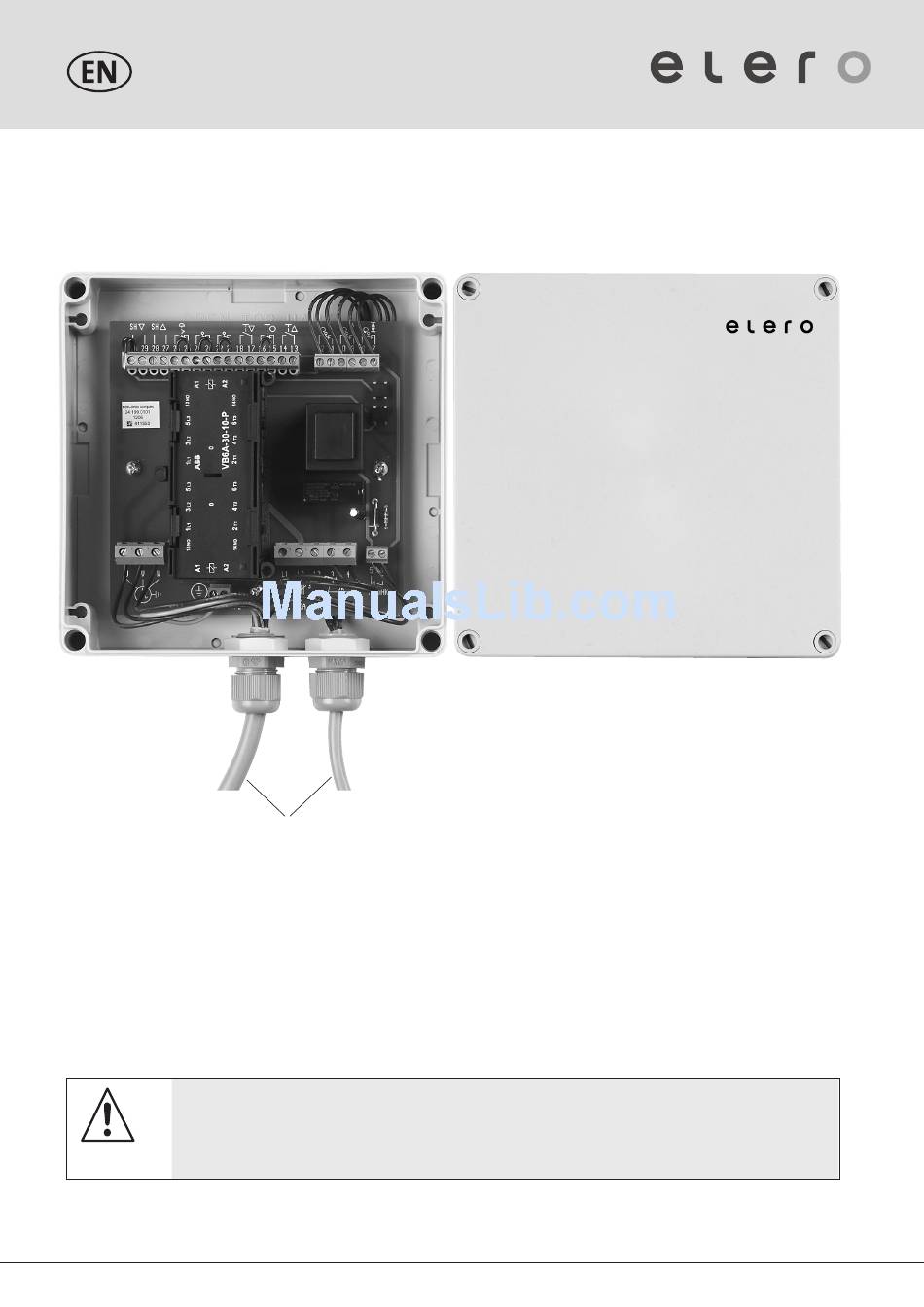

- Page 1 BoxControl compact Simple drive control for rolling and sectional doors Motor and control cable For the safety of persons it is important to follow these instructions! Keep these instructions! Caution! 148014801_EN_1213...
- Page 2 Technical data Safety instructions Technical data: Version 3~230 V 3~400 V Rated voltage 3~230 V/PE (1~230 V/PE) 3~400 V/PE Frequency: 50/60 Hz On-site fuse protection: 10 A Breaking capacity: 3 kW 4 kW Contactor: mech. locked Protection class: IP 65 Motor and control cable: 1 m long Housing dimensions:...
- Page 3 Fastening dimensions Assembly Housing fastening below the cover screws Hole diameter = 5 mm Notes for safe installation 1. Check the nominal voltage before making the electrical connections (3 x 400 V; 3 x 230 V or 1 x 230 V) 2.
- Page 4 Connection example DFM/DKM-Antriebe 3 x 400 V Safety devices Moment Door-edge Wind-up EMERGENCY Safety Three-way button Up-Stop-Down switch U security system protection STOP switch switch Safety devices Momentary contact Door-edge Wind-up EMERGENCY Safety Three-way button Up-Stop-Down switch Up/Down security system protection STOP switch switch...
-
Page 5: Connection Example
Connection example for DFM/DKM drives 3 x 230 V and WFM/WKM-170 1 x 230 V Safety devices Momentary contact Three-way button Up-Stop-Down switch Up/Down Door-edge Wind-up EMERGENCY Safety security system protection STOP switch switch 22 21 17 16 14 13 16 15 Insert the necessary bridge when working... - Page 6 Connection example for BoxLine DSM; DRM; DCM 3 x 400 V Safety devices Three-way button Up-Stop-Down swit Door-edge Wind-up Safety EMERGENCY security system protection switch STOP switch Safety devices Momentary contact Three-way button Up-Stop-Down switch Up/Down Door-edge Wind-up EMERGENCY Safety security system protection STOP switch...
- Page 7 Connection example for BoxLine DSM; DRM; DCM 3 x 230 V and BoxLine WSM; WRM; WCM 1 x 230 V Safety devices Momentary contact Door-edge Wind-up EMERGENCY Safety Three-way button Up-Stop-Down switch Up/Down security system protection STOP switch switch 24 23 22 21 14 13 18 17...
-
Page 8: Manufacturer's Declaration
Manufacturer’s declaration Manufacturer‘s declaration elero GmbH herebly declares that BoxControl comapact complies with the basic prerequisites and the other relevant provisi- ons of the EC directives. The complete manufacturer‘s declaration can be found in the download area of our website.
