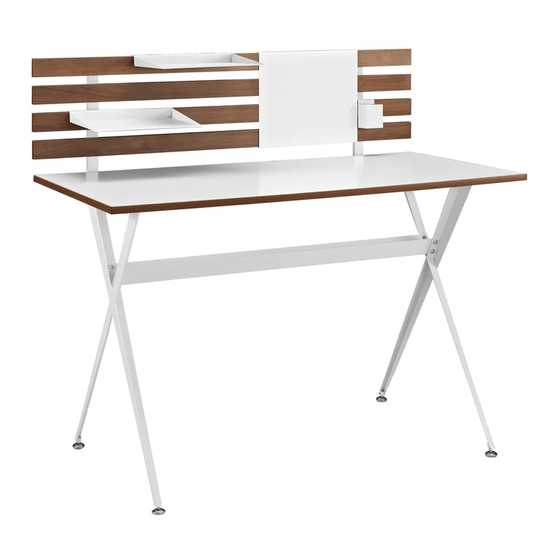

EEI -1326
DESK
Thank you for purchasing the MODWAY DESK！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
A
Top Panel
D
Connect Rail
G
Customer Service 908-368-1025︱www.modwayfurniture.com
E
F
E
D
B
B
x1
E
x2
Back panel
x1
Hardware:
a
b
c
d
e
f
g
h
F
G
A
C
Leg
x2
Back Stretcher
x4
H
Bolt M6x12mm
Bolt M6x23mm
Bolt M6x25mm
Nut
Leveler
Flat Washer
Allen Wrench
Open Wrench
E
E
H
D
B
C
Center Rail
F
Tray
Pen Box
x1
x12
x8
x4
x8
x4
x4
x1
x1
x1
x2
Page 1 of 4
Advertisement
Related Manuals for modway EEI-1326
Summary of Contents for modway EEI-1326
- Page 1 EEI -1326 DESK Thank you for purchasing the MODWAY DESK！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI -1326 DESK STEP 1: Please place the Center Rail (C) and 2pcs of Legs (B) as shown. Attach one of Legs (B) to the Center Rail (C) by using 4pcs Bolts (a) and 4pcs Nut (d) as shown. Full tighten the Bolts (a) and Nuts (d) by using Allen Wrench (g) and Open Wrench (h). Repeat the same steps for the other Leg (B) to the Center Rail (C).
- Page 3 EEI -1326 DESK STEP 3: Carefully turn over the desk. Attach one piece of Connect Rail (D) the Center Rail (C) by using 2pcs Bolts (b) from the bottom of the Top Panel (A) as shown. Full tight the Bolts (b) with the Allen Wrench () as shown. Hardware &...
- Page 4 EEI -1326 DESK STEP 5: Insert the remain three Back Stretcher (E) from the side of the Back Panel (G) as shown. Then attach them to the Connect Rail () by using 6pcs Bolts (b) and 6pcs Flat Washer (f) as shown. Full tight the Bolts (b) with the Allen Wrench (g) as shown.
