AW-SMU06EN

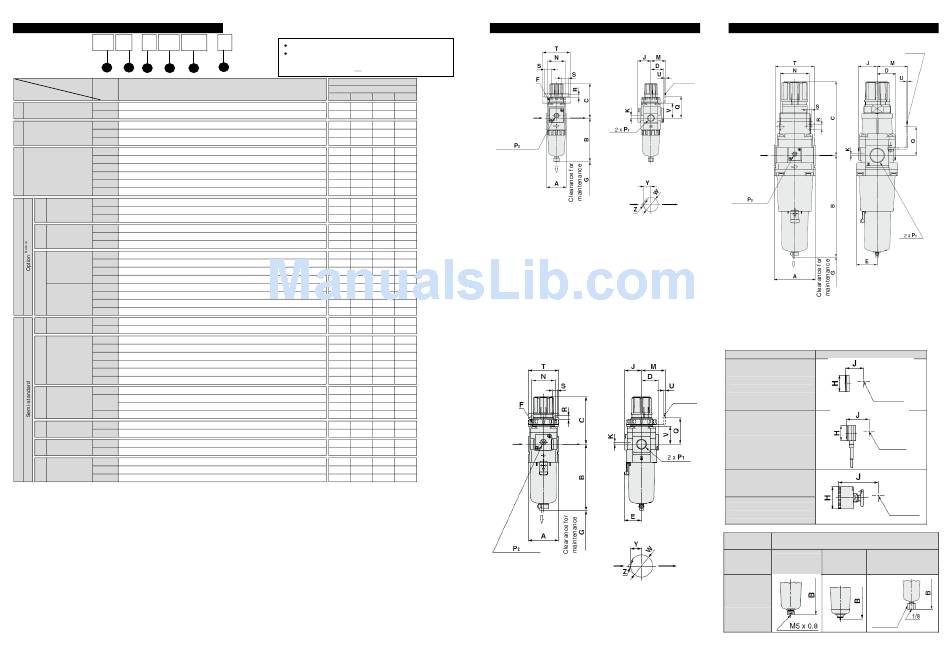

4 How to Order
AW 30 K – 03 BE –
1 2
3 4 5
Symbol
Nil Without backflow function
❷
With backflow function
Note1)
K
Nil
Note 2)
❸ N
Pipe thread type
Note 3)
F
01
02
03
❹
Port size
04
06
10
Nil Without mounting option
Note 5)
a Mounting B With bracket
H With set nut (for panel mount)
Nil Without auto drain
Float type
Note 6)
b C N.C. (Normally closed) Drain port is closed when pressure is not applied.
auto drain
Note 7)
D N.O. (Normally open) Drain port is open when pressure is not applied.
NIL Without pressure gauge
❺
E Square embedded type pressure gauge (with limit indicator)
Pressure
Note 8)
gauge G Round type pressure gauge (with limit indicator)
M Round type pressure gauge (with colour zone)
c
E1
Output: NPN output / Electrical entry: Wiring bottom entry
E2
Digital pressure Output: NPN output / Electrical entry: Wiring top entry
Note 9)
switch E3
Output: PNP output / Electrical entry: Wiring bottom entry
E4
Output: PNP output / Electrical entry: Wiring top entry
Set pressure Nil 0.05 to 0.85 MPa setting
d
Note 10)
1 0.02 to 0.2 MPa setting
Nil Polycarbonate bowl
2 Metal bowl
6 Nylon bowl
Note 11)
e Bowl
8 Metal bowl with level gauge
C With bowl guard
6C Nylon bowl with bowl guard
Nil With drain cock
❻ Drain guide 1/8
Note 14) Note 15)
f J
Drain port
Drain guide 1/4
Note 16)
W Drain cock with barb fitting
Nil Relieving type
Exhaust
g
mechanism
N Non-relieving type
Nil Flow direction: Left to right
h Flow direction
R Flow direction: Right to left
Nil Name plate, caution plate for bowl, and pressure gauge in imperial units: MPa
Note 17)
i Pressure unit Z Name plate, caution plate for bowl , and pressure gauge in imperial units: psi, °F
Note18)
ZA Digital pressure switch: With unit conversion function
Note 1) Set the inlet pressure to at least 0.05 MPa higher than the set pressure.
Drain guide is NPT1/8 (applicable to the AW20(K)-B) and NPT1/4 (applicable to the AW30(K)-B to AW60(K)-B). The auto drain port comes with Ø3/8" One-touch fitting (applicable to the
Note 2)
AW30(K)-B to AW60(K)-B).
Note 3) Drain guide is G1/8 (applicable to the AW20(K)-B) and G1/4 (applicable to the AW30(K)-B to AW60(K)-B).
Note 4) Option B, G, H, M are not assembled and supplied loose at the time of shipment.
Note 5) Assembly of a bracket and set nuts (applicable to the AW20(K)-B to AW40(K)-B). Including 2 mounting screws for the AW60(K)-B.
Note 6) When pressure is not applied, condensate which does not start the auto drain mechanism will be left in the bowl. Releasing th e residual condensate before ending operations for the day is
recommended.
Note 7) If the compressor is small (0.75 kW, discharge flow is less than 100 /min [ANR]), air leakage from the drain cock may occur during start of operations. N.C. type is recommended.
Note 8) When the pressure gauge is attached, a 1.0 MPa pressure gauge will be fitted for standard (0.85 MPa) type. 0.4 MPa pressure gauge for 0.2 MPa type.
When choosing with H (panel mount), the installation space for lead wires will not be secured. In this case, select "wiring top entry" for the electrical entry. (Select "wiring bottom entry" when the
Note 9)
semi-standard Y is chosen simultaneously.)
Note 10) Pressure can be set higher than the specification pressure in some cases, but use pressure within the specification range.
Note 11) Refer to Chemical data in the catalogue for chemical resistance of the bowl.
Note 12) A bowl guard is provided as standard equipment (polycarbonate).
Note 13) A bowl guard is provided as standard equipment (nylon).
Note 14) The combination of float type auto drain: C and D is not available.
Note 15) Without a valve function
Note 16) The combination of metal bowl: 2 and 8 is not available.
Note 17) For pipe thread type: NPT. This product is for overseas use only according to the new Measurement Law. (The SI unit type is p rovided for use in Japan.) Cannot be used with M: Round
pressure gauge (with color zone). Available by request for special. The digital pressure switch will be equipped with the unit conversion function, setting to psi initially.
Note 18) For options: E1, E2, E3, E4. This product is for overseas use only according to the new Measurement Law. (The SI unit is provided for use in Japan.)
Note 19) : For pipe thread type: NPT only
Note 20) : Select with options: E1, E2, E3, E4.
– B
Option/Semi-standard: Select one each for a to i
Option/Semi-standard symbol:
specification is required, indicate in alphanumeric order.
6
(Example: AW30K-03BE-1N-B)
❶
Description Body size
20 30
 
 
With backflow function
 
Rc
 
NPT
 
G
 –
1/8
 
1/4
– 
3/8
– –
1/2
– –
3/4
– –
1
 
 
 
 
 
– 
 
 
 
 
 
 
 
 
 
 
 
 
 
– 
 – Note 12)
 – Note 13)
 

–
– 
– 
 
 
 
 
 
Note 19) Note 19)
  
Note 20) Note 20)
  
5 Outline Dimensions (mm)
5.1 AW20(K)-B
When more than one
40 60
 
 
IN
 
 
 
– –
(Pressure gauge port size)
 –
 –
 –
Drain
 
– 
 
 
 –
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
  5.2 AW30(K)-B, AW40(K)-B
 
– Note 12) – Note 12)
– Note 13) – Note 13)
 
– –
 
 
 
 
  IN
 
 
Note 19) Note 19)

Note 20) Note 20)

Drain
(Pressure gauge port size)
5 Outline Dimensions (mm) – continued
5.3 AW60(K)-B
Bracket
(Option)
OUT
(Port size)
Panel fitting dimensions
IN OUT
(Pressure gauge
port size)
Plate thickness
AW20(K)-B: Max. 3.5
Option
Square embedded type
pressure gauge
Bracket
(Option)
Digital pressure switch
OUT
(Port size)
Round type pressure gauge
Round type pressure gauge
(with colour zone)
Panel fitting dimensions
Applicable
model
Optional/Semi-
standard
IN OUT
specifications
Plate thickness
AW30(K)-B: Max. 3.5
AW40(K)-B: Max. 5 Dimensions
Bracket
(Option)
IN OUT
(Port size)
Drain
Dimensions
Center of
piping
Center of
piping
Center of
piping
AW20(K)-B
With auto drain
Metal bowl With drain guide
(N.C.)
Width across
flats 14
