Chapter 3. Initial Setup and Programming

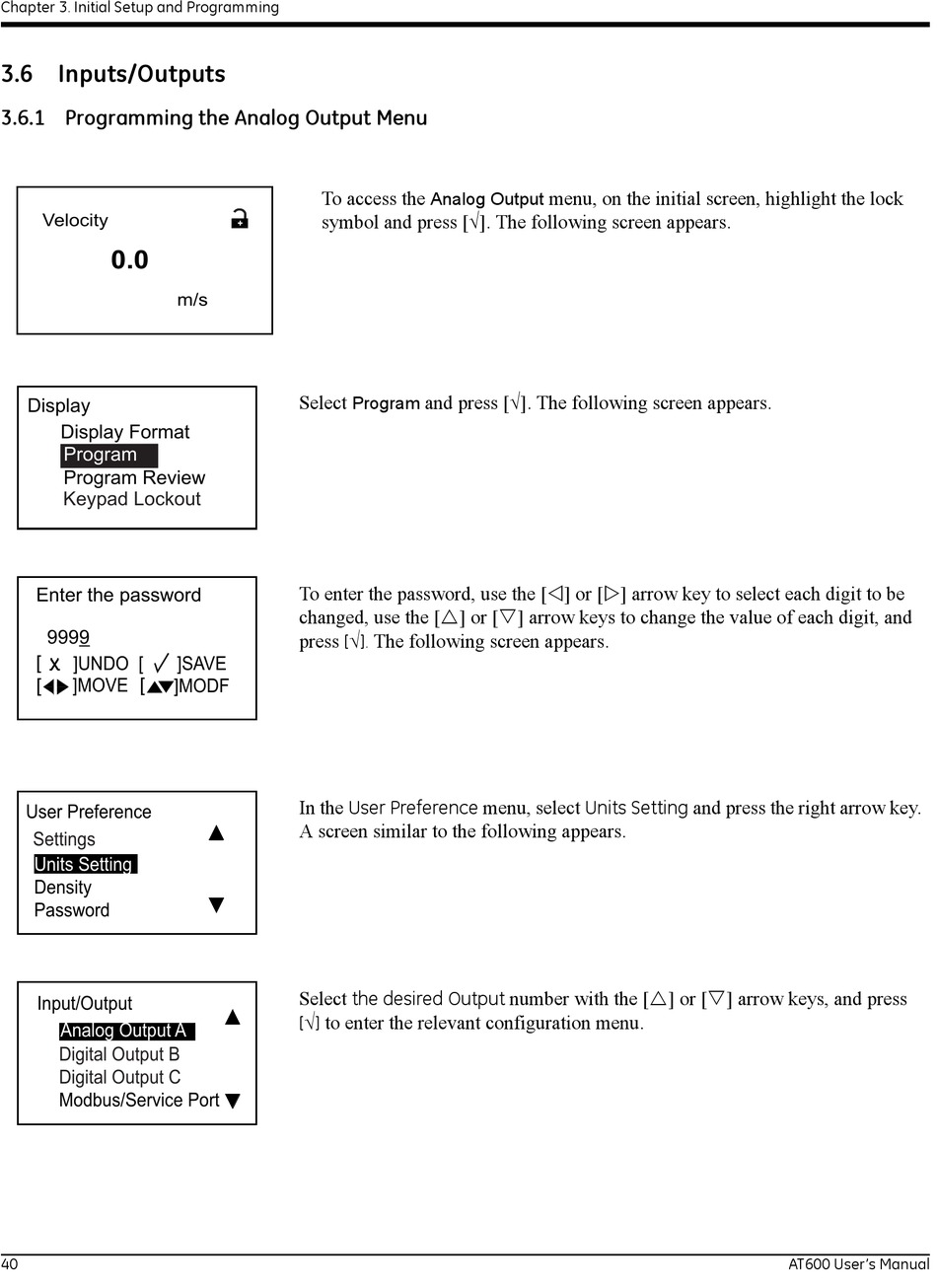

3.6 Inputs/Outputs

3.6.1 Programming the Analog Output Menu

Velocity
0.0
m/s
Display
Display Format
Program
Program Review
Keypad Lockout
Enter the password
9999
]UNDO [ ]SAVE
]MOVE
]MODF
User Preference
Settings
Units Setting
Density
Password
Input/Output
Analog Output A
Digital Output B
Digital Output C
Modbus/Service Port
40
To access the
Analog Output
symbol and press [√]. The following screen appears.
Select and press [√]. The following screen appears.
Program
To enter the password, use the [] or [] arrow key to select each digit to be
changed, use the [] or [] arrow keys to change the value of each digit, and

press The following screen appears.
[ ].
In the User Preference menu, select Units Setting and press the right arrow key.
A screen similar to the following appears.
Select the desired Output number with the [] or [] arrow keys, and press

to enter the relevant configuration menu.
[ ]
menu, on the initial screen, highlight the lock
AT600 User's Manual
