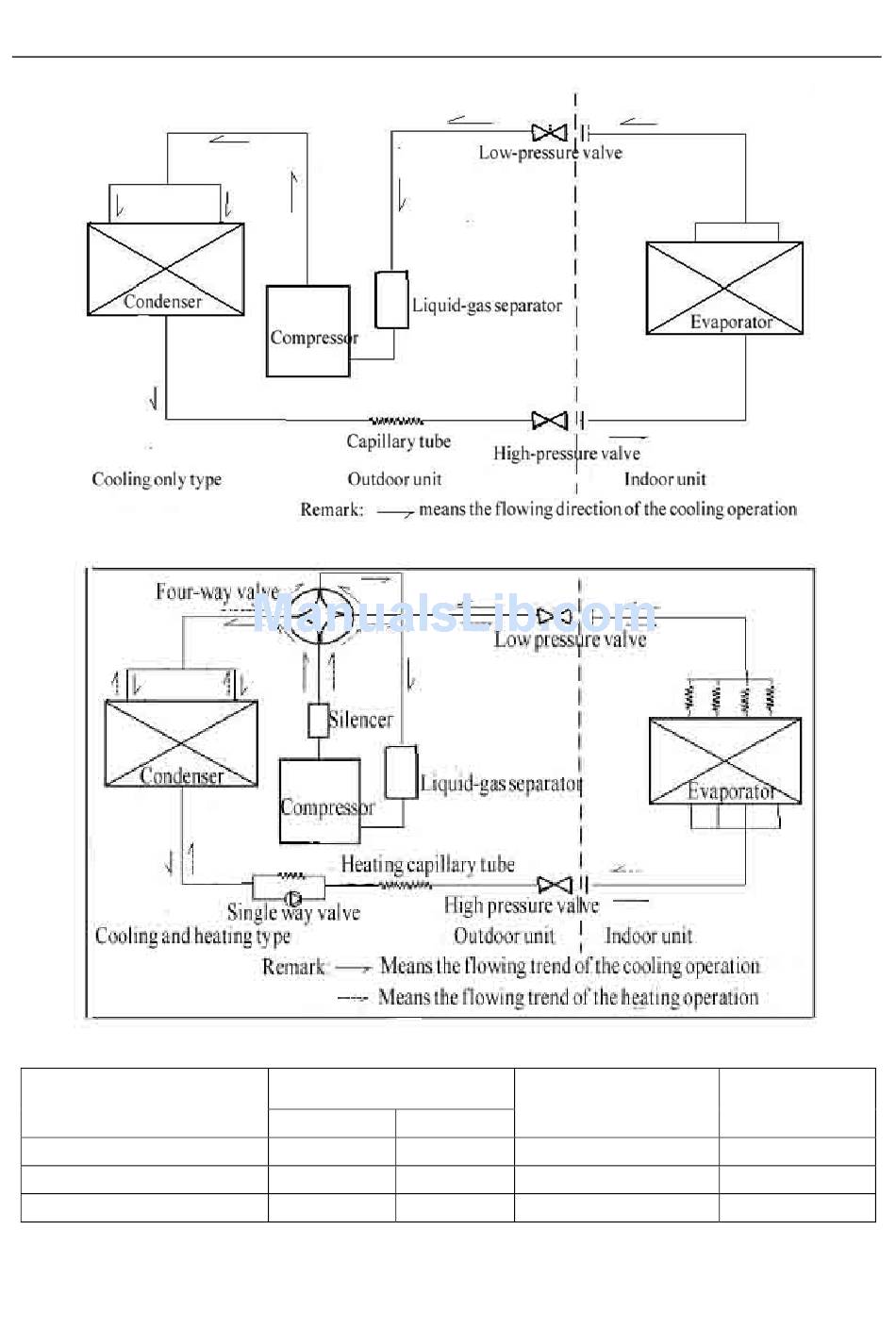

Refrigeration Cycle Diagram

MODEL
9K,12K BTU Series
18K BTU Series
24K BTU Series
Pipe size (Diameter: Ø)
Liquid(inch) Gas(inch)
1/4
3/8
1/4
1/2
3/8
5/8
- 3 -
Max. Piping Length
(m)
15
20
25
Max. Elevation
(m)
3-4
5
5.5
