Menu overview

To access the main menu, press the MENU key on the Model 2450 front panel. The figure below
shows the organization of the main menu.
The main menu includes six submenus. The submenus are labeled in green across the top of the
display. The icons in each submenu open interactive screens.
For more detailed information about the menus, see the Model 2450 Reference Manual.

Store measurements on a USB flash drive

You can copy the measurement data from the Model 2450 to a USB flash drive. The information is
saved in the .csv file format.
To store measurement data:
1. Insert a flash drive into the front-panel USB port.
2. Press the MENU key.
3. In the Measure column, select Data Buffers.
4. Select the buffer that you want to save.
5. Select Save to USB.
6. Enter a name for the new file.
7. Select the OK button on the displayed keyboard.
8. Select Yes to confirm saving the file.
2450-900-01 Rev. C / December 2013

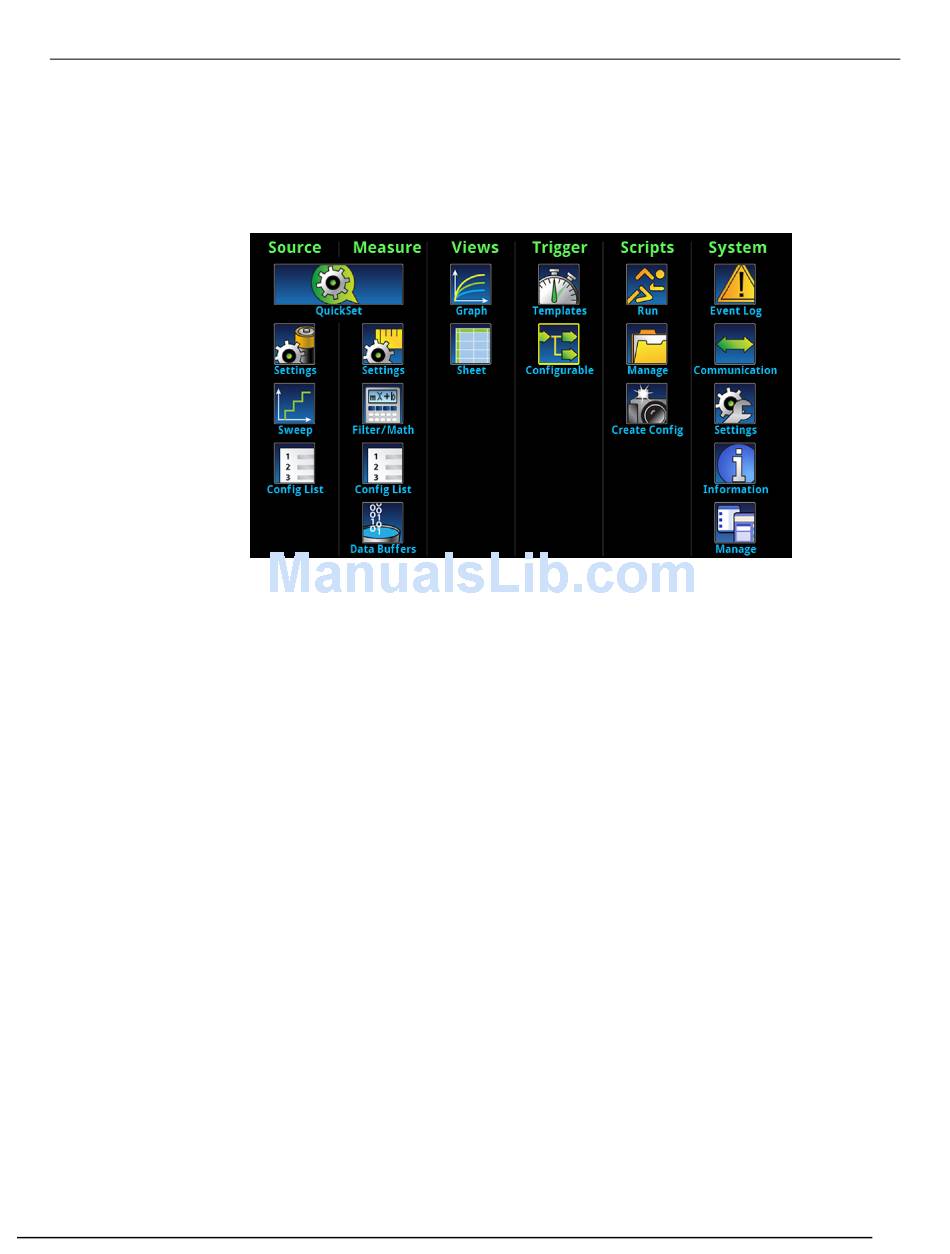

Figure 7: Model 2450 main menu
