In this section:
Front panel overview ................................................................ 2-1
Power the instrument on or off ................................................. 2-3
Turning the Model 2450 output on or off .................................. 2-4
Using the touchscreen interface ............................................... 2-5
Store measurements on a USB flash drive .............................. 2-7
Saving screen captures to USB flash drive .............................. 2-8

Front panel overview

The front panel of the Model 2450 is shown below. Descriptions of the controls on the front panel
follow the figure.
POWER switch
HOME key
MENU key
QUICKSET key
HELP key

Using the front-panel interface

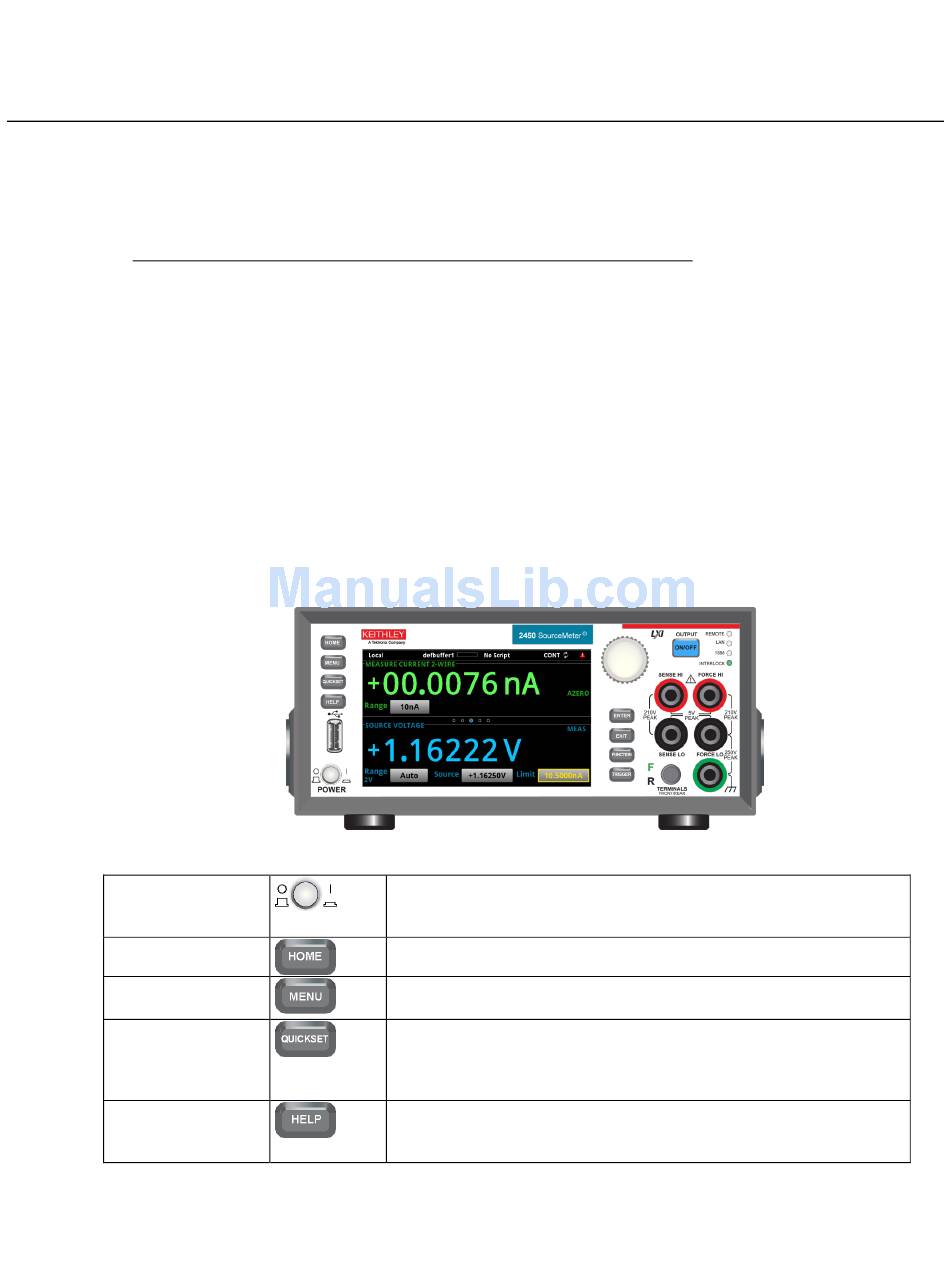

Figure 1: Model 2450 front panel
Turns the instrument on or off. To turn the instrument on, press the
power switch so that it is in the on position (|). To turn it off, press the
power switch so that it is in the off position (O).
Returns the display to the Home (default) screen.
Opens the main menu. Press the icons on the main menu to open
source, measure, views, trigger, scripts, and system screens.
Opens a menu of preconfigured setups, including voltmeter,
ammeter, ohmmeter, and power supply setups. Also allows you to
choose test functions and adjust performance for better resolution or
speed.
Opens help for the area or item that is selected on the display. If
there is no selected area or item when you press the HELP key,
overview information for the screen you are viewing is displayed.
