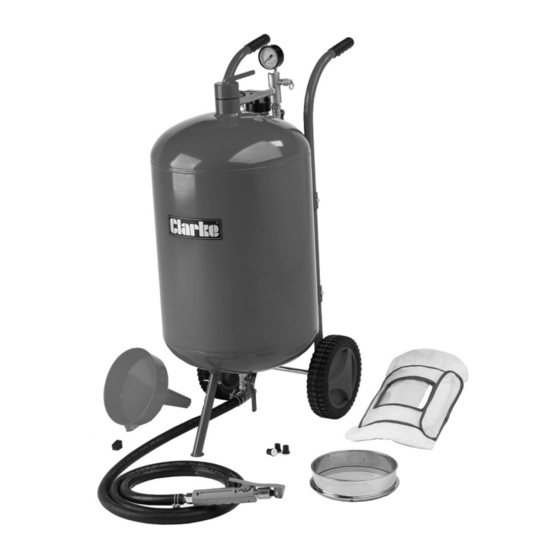

PRESSURISED SANDBLASTER
MODEL NO: CPSB200B
PART NO: 7640134
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0218 ISS 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPSB200B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke CPSB200B

  • Page 1 PRESSURISED SANDBLASTER MODEL NO: CPSB200B PART NO: 7640134 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0218 ISS 1...
  • Page 2: Carton Contents

    This guarantee does not effect your statutory rights. CARTON CONTENTS The following items should be supplied in the carton. If any parts are missing or damaged, please see your Clarke dealer. • 1 x Tank Assembly • 1 x Front Leg •...
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. 1. Read this instruction manual before connecting the sandblaster to your compressor. 2.
  • Page 4: Environmental Protection

    14. Do not attempt to operate this product near flammable materials or combustibles. Failure to comply may cause serious injury. 15. Always make sure that the trigger is not on before connecting the sandblaster to the air supply. 16. Store idle equipment out of the reach of children and untrained persons. Tools may be dangerous in the hands of untrained users.
  • Page 5: Fit The Pressure Gauge To The Tank

    ASSEMBLY FIT THE PRESSURE GAUGE TO THE TANK 1. Screw the pressure gauge onto Fig 1 the sandblaster as shown in Fig 1. FIT THE HANDLE BARS TO THE TANK 1. Lay the tank on a flat level surface Fig 2 such as a workbench, with the handlebar mounting brackets facing up, as shown in Fig 2.
  • Page 6: Attach The Front Leg

    3. Slide a wheel onto each end of the axle followed by another washer. 4. Use the circlip provided to secure the wheel, see Fig 4. Fig 4 5. Press the wheel cover onto the wheel as shown in Fig 5. Fig 5 ATTACH THE FRONT LEG 1.
  • Page 7: Operation

    AND PROPERLY SEALED. WARNING: THIS SANDBLASTER IS NOT INTENDED FOR USE WITH SILICA BASED ABRASIVES. WHICH HAVE BEEN LINKED TO SEVERE RESPIRATORY DISEASE. ALWAYS USE SILICA SUBSTITUTES (SUCH AS CLARKE GLASS BEAD ABRASIVE. SAFETY AND HEALTH CONSIDERATIONS • Before opening tank make sure that it is not pressurized. Ensure the gauge reads “0”.
  • Page 8: Abrasive Selection

    ABRASIVE SELECTION The type of abrasive you choose will greatly influence the amount of time needed to clean a given surface area. Suitable Abrasives available from your clarke stockist Aluminium Oxide 60-80 60-80 80-120 Powder 22kg 20kg 7.5kg 22kg 7.5kg...
  • Page 9: To Start Blasting

    5. Replace the filler cap ensuring the O-ring is in place. NOTE: Place your air compressor in another room to prevent damage from the intake of abrasive dust laden air. TO START BLASTING NOTE: Start with all valves in the closed position. Following the instructions below will help prevent clogging in the delivery hose, outlet manifold and in the gun.
  • Page 10: Abrasive Flow Adjustment

    7. With the trigger open, slowly open the abrasive control valve as shown in Fig 14 until abrasive material begins to flow out of the gun. 8. Adjust the abrasive control valve until the desired amount of abrasive material is flowing through the gun.
  • Page 11: Maintenance

    3. When you notice only air (no Fig 16 abrasive material) is coming out of the gun, release the trigger and close the Air Supply Valve, see Fig 4. Ensure the throttle valve is open, see Fig 17. 5. Point the gun in a safe direction. 6.
  • Page 12: Replacing The Nozzle

    2. Unscrew the nozzle adapter (38), located at the front of the gun. 3. Remove the old nozzle (37) and insert the new one. • A pack of 4 replacement nozzles are available from your Clarke dealer Part number 7640132.
  • Page 13: Specifications

    SPECIFICATIONS Sand Grade Type Recommended 80-100 grit Abrasive Material Aluminium Oxide, Sand, Garnet, Glass Beads Tank Capacity (working) 63 Litres (13.86 Gallons) Operating Pressure 65 - 125 PSI (4.4 - 8.6 Bar) Flow Rate Required 169-707 l/min (6-25 cfm) Min Compressor Size Required 2-10 HP (dependant on setting) Nozzle Sizes 2, 2.5, 3, 3.5 mm...
  • Page 14: Exploded Diagram

    EXPLODED DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 15: Parts List

    PARTS LIST DESCRIPTION DESCRIPTION Tank Funnel Wheel Hood Circlip Lens for Hood Front Foot Upper Gun Body Axle Lower Gun Body Handle Bar Metal Pipe Handle Grip Inlet Connector Pan Head Screw Adapter Hex Nut O-Ring Safety Valve Ceramic Nozzle 0-Ring Rubber Adapter Tank Filler Cap...

This manual is also suitable for:

7640134
