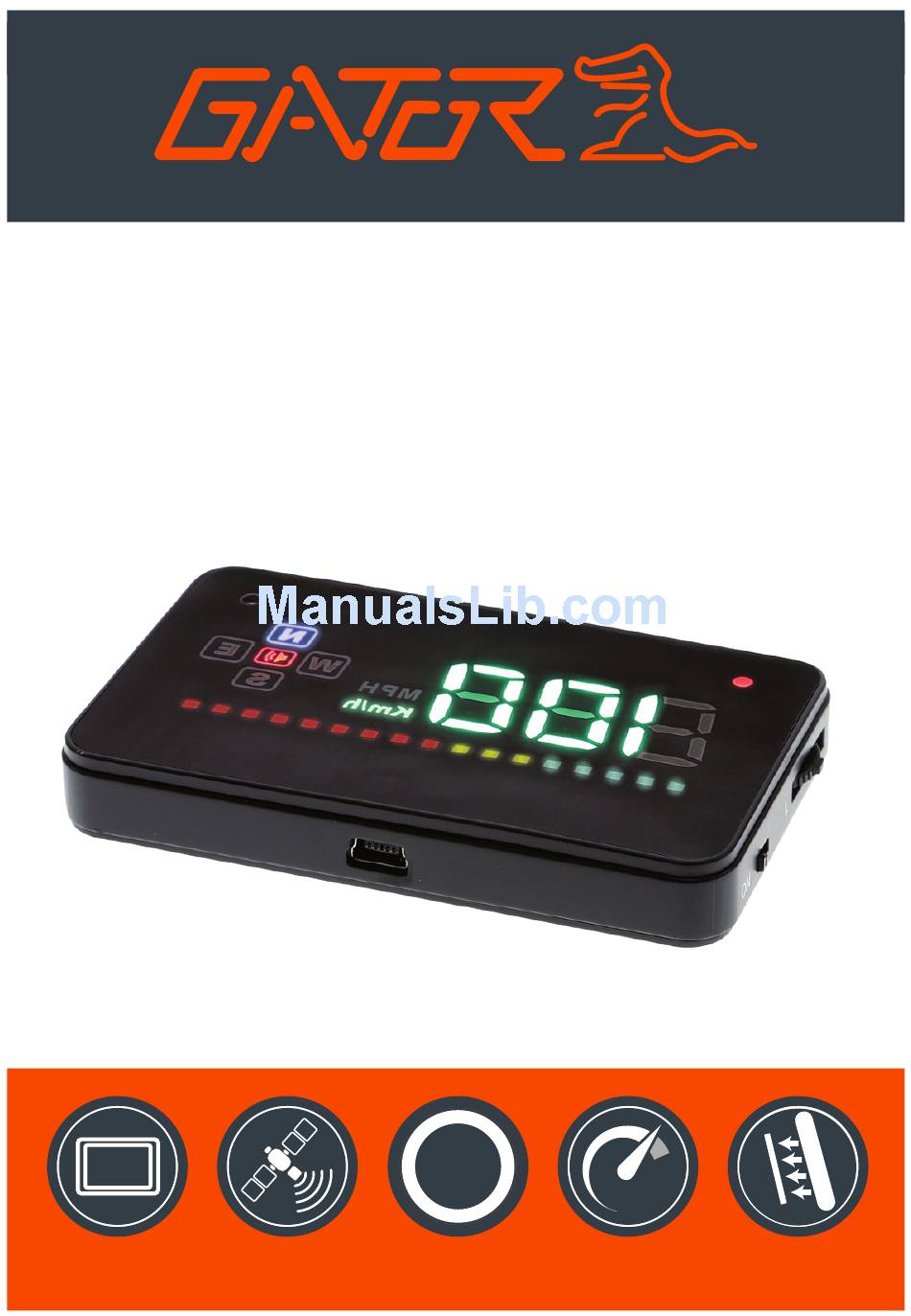

G
HUDGPS
GPS Car speed
Head-up display
Manual
Note: This manual is considered correct at time of printing but is subject to change.
For latest manuals and updates refer to the website.
www.gatordriverassist.com
80
3.5"
Screen Size
GPS
Speed
Speed Alert
Sticky Surface
Mount
!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gator GHUDGPS
Summary of Contents for Gator GHUDGPS
- Page 1 HUDGPS GPS Car speed Head-up display Manual Note: This manual is considered correct at time of printing but is subject to change. For latest manuals and updates refer to the website. www.gatordriverassist.com 3.5” Screen Size Speed Speed Alert Sticky Surface Mount...
- Page 2 Introduction Thank you for purchasing the Gator GHUDGPS Head-Up display. Please ensure that you have read the product manual and instructions in full, prior to installation and use. Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance.
- Page 3 Package components GHUDGPS Head-Up Display Sticky Non-Slip pad 12/24V charging adapter & USB cable Reflective Film...
- Page 4 Product Structure 1. Compass driving directions: N (North), S (South), E (East), W (West) 2. Speed Unit – KM/H – Kilometers per hour, MP/H – Miles per hour 3. Speed indication 4. Satellite signal icon: Light changes from red to green when successfully connected to satellite signal.
- Page 5 Installation of HUD Placing Sticky Non-Slip mat and reflective film 1. Place the provided sticky non-slip mat on the vehicles dash as a base for the HUD. Being easy to remove, its location can also be changed at any time. Position the HUD in the preferred position before applying reflector film.
- Page 6 Wave Button Function: Right Inward Left Enter & change menu settings: Inward long press on the wave button for 5 seconds to enter into the menu settings, inward short press on the wave button to toggle through the menu settings. The speed icons will illuminate on the display for each menu.
- Page 7 HUD settings: The HUD displays data received from GPS satellites. GPS data may differ from the vehicles actual dashboard data. You can enter into the menu settings of the HUD and make fine adjustments in order to match the vehicles dashboard data. Menu Parameters Range Explanation Default...
- Page 8 Menu Parameters Range Explanation Default Display State Adjustment Adjustment Value Speed alarm Second 10-180 when it speed reaches 80 alarm KM/H. Pull L or R on the wave button to adjust the alarm values (speed icon is 3) Pull L or R Brightness on the wave adjustment...
- Page 9 Menu Parameters Range Explanation Default Display State Adjustment Adjustment Value If HUD cannot Start 10-150 power off reference automatically, voltage change it to 132. 132 means 13.2V, and if HUD turns off when driving, change it to 128. 128 means 12.8 V (speed icon is 6) Reset...
- Page 10 Product specifications HUD weight Dimensions 90x54x12mm Satellite positioning time Cold start: 30s, hot start: 1s Speed range 0-400KM Compass precision ±1° Built-in Speaker Alerts USB Interface Mini USB Power source 12/24V Car adaptor USB cable 2.5 Metres Output 1000 mA Light sensor Auto-brightness adjustment...
- Page 11 Troubleshooting guide Under normal operating conditions, if there are problems with the device, please refer to the following methods to resolve. HUD screen without any display, and no power? Check the car charging adaptor and cable is placed firmly in the vehicles charging socket.
- Page 12 Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
