Gator ARV50M Instruction Manual

Gator arv50m 5? mirror reversing camera

ARV50M Instruction Manual

INSTALLATION:

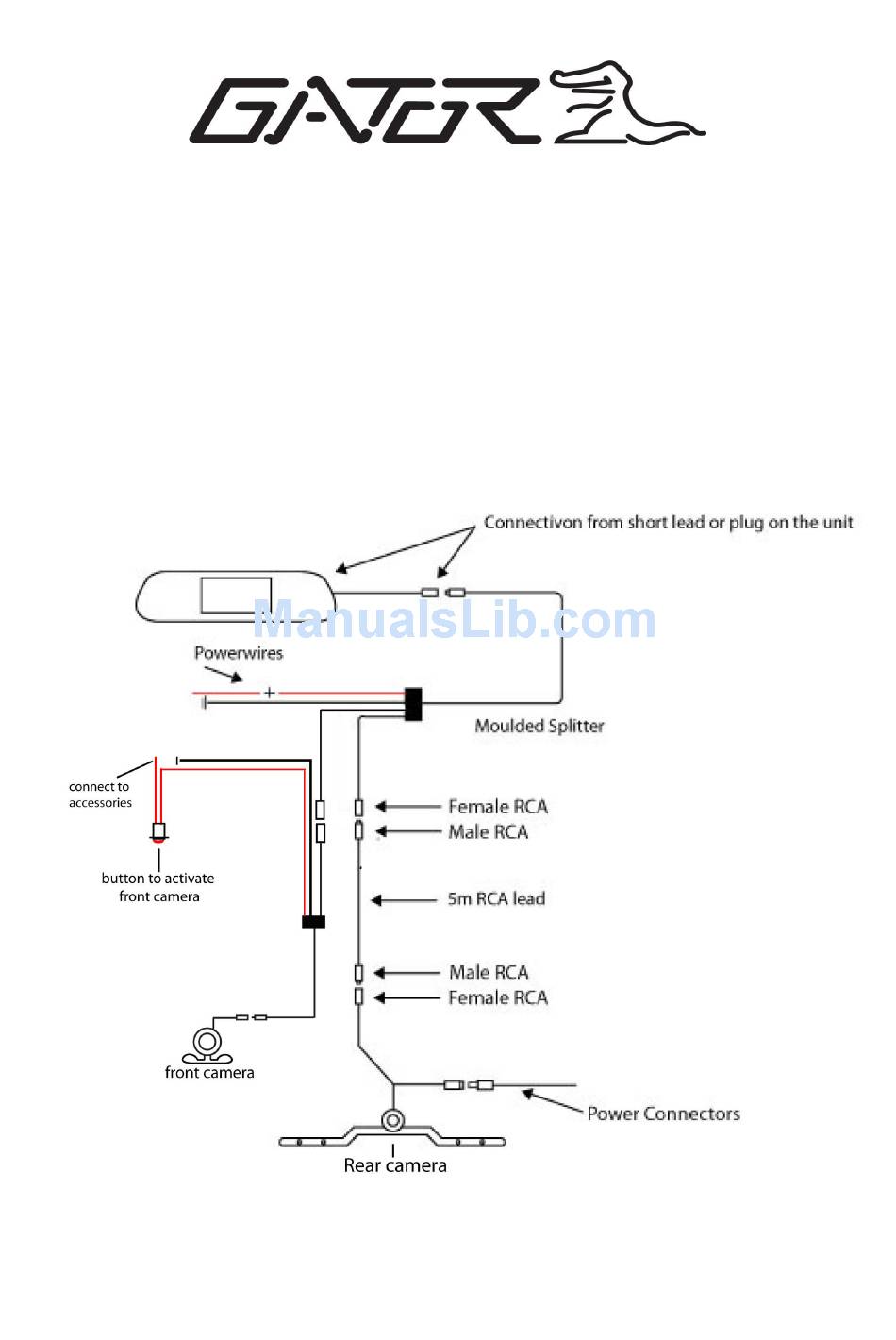

The video signal is transferred from the camera to the monitor via an RCA cable that will need to be

run from the boot through the passenger compartment to the monitors wired loom run under the

dash. From there the power and video signals are sent directly to the monitor. At the rear of the car

the camera is powered directly from the reversing tail light.

Table of Contents

Do you have a question about the ARV50M and is the answer not in the manual?

Page 1 ARV50M Instruction Manual INSTALLATION: The video signal is transferred from the camera to the monitor via an RCA cable that will need to be run from the boot through the passenger compartment to the monitors wired loom run under the dash.
Page 2 INSTALLING THE CAMERA In most instances, the camera is best mounted above the vehicles license plate as shown here. Where this is not possible there are other camera combinations that will suit your individual application. When mounting the camera, make sure that the camera does not cover any part of the license plate.
Page 3 Rear Camera and monitor: 1. Connect the RED wire of the Cameras Power Harness to the wire that supplies power to the reversing light globe (the wire that is energised only when the car is put into reverse). Before making the electrical connection, temporarily disconnect the camera from the power plug whilst making the connection to the back up light.
Page 4 Front Camera: 1. Find a suitable position for front camera, normally in the grille or lower bumper area is an ideal position depending on the design of your vehicle. 2. Once camera is mounted run camera cable through engine bay and towards firewall. Find a grommet at firewall where you can run the camera cable through and into the cabin.
