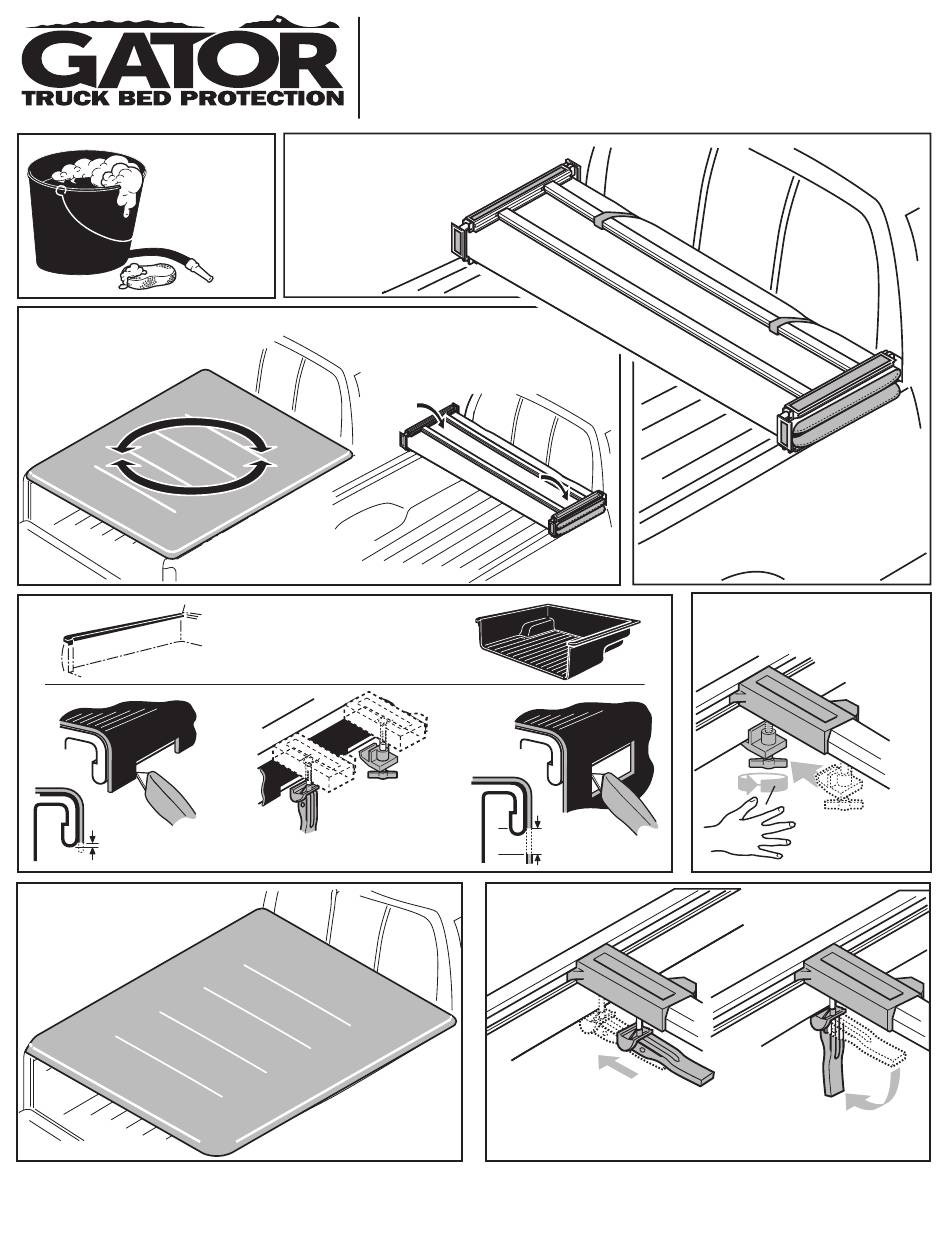

Gator 59201 Installation Manual

Wash truck bed.
3
Unfold the tonneau fully and adjust
position over the truck bed for
proper cab/tail alignment.
4
Trim only enough of the bed cap edge or liner wall so clamp
contacts bottom of metal flange.
6
With tailgate down, completely
open the tonneau cover.
Gator ETX Soft Tri-Fold Tonneau Covers
2303 SE 17th Street, Suite 102, Ocala, FL 34471
TEL: 1-833-336-6121
E-MAIL: etxsoftfold@gatorcovers.com
ETX TRI-FOLD TONNEAU INSTALLATION GUIDE
The Gator ETX Tri-Fold comes fully assembled.
NOTE any damaged or missing parts?
Parts will be shipped to you directly. Cal l: 1-833-336-6121, MON - FRI, 8:30 AM - 7 PM EST
1 2
Place assembled tonneau over cab
end of truck box.
If your truck has a bed cap or bedliner that covers
the metal bed flange, you will need to remove
enough so that all the clamps make solid contact.
Carefully refold the tonneau
without shifting its position on
the truck bed.
100mm
7
Slide rear clamps
out to bed flange
and position under
bottom edge of bed
flange.
5
Ensure clamp is positioned under bed
flange. Hand tighten until clamp contacts,
then tighten an additional two turns.
Do not secure to only lip
of bedliner or wall cap.
Do Not Use Wrench or
Overtighten!
Pull clamp lever
down to secure
against bed flange
