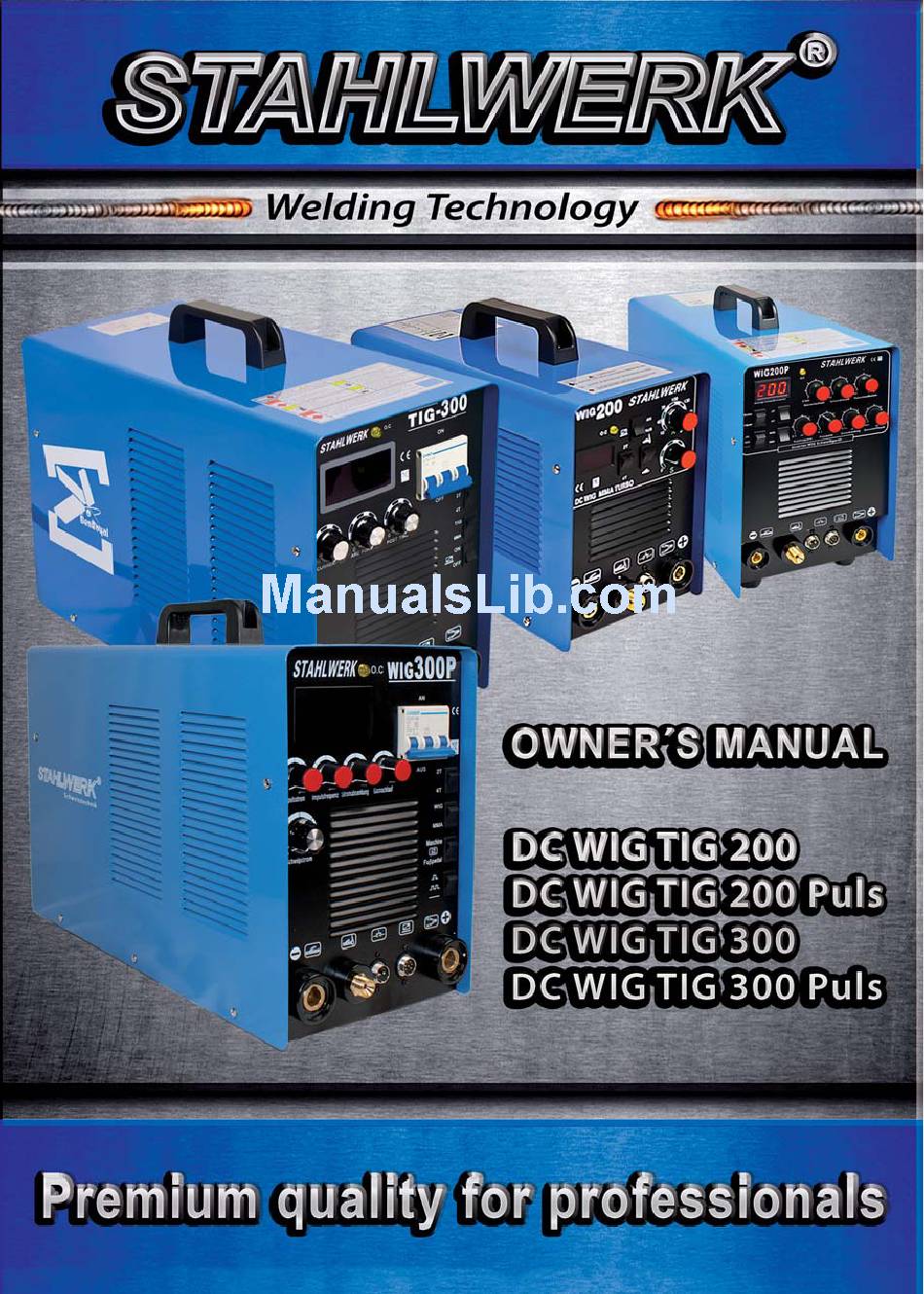

- Page 2 Warnings! During the cutting and welding operation you will probably face with following major risks. Please read these instructions carefully before using the TIG 200 / TIG 200 Puls TIG 300 / TIG 300 Puls devices. Safety Warning! On the process of welding or cutting, there will be possibilities of injury. Please take protection into consideration during operation.
- Page 3 TIG pulse function increases the welding precision (at TIG 200 Puls & TIG 300 Puls) Stahlwerk welding devices serie TIG 200/300 offers the highest welding comfort in the vehicle, machinery, plant -and metal tool, with stair and balcony railings, pipes, tanks, appliances, car bodies, etc...
- Page 4 Precision metering with TIG pulse function (only TIG 200 Puls & TIG 300 Puls) The increased arc stability provides better welding precision. Thanks to this pulse functions, you can deeper weld in the workpiece (10 mm) without it ever gets too hot.
- Page 5 A red indicator light turns on and turns off when the device is cooled down again.. Foot pedal: to regulate the .welding current Panel description STAHLWERK TIG 200 Overheating protection Überhitzungsschutz Welding current...
- Page 6 Connection description STAHLWERK TIG 200 Connection for ground holder Connection electrode holder Connection hose assembly Power supply hose assembly Ground screw Gas connection Switch on /off Connection foot pedal...
- Page 7 Panel description STAHLWERK TIG 200 Puls Digital display Overheat protection Gas pre flow Welding current Switch on foot pedal Puls current regulator Switching 2-stroke / 4 stroke Regulator gas post flow Regulator current reduction Puls range regulator Puls frequency regulator...
- Page 8 / 4 stroke Switching TIG / MMA Switch on foot pedal Arc Force current regulator Regulator gas post flow Current regulator Panel description STAHLWERK TIG 300 Puls Overheat protection Digital display Switch on /off Switching 2- stroke / 4 stroke...
- Page 9 Installation instruction / Commissioning Please connect before switching the device on the ground clip and the TIG tube package to the given connections (see illustration). If you want to welding electrodes, connect the electrode clamp to the given connector Important: Switch the toggle to TIG or MMA welding. TIG welding: You need a cylinder of argon gas Model 4.6.
- Page 10 Composition TIG-torch Zusammensetzung: Nr. 1 screw in Nr. 2 + 4 fit together Nr. 2 + 4 pt together in Nr. 1 Nr. 5 or Nr. 6 screw in 1 = Collet housing Nr. 3 over Nr. 1 screw in 2 = Clamping sleeve Important the tungsten electrode 3 = Gas nozzle...
- Page 11 Tungsten electrode – color code: Color code green only Aluminium Universal for all materials. Disatvantage by Aluminium = is noit formed Color code gray kallote Commissioning MMA welding Important: switch toggle to MMA welding. Before switching on the device connect the ground clamp and electrode holder. Plug the power cable to a one with 230 V and 16 ampere protection socket.
