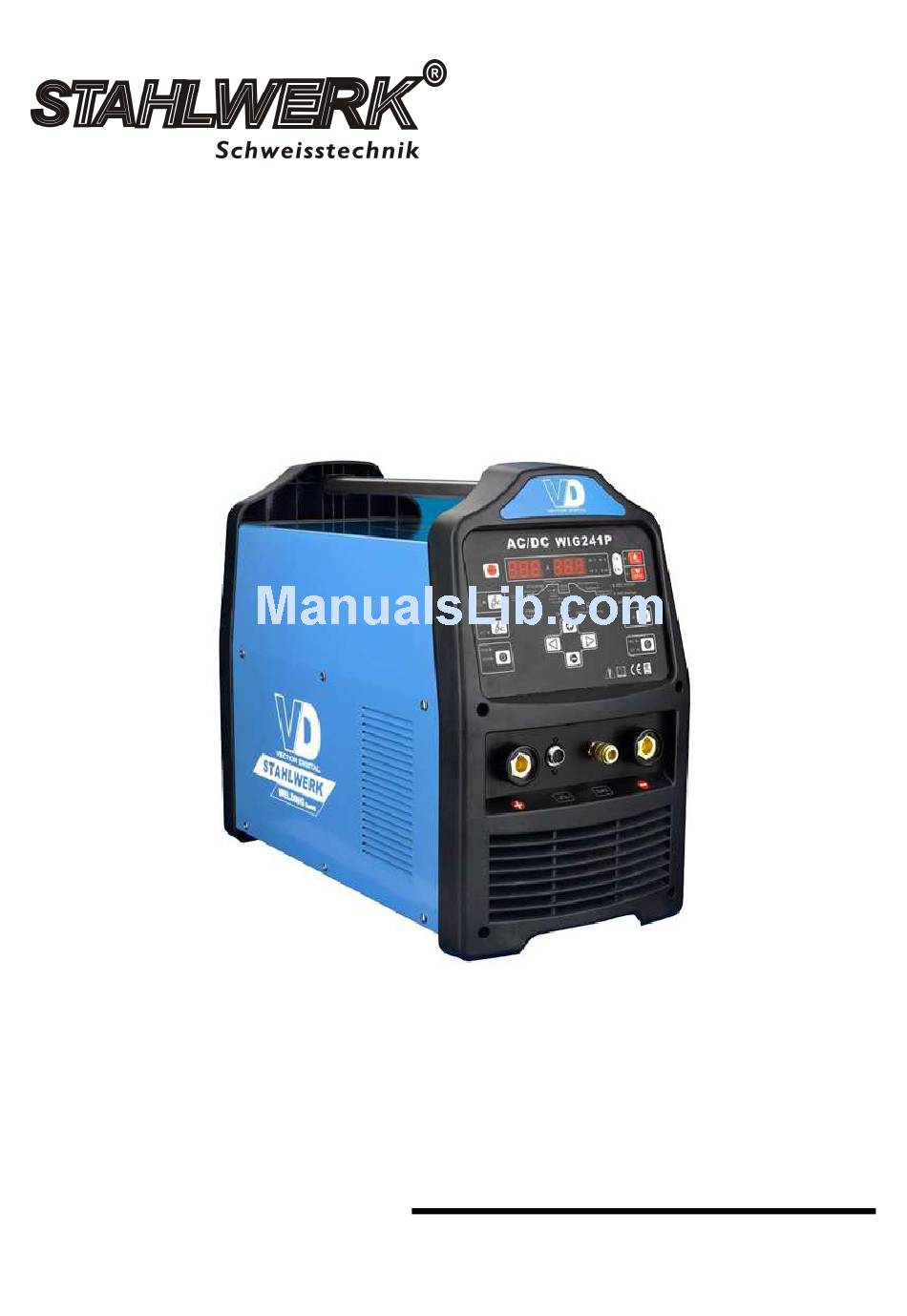

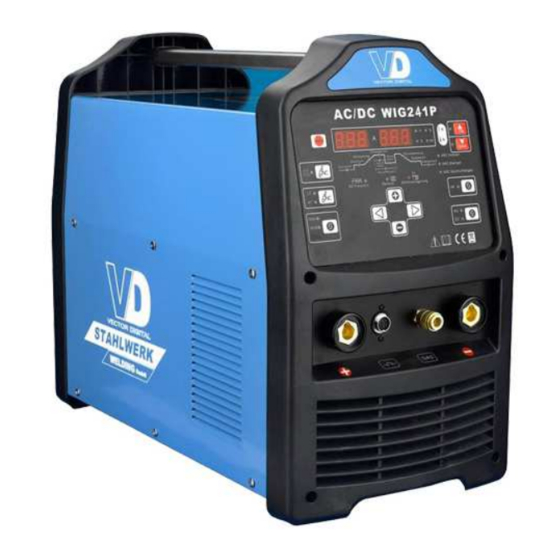

- Page 1 VECTOR DIGITAL MANUAL Digital seriers— AC/DC WIG241P ENG ver. 1.3 2013-03-23...
-
Page 2: Table Of Contents
ADDRESS: 3F,Building 11, Heng Ming Zhu Science and Technology Park, Xin Qiao Tong Fu Yu Industrial Zone, Sha Jing Street , Bao An District, ShenZhen City Tel：0755-23107730 SWEDEN authorized distributor: Stahlwerk - SW Svetsteknik AB Postadress: Hästhovsstigen 1, 296 34 ÅHUS, SWEDEN Lager och leveranser: Boställsgatan 6, 28832 VINSLÖV, SWEDEN Tel: 044-2531310 (mån-tor 10-17, torsdag 13-17, fre-sön 10-16, lunch normalt 12-13) -
Page 3: Specifications
OPERATION AND ATTENTION Specifications Model AC/DC WIG-241P Parameters Input voltage(V,Hz) AC230±15%, 50/60 Input power capacity(KVA) No-load loss(W) Duty cycle(%) Power factor 0.93 Efficiency(%) Insulation class Protection IP21 Accessories Weight（Kg） Machine weight (Kg) Dimension(mm) 630x380x520 Tig-welding Arc-welding Input current（A） 20.7 32.2 Rate output current（A）... -
Page 4: Power Source Controls Indicators And Features
OPERATION AND ATTENTION 9.01 Power Source Controls ,Indicators and Features 12 13 14 15 16 RESET button Pulse indicator Pulse button 2T indicator 4T indicator A C / D C W I G 2 2T/4T Cycle choose button J O B R E S S c h w e i s tr o m β... - Page 5 OPERATION AND ATTENTION 9.02 Power Source Controls ,Indicators and Features 39 41 43 44 45 46 37 38 β Schwei strom Stromanstieg Stromabsenkung Impuls ARC Hotstart strom β Startstrom Schlu strom Impuls Gasvorlauf Gasnachlauf weite ARC Startzeit Impulsfrequenz ü ARC Spr hlichtbogen AC Frequenz Remote Stromverlagerung...
-
Page 6: Introduction For The Machine
6) Put the loop cable plug to the fastening socket,and tighten clockwise ,another terminal holds AC/DC WIG241P can be used in welding and the work piece. cutting of mild steel, stainless steel, alloy steel, copper and other color metal .It has lightness, high... - Page 7 OPERATION AND ATTENTION Power supply 2 0v Handle Cylinder Connect A C / D C P L A S M A W I G 2 5 1 P grounding J O B R E S S c h w e i s tr o m β...
-
Page 8: Operation
OPERATION AND ATTENTION 9.04 OPERATION 9.05 QUESTION Please refer to the WIG or PLASMA machine 1 . TIG welding function manul. 1） Turn on the power switch at the back panel, digital current meter is normal, fan begins to wheel. 2）... -
Page 9: Power Souce Problems
PROBLEMS/SERVICE 9.06 Power Source Problems NOTE If user wants to operate machine as following, the operator must be a personnel in a specific field of electricity and safety and hold the relevant certificate that proves there ability and knowledge. Before maintenance, contact with our company for authorization is suggested. - Page 10 19. Maybe it is over current protection, please close machine first, then open the machine again after abnormal indicator is out of work. 20. Maybe it is overheated protection, wait for 2-3 minutes (argon-arc welding does not has overheated protection 6.Abnormal indicator is on, there is no output.
