G9SX
USER'S GUIDE

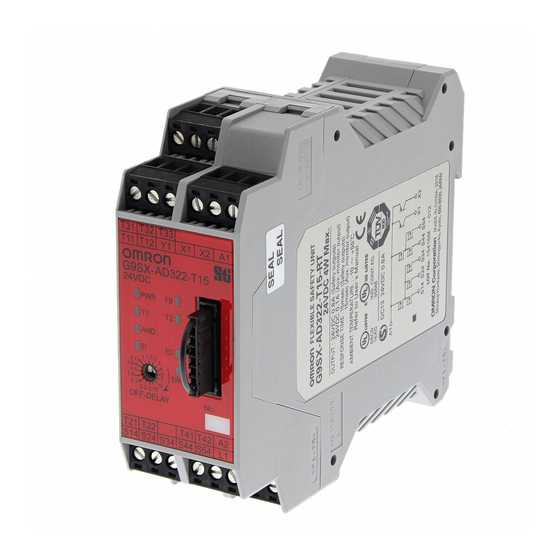

G9SX
G9SX-NS
G9SX-GS
Flexible Safety Unit
Non-Contact Door Switch Controller
Safety Guard Switching Unit
Cat.No. Z255-E1-01
