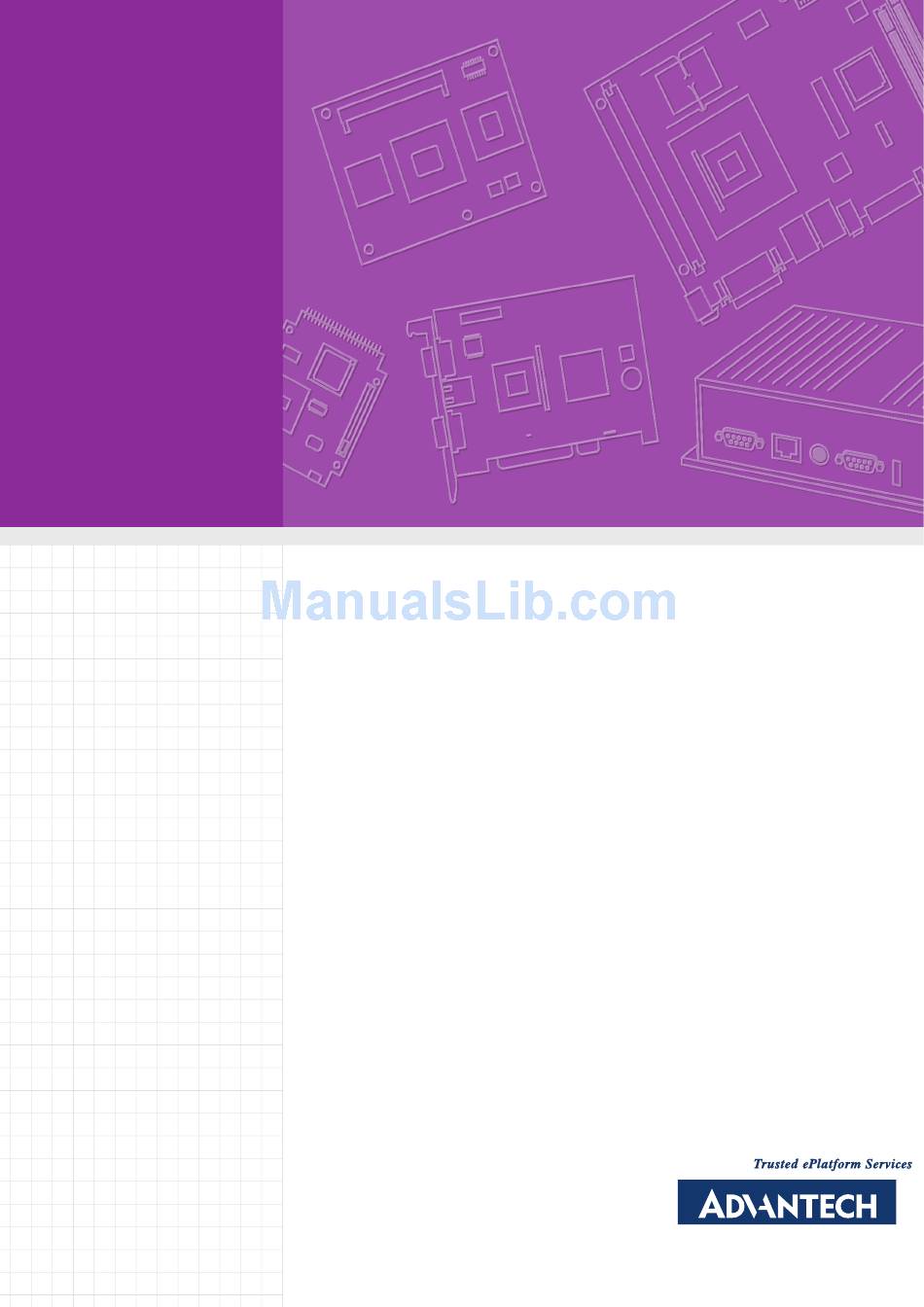

- Page 1 User Manual PCE-7214 ® Dual Socket 771 Intel Quad-Core/Dual-Core ® Xeon Processor Card with PCI Express / VGA / Dual Gigabit LAN / FSB 1333 MHz...
- Page 2 The documentation and the software included with this product are copyrighted 2010 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.
- Page 3 Whether your new Advantech equipment is destined for the labo- ratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Advantech has come to be known.
- Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 5 It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the PCE-7214, check it for signs of shipping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifica- tions, notify our service department or your local sales representative immediately.
- Page 6 Caution! There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer's instructions. PCE-7214 User Manual...
-
Page 7: Table Of Contents
Introduction ..................... 12 IDE Connector (IDE1) ................12 Figure 2.1 PCE-7214 IDE1 location........... 12 Floppy Drive Connector (FDD1).............. 13 Figure 2.2 PCE-7214 FDD1 location ......... 13 Parallel Port (LPT1)................. 14 Figure 2.3 PCE-7214 LPT1 location .......... 14 VGA Connector (VGA1) ................15 Figure 2.4 VGA Connector (VGA1) ........... - Page 8 Advanced Chipset Settings..............38 Figure 3.14Advanced Chipset Settings ........38 Figure 3.15Souh bridge configuration ........38 Exit Option ....................39 Figure 3.16Exit option..............39 3.8.1 Save changes and exit ............... 39 3.8.2 Discard changes and exit ............40 PCE-7214 User Manual viii...
- Page 9 External Keyboard/Mouse Pin Header (KBMS2) ........70 Table B.7: External Keyboard/Mouse Pin Header (KBMS2..70 CPU Fan Power Connector (CPUFAN1,CPUFAN2)....... 70 Table B.8: CPU Fan Power Connector (CPUFAN1,CPUFAN2) 70 Power LED and Keyboard Lock Connector (JFP3 / PWR_LED & KEY LOCK) ..................... 70 PCE-7214 User Manual...
- Page 10 Table B.21:1st MB memory map ..........75 B.22 PCI Bus Map................... 76 Table B.22:PCI bus map............. 76 Appendix C Programming the GPIO and Watchdog Timer ..........77 Supported GPIO Register ............... 78 C.1.1 GPIO Registers................78 C.1.2 GPIO Example program-1 ............79 PCE-7214 User Manual...
-
Page 11: Chapter 1 Hardware Configuration
Chapter Hardware Configuration... -
Page 12: Introduction
The PCIe lanes from PCE-7214 north bridge can be flexibly configured as PCIe x16, x 8 or x4 ports, plus four PCIe x 1 lanes from the south bridge, the PCE-7214 can be used with all Advantech PCE-5000 and PCE-7000 series backplanes for utilizing PCIe x16, x8, x4 and x 1 add-on cards. -
Page 13: Features
RAM: Up to 32 GB in four 240-pin DIMM sockets. Supports Dual-channel DDR2 533/667 MHz (ECC Registered DIMM). Note! PCE-7214 is NOT compatible with DDR2 memory modules that DO NOT have ECC and register functions. I.E., DDR2 memory modules MUST have ECC and register functions. -
Page 14: Input/Output
High Definition Audio: PCE-7214 can provide audio function with the optional audio extension module PCA-AUDIO-HDA1E USB ports: PCE-7214 supports up to 12 USB 2.0 ports with transmission rates up to 480Mbps; 8 USB ports on the CPU card, 4 USB ports on the backplane. 1.3.4 Graphic interface ... -
Page 15: Jumpers And Connectors
Jumpers and Connectors Connectors on the PCE-7214 single board computer link it to external devices such as hard disk drives and a keyboard. In addition, the board has a number of jumpers used to configure your system for your application. -
Page 16: Board Layout: Jumper And Connector Locations
Board Layout: Jumper and Connector Locations Figure 1.1 Jumper and Connector locations PCE-7214 User Manual... -
Page 17: Pce-7214 Block Diagram
PCE-7214 Block Diagram Figure 1.2 Block Diagram PCE-7214 User Manual... -
Page 18: Safety Precautions
System Memory The PCE-7214 has four sockets for 240-pin dual inline memory modules (DIMMs) in two separated memory channels. It can operate with single channel or dual channel modules. We recommend using dual channel mode to provide optimized perfor- mance. -
Page 19: Processor Installation
Owing to a limitation of the Intel E5100 chipset, when you only use sin- gle CPU on the PCE-7214, the CPU has to be installed in the CPU1 socket. Otherwise the system cannot boot up normally. Warning! Without a fan or heat sink, the CPU will over-heat and cause damage to both the CPU and the single board computer. -
Page 20: Cpu Cooler Installation
1.11 CPU Cooler Installation Please ensure that the CPU cooler included with the PCE-7214 is installed as fol- lows: Note! Purchasing PCE-7214's proprietary CPU cooler(s) from Advantech is a must. Other brands of CPU coolers are NOT compatible with PCE-7214. -
Page 21: Chapter 2 Connecting Peripherals & Jumper Settings
Chapter Connecting Peripherals & Jumper Settings... -
Page 22: Introduction
IDE1 Figure 2.1 PCE-7214 IDE1 location You can attach up to two IDE (Integrated Drive Electronics) drives to the PCE-7214's built-in controller. The primary connector can accommodate two drives. Wire number 1 on the cable is red or blue and the other wires are gray. Connect one end to connector IDE1 on the single board computer. -
Page 23: Floppy Drive Connector (Fdd1)
FDD1 Figure 2.2 PCE-7214 FDD1 location You can attach up to two floppy disk drives to the PCE-7214's on board controller. You can use 3.5" (720 KB, 1.44 MB) drives. The single board computer comes with a 34-pin daisy-chain drive connector cable. -
Page 24: Parallel Port (Lpt1)
The parallel port is normally used to connect the single board computer to a printer. The PCE-7214 includes an onboard parallel port, accessed through a 26-pin flat- cable connector, LPT1. The card comes with an adapter cable which lets you use a traditional DB-25 connector. -
Page 25: Vga Connector (Vga1)
COM1 Figure 2.5 Serial Ports (COM1, COM2) The PCE-7214 offers two serial ports COM1 and COM2. These ports can connect to serial devices, such as a mouse or to a communications network. The IRQ and address ranges for all ports are fixed. However, if you want to disable the port or change these parameters later, you can do this in the system BIOS setup. -
Page 26: Ps/2 Keyboard/Mouse Connector (Kbms1)
External Keyboard Pin Header (KBMS2) KBMS2 Figure 2.7 External Keyboard Connector (KBMS2) In addition to the PS/2 mouse/keyboard connector on the PCE-7214's rear plate, there is also an extra onboard external keyboard pin header. This gives system inte- grators greater design flexibility. -
Page 27: Cpu Fan Connectors (Cpufan1, Cpufan2)
If a fan is used, these connectors support cooling fans of 12V/1A (12W) or less. 2.10 Front Panel Connectors (JFP1, JFP2, JFP3) Page JFPX Figure 2.9 Front Panel Connectors (JFP1, JFP2, JFP3) There are several external switches to monitor and control the PCE-7214. JFP1 PWR_SW RESET HDDLED... -
Page 28: Atx Soft Power Switch (Jfp1 / Pwr_Sw)
External speaker (JFP2 / SPEAKER) (JFP2 / SPEAKER) is a 4-pin connector for an external speaker. If there is no exter- nal speaker, the PCE-7214 provides an onboard buzzer as an alternative. To enable the buzzer, set pins 3-4 as closed. -
Page 29: Hw Monitor Alarm (Jobs1) / Watch Dog Timer (Jwdt1) / Infrared (Jir1)
2.11.2 Watchdog timer output (JWDT1) The PCE-7214 contains a watchdog timer that will reset the CPU in the event the CPU stops processing. This feature means the PCE-7214 will recover from a soft- ware failure or an EMI problem. The JWDT1 jumper settings control the outcome of what the computer will do in the event the watchdog timer is tripped. -
Page 30: Dual Giga Lan Rj45 Connector (Lan12)
PCE-7214 uses the Intel 82566DM/82573V Gigabit LAN chips are linked to dedi- cated PCIe x1 lanes. PCE-7214 provide high throughputs for heavy loading network- ing environment. It provides two RJ-45 connectors in the rear side and is convenient for most industrial applications. -
Page 31: Serial Ata Interface (Sata1 ~ Sata6)
SATA 1~6 Figure 2.14 Serial ATA interface (SATA1 ~ SATA6) In addition to the EIDE interface (up to two devices), the PCE-7214 features a high performance serial ATA interfaces (up to 300 MB/s) that eases cabling to hard drives with thin and long cables. These six port can be configured as RAID 0, 1, 5, 10 modes. -
Page 32: Gpio Header (Gpio1)
2.16 GPIO header (GPIO1) GPIO1 Figure 2.16 GPIO header (GPIO1) PCE-7214 provides 14-Pins pin header for Digital I/O usage. Refer to Appendix B for detailed information on the pin assignments and programming guide in Appendix B. 2.17 CMOS clear (CMOS1) The PCE-7214 single board computer contains a jumper that can erase CMOS data and reset the system BIOS information. -
Page 33: Ami Bios Setup
Chapter AMI BIOS Setup... -
Page 34: Figure 3.1 Setup Program Initial Screen
The Setup program uses a number of menus for making changes and turning the special features on or off. This chapter describes the basic navigation of the PCE-7214 setup screens. Figure 3.1 Setup program initial screen AMI's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. -
Page 35: Entering Setup
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. PCE-7214 User Manual... -
Page 36: Advanced Bios Features Setup
Advanced BIOS Features Setup Select the Advanced tab from the PCE-7214 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>... -
Page 37: Cpu Configuration
This item specifies the Execute Disable Bit Feature. The settings are Enabled and Disabled. The Optimal and Fail-Safe default setting is Enabled. If Disabled is selected, the BIOS forces the XD feature flag to always return to 0. PCE-7214 User Manual... -
Page 38: Ide Configuration
AHCI is a new interface specification that allows the SATA controller driver to support advanced features. While entering setup, BIOS auto detects the presence of AHCI devices. This displays the status of auto detection of AHCI devices. PCE-7214 User Manual... -
Page 39: Super I/O Configuration
3.3.3 Super I/O configuration Figure 3.6 Super I/O configuration PCE-7214 User Manual... -
Page 40: Hardware Health Function
Enable/Disable the onboard hardware monitor controller. If this option is enabled, the BIOS and OBS utility can get the system board's health information from hardware monitor controller. Chassis Intrusion Enable/Disable the Chassis Intrusion monitoring function. When the case is opened, the buzzer beeps. PCE-7214 User Manual... -
Page 41: Apm Configuration
Suspend Time Out Enter Suspend after the specified time. Throttle Slow Clock Ratio Select the duty cycle in throttle mode. Keyboard & PS/2 Mouse When you set this to Monitor, you can monitor the PS/2 keyboard and mouse ports. PCE-7214 User Manual... -
Page 42: Figure 3.9 Configure Remote Access Type And Parameters
Sets the flow control for console redirection, available options are “None”, ”Hard- ware” and “Software”. Redirection After BIOS POST Sets the redirection mode after the BIOS Power On Self Test (POST), available options are “Disabled", "Boot Loader” and “Always”. PCE-7214 User Manual... -
Page 43: Pci/Pnp Setup
Delay”, “Delay 1~4 Second(s)”. PCI/PNP Setup Select the PCI/PnP tab from the PCE-7214 setup screen to enter the Plug and Play BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlight- ing it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this section. - Page 44 Available: Specified DMA is available to be used by PCI/PnP devices. – Reserved: Specified DMA is reserved for use by legacy ISA devices. – Reserved Memory Size: Size of memory block to reserve for legacy ISA devices. PCE-7214 User Manual...
-
Page 45: Boot Setup Utility
Boot Setup Utility Figure 3.11 Boot setup utility PCE-7214 User Manual... -
Page 46: Figure 3.12Boot Setting Configuration
Wait For ‘F1' If Error: Wait for the F1 key to be pressed if an error occurs. Hit ‘DEL' Message Display: Displays "Press DEL to run Setup" in POST. 1st Boot Device: Set the device for 1st boot priority. PCE-7214 User Manual... -
Page 47: Security Setup
Security Setup Figure 3.13 Password configuration Select Security Setup from the PCE-7214 Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>:... -
Page 48: Advanced Chipset Settings
Advanced Chipset Settings Figure 3.14 Advanced Chipset Settings Figure 3.15 Souh bridge configuration PCE-7214 User Manual... -
Page 49: Exit Option
BIOS setup and reboot the computer so the new system configuration parameters can take effect. Select Exit Saving Changes from the Exit menu and press <Enter>. The follow- ing message appears: Save Configuration Changes and Exit Now? [Ok] [Cancel] Select Ok or Cancel. PCE-7214 User Manual... -
Page 50: Discard Changes And Exit
3.8.3 Load optimal defaults The PCE-7214 automatically configures all setup items to optimal settings when you select this option. Optimal Defaults are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the Opti- mal Defaults if your computer is experiencing system configuration problems. -
Page 51: Chapter 4 Chipset Software Installation Utility
Chapter Chipset Software Installation Utility... -
Page 52: Before You Begin
Before you Begin To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the PCE-7214 are located on the software installation CD. The Intel Chipset Software Installation Utility is not required on any systems running Windows NT 4.0. -
Page 53: Driver Setup
INF" then click "Setup.exe". A message pops up telling you to install the CSI util- ity before other device drivers. Windows XP is used as an example in the follow- ing steps. Click "Next" when you see the following message. PCE-7214 User Manual... - Page 54 Click “Yes” when you see the following message. Click “Next” when you see the following message. PCE-7214 User Manual...
- Page 55 When the following message appears, click “Finish” to complete the installation and restart Windows. PCE-7214 User Manual...
- Page 56 PCE-7214 User Manual...
-
Page 57: Chapter 5 Graphic Setup
Chapter Graphic Setup... -
Page 58: Introduction
See Chapter 4 for information on installing the CSI util- ity. Insert the driver CD into your system's CD-ROM drive. Select the folder "2_VGA" then click the XGIRun.exe ICON, then the installation process will be automatically finished. PCE-7214 User Manual... -
Page 59: Chapter 6 Lan Configuration
Chapter LAN Configuration... -
Page 60: Introduction
Introduction The PCE-7214 has a single/dual Gigabit Ethernet LAN interface (Intel 82566DM and 82573V) that is connected to a dedicated PCIe x1 link to eliminating network bottle- necks by offering a bandwidth of up to 500 MB/s. Features Integrated 10/100/1000Base-T transceiver ... -
Page 61: Win Xp Driver Setup (Lan)
Insert the driver CD into your system's CD-ROM drive. Selecting the folder "3_LAN" then click the proper LAN driver for the OS. Windows XP is used as an example in the following steps. You will see a welcome window. Click "Next" to continue the installation. PCE-7214 User Manual... - Page 62 Click “Install Drivers” to start the installation procedure. Click “Yes” to continue the installation. PCE-7214 User Manual...
- Page 63 Select “I accept the terms in the license agreement” and click “Next” to continue. Select “Complete” and click “Next” to continue. PCE-7214 User Manual...
- Page 64 Click “Install” to begin the installation. Click “Finish” to complete the installation. PCE-7214 User Manual...
-
Page 65: Chapter 7 Sata Raid Setup
Chapter SATA RAID Setup... -
Page 66: Introduction
Matrix Storage Manager, please read the "readme.txt" which is in the folder "4_RAID". The driver is in the CD's "RAID" folder. You may go to the directory of the CD and fol- low Intel's installation guide to install the driver and utility. PCE-7214 User Manual... -
Page 67: Appendix A Programming The Watchdog Timer
Appendix Programming the Watchdog Timer... -
Page 68: Watchdog Timer
Watchdog Timer The PCE-7214's watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function after the programmed period. This section describes the operation of the watchdog timer and how to pro- gram it. - Page 69 Unlock W83627UHG Select register of watchdog timer Enable the function of the watchdog timer Use the function of the watchdog time Lock W83627UHG PCE-7214 User Manual...
-
Page 70: Table A.1: Watchdog Timer Registers
Bit 5: Write 1 to generate a timeout signal immediately and automatically return to 0. [default=0] Bit 4: Read status of watchdog timer, 1 means timer is ""time out""." AA (hex) ----- Write this address to I/O port 2E (hex) to lock the watch- dog timer.2 PCE-7214 User Manual... -
Page 71: Example Program
; Set timeout interval as 10 seconds and start counting al,0f6h dx,al al,10 dx,al ;-------------------------------------------------------------------------------- Dec dx ; lock W83627UHG al,0aah dx,al Enable watchdog timer and set 5 minutes as timeout interval ;-------------------------------------------------------------------------------- Mov dx,2eh ; unlock W83627UHG Mov al,87h Out dx,al Out dx,al PCE-7214 User Manual... - Page 72 ; lock W83627UHG al,0aah dx,al Enable watchdog timer to be reset by mouse ;-------------------------------------------------------------------------------- Mov dx,2eh ; unlock W83627UHG Mov al,87h Out dx,al Out dx,al ;-------------------------------------------------------------------------------- Mov al,07h ; Select registers of watchdog timer dx,al al,08h dx,al ;-------------------------------------------------------------------------------- PCE-7214 User Manual...
- Page 73 ; Select registers of watchdog timer dx,al al,08h dx,al ;-------------------------------------------------------------------------------- Dec dx ; Enable the function of watchdog timer al,30h dx,al al,01h dx,al ;-------------------------------------------------------------------------------- Dec dx ; Enable watchdog timer to be strobed reset by keyboard al,0f7h dx,al al,dx Or al,40h dx,al PCE-7214 User Manual...
- Page 74 ; Enable the function of watchdog timer al,30h dx,al al,01h dx,al ;-------------------------------------------------------------------------------- Dec dx ; Generate a time-out signal al,0f7h dx,al ;Write 1 to bit 5 of F7 register al,dx Or al,20h dx,al ;-------------------------------------------------------------------------------- Dec dx ; lock W83627UHG al,0aah dx,al PCE-7214 User Manual...
-
Page 75: Appendix B I/O Pin Assignments
Appendix I/O Pin Assignments... -
Page 76: Ide Hard Drive Connector (Ide1)
DATA 15 SIGNAL GND DISK DMA REQUEST IO WRITE IO READ IO CHANNEL READY CSEL HDACKO* IRQ14 IDSC16- ADDR 1 PDIAG ADDR 0 ADDR 2 HARD DISK SELECT 0* HARD DISK SELECT 1* IDE ACTIVE* * low active PCE-7214 User Manual... -
Page 77: Floppy Drive Connector (Fdd1)
Table B.2: Floppy drive connector (FDD1) Signal Signal FDHDIN* FDEDIN* INDEX* MOTOR 0* DRIVE SELECT 1* DRIVE SELECT 0* MOTOR 1* DIRECTION* STEP* WRITE DATA* WRITE GATE* TRACK 0* WRITE PROTECT* READ DATA* HEAD SELECT* DISK CHANGE* * low active PCE-7214 User Manual... -
Page 78: Parallel Port Connector (Lpt1)
Parallel Port Connector (LPT1) Table B.3: Parallel port connector (LPT1) Signal Signal STROBE* AUTOFD* INIT* SLCTINI* ACK* BUSY SLCT * low active VGA Connector (VGA1) Table B.4: VGA connector (VGA1) Signal Signal GREEN BLUE H-SYNC V-SYNC PCE-7214 User Manual... -
Page 79: Rs-232 Serial Port (Com1,Com2)
RS-232 Serial Port (COM1,COM2) Table B.5: RS-232 serial port (COM1,COM2) Signal PS/2 Keyboard/Mouse Connector (KBMS1) Table B.6: PS/2 keyboard/mouse connector (KBMS1) Signal KB DATA MS DATA KB CLOCK MS CLOCK PCE-7214 User Manual... -
Page 80: External Keyboard/Mouse Pin Header (Kbms2)
Table B.8: CPU Fan Power Connector (CPUFAN1,CPUFAN2) Signal +12V Detect Power LED and Keyboard Lock Connector (JFP3 / PWR_LED & KEY LOCK) Table B.9: Power LED and Keyboard Lock Connector (JFP3 / PWR_LED & KEY LOCK) Function LED power (+5 V) KEYLOCK# PCE-7214 User Manual... -
Page 81: External Speaker Connector (Jfp2 / Speaker)
SPK+ SPK_IN SPK- B.11 Reset Connector (JFP1 / RESET) Table B.11: Reset connector (JFP1 / RESET) Signal RESET # B.12 HDD LED (JFP2 / HDDLED) Table B.12: Reset connector (JFP1 / RESET) Signal IDE LED+ IDE LED- PCE-7214 User Manual... -
Page 82: Atx Soft Power Switch (Jfp1 / Pwr_Sw)
Hi-definition audio Link connector (HDAUD1) Table B.14: Hi-definition audio link connector (HDAUD1) Signal Signal ACZ_VCC ACZ_SYNC ACZ_BITCLK ACZ_SDOUT ACZ_SDIN0 ACZ_SDIN1 -ACZ_RST ACZ_12V B.15 SM Bus Connector (JFP2 / SNMP) Table B.15: SM bus connector (JFP2 / SNMP) Signal SMB_DATA SMB_CLK PCE-7214 User Manual... -
Page 83: Lan1 And Lan2 Led Connector (Lanled1)
Table B.16: LAN1 and LAN2 LED connector (LANLED1) Signal #LAN1_ACT V33_AUX #LAN1_LINK1000 #LAN1_LINK100 V33_AUX #LAN2_ACT V33_AUX #LAN2_LINK1000 #LAN2_LINK100 B.17 GPIO header (GPIO1) Table B.17: GPIO header (GPIO1) Signal GPIO_1 GPIO_5 VCC_GPIO GPIO_2 GPIO_6 GPIO_3 GPIO_7 GPIO_4 GPIO_8 PCE-7214 User Manual... -
Page 84: System I/O Ports
Prototype card 360-36F Reserved 378-37F Parallel printer port 1 (LPT2) 380-38F SDLC, bisynchronous 2 3A0-3AF Bisynchronous 1 3B0-3BF Monochrome display and printer adapter (LPT1) 3C0-3CF Reserved 3D0-3DF Color/graphics monitor adapter 3F0-3F7 Diskette controller 3F8-3FF Serial port 1 PCE-7214 User Manual... -
Page 85: Dma Channel Assignments
1st MB Memory Map Table B.21: 1st MB memory map Addr. range (Hex) Device E0000h - FFFFFh BIOS CC000h - DFFFFh Unused C0000h - CBFFFh VGA BIOS A0000h - BFFFFh Video Memory 00000h - 9FFFFh Base memory PCE-7214 User Manual... -
Page 86: Pci Bus Map
PCI slot 2 AD30 INT C, D, A, B GNT B REQ B PCI slot 3 AD29 INT B, C, D, A GNT C REQ C PCI slot 4 AD28 INT A, B, C, D GNT D REQ D PCE-7214 User Manual... -
Page 87: Programming The Gpio And Watchdog Timer
Appendix Programming the GPIO and Watchdog Timer... -
Page 88: Supported Gpio Register
Extended Function Index Registers (EFIRs) The EFIRs are write-only registers with port address 2Eh or 4Eh on PC/AT systems. Extended Function Data Registers(EFDRs) the EFDRs are read/write registers with port address 2Fh or 4Fh on PC/AT systems. PCE-7214 User Manual... -
Page 89: Gpio Example Program-1
;Set GPIO is normal not inverter OUT DX,AL; MOV DX,4EH MOV AL,F1H OUT DX,AL MOV DX,4FH MOV AL,??H ; Put the output value into AL OUT DX,AL ------------------------------------------------------------ Exit extended function mode | ------------------------------------------------------------ MOV DX,4EH MOV AL,AAH OUT DX,AL PCE-7214 User Manual... - Page 90 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2010...
