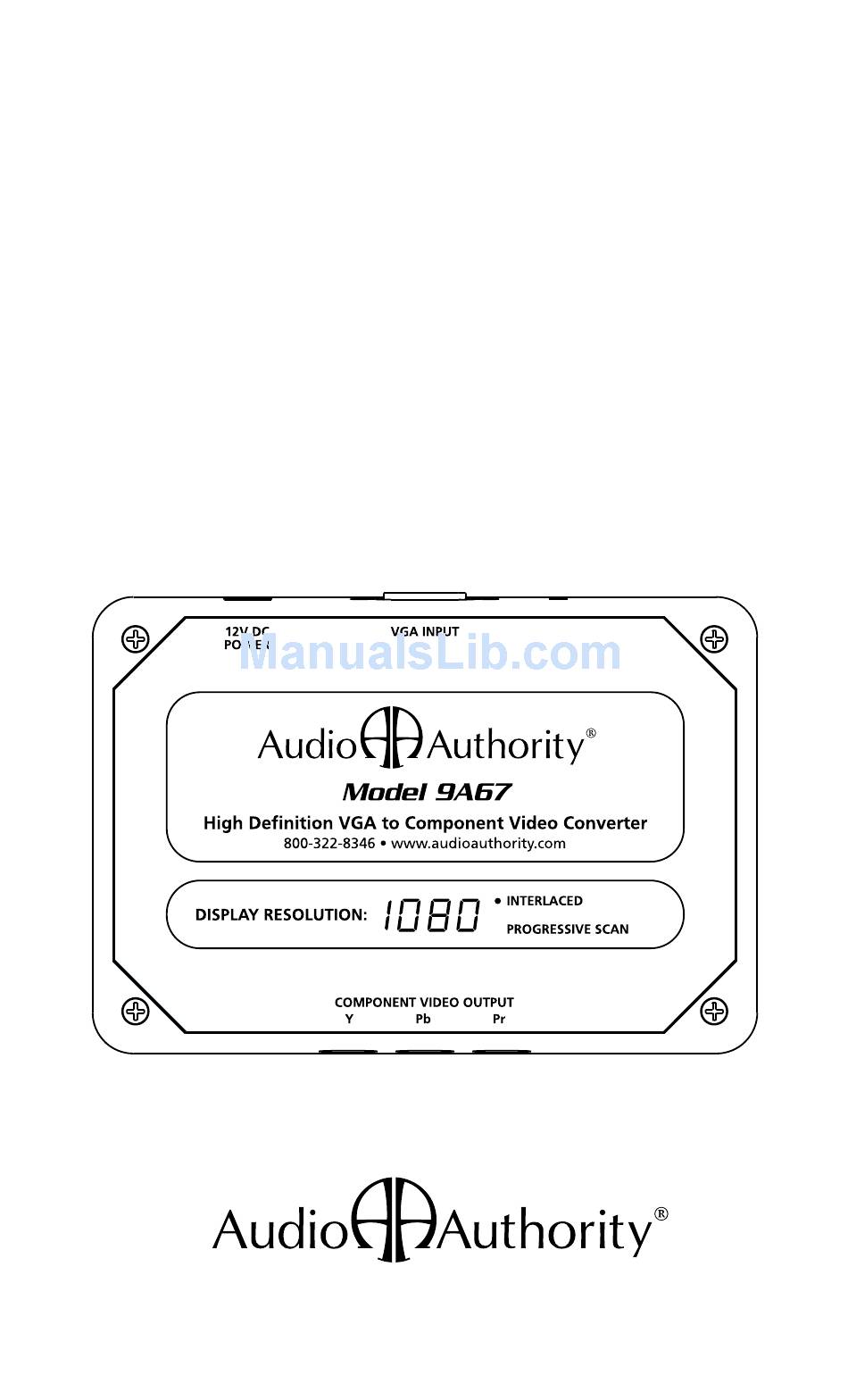

Page 1: User Manual
User Manual Model 9A67 VGA (RGBHV) to Component (YPbPr) Video Signal Converter... -
Page 2: Table Of Contents
Audio Authority reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable. -
Page 3: Introduction
The 9A67 is not a format converter. It passes the horizontal and vertical synchronization timings and pixel content to its outputs without modification. For example, a 720p RGBHV source with a 9A67 will require your HDTV monitor to accept a 720p YPbPr component video input. -
Page 4: Checking Package Contents
3.0 INSTALLATION Connect the 9A67 to the video source using a VGA cable and apply power using the included 12 volt power pack. Connect the output of the 9A67 to the Component Video input jacks of the HDTV. Power up the system and check for a picture. -
Page 5: Troubleshooting
“Err” message. A constant Err message indicates that the 9A67 format detector does not recognize the input format. If the format reported by the 9A67 is not one that your monitor or projector can display, you must change the format being output by the source. -
Page 6: Specifications
• Latptop computers are not recommended for use with the 9A67 because their graphics cards are not usually adequate to drive an HD display. It is recommended to use Model 1365 Mini-scaler instead of the 9A67 for laptop applications. • If the picture on your display is not rendering black correctly, try adjusting the 9A67 horizontal sync output control. -
Page 7: Limited Warranty
Should any consumer product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (ground service only). -
Page 8: Regulatory Compliance
RoHS compliant. 8.0 CONTACT INFORMATION If you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below. Audio Authority Technical Service 800-322-8346 M-F 8:30 AM to 5:00 PM, EST International: 859-233-4599 Fax: 859-233-4510 Send email to: support@audioauthority.com...
