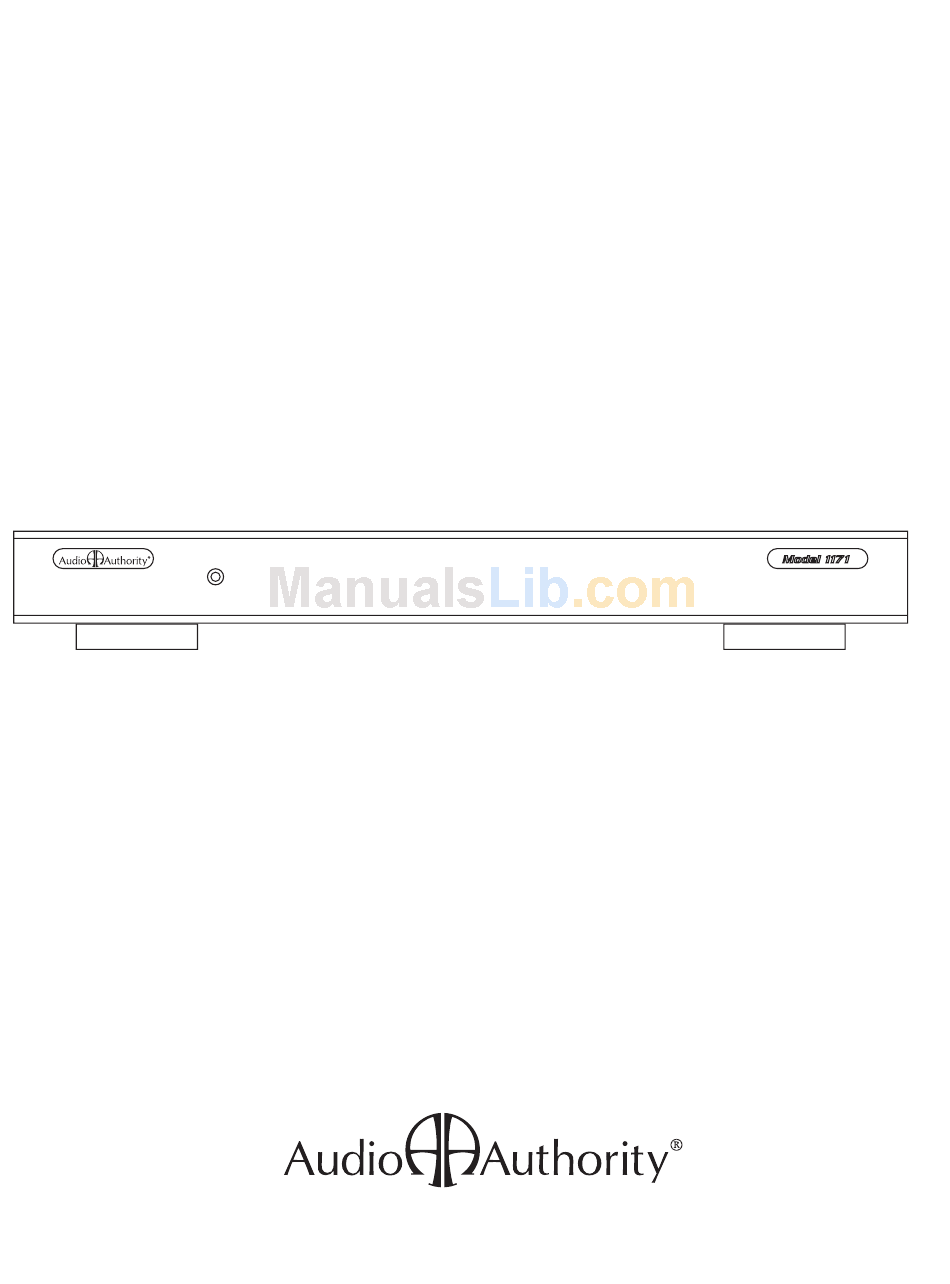

Page 1: Installation And Operation
Installation and Operation HIGH DEFINITION POWER CAT 5 MULTIDRIVER Model 1171 High Definition Cat 5 MultiDriver ™... - Page 2 Installation and Operation Manual Model 1171 High Definition Cat 5 MultiDriver ™ Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority Corp. AutoSelect is a trademark of Audio Authority. Copyright November, 2006, all rights reserved. Audio Authority Corporation Lexington, Kentucky...
-
Page 3: Table Of Contents
• Do not open the cover—there are no user-serviceable parts inside. • Do not expose this unit to excessive heat. • Install only in dry, indoor locations. • Clean the unit only with a dry or slightly dampened soft cloth. Audio Authority Model 1171 User Manual... -
Page 4: Getting Started
In conjunction with Model 9878 Wallplates, the Model 1171 provides distribution of audio, video and IR control signals on Cat 5 cable runs of up to 1,000 feet. The buffered Cat 5 bus outputs on the Model 1171 drive from one to six 9878 Wallplates. To expand the Wallplate capacity of the system, up to six Model 1170s may be stacked with one Model 1171, for a total capacity of 42 Wallplates. -
Page 5: Panel Descriptions
Audio Authority Model 1171 User Manual... -
Page 6: Installation
3. Placement. Place the Model 1171 or stack on its shelf or in the rack. If rack mounting, secure the 1171 or stack to the rails with the screws supplied with the rack adapter kits. - Page 7 Output jack and perform no function within the switching system. 8. In Case of Diffi culty. If at any time the 1171 system fails to respond as expected, use the outline on page 8 to fi nd the cause or narrow the possibilities.
-
Page 8: Troubleshooting Guide
The Infrared pathway must be connected to a receiver on the Wallplate end, and a compatible emitter system on the 1171 end. If so equipped, a universal infrared remote may be used to control the source equipment. Ask your installer for specifi c instructions. -
Page 9: Specifi Cations
5.5 X 2.1mm Center + DC Input 18 volts, 1.3 amps * Model 1171 is compatible with most any video format (including most types of computer video) as long as the video format does not exceed the maximum bandwidth of the 1171. -
Page 10: Hookup Diagram
1171 and 1170 Combination Model 1171 Cat 5 MultiDriver provides input connections for an HDTV source such as a satellite box or DVD player, and up to six Wallplate outputs. To expand the number of outputs, up to six 1170 MultiDriver Expanders can be added for a total of 42 outputs. -
Page 11: Limited Warranty
Should any consumer use product manufactured by Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees to replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). - Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859/233-4599 • Fax: 859/233-4510 Customer Toll-Free USA & Canada: 800/322-8346 Website: http://www.audioauthority.com Custom Installer Telephone Number 752-493 12/06...
