Summary of Contents for Audio Authority 1388
-

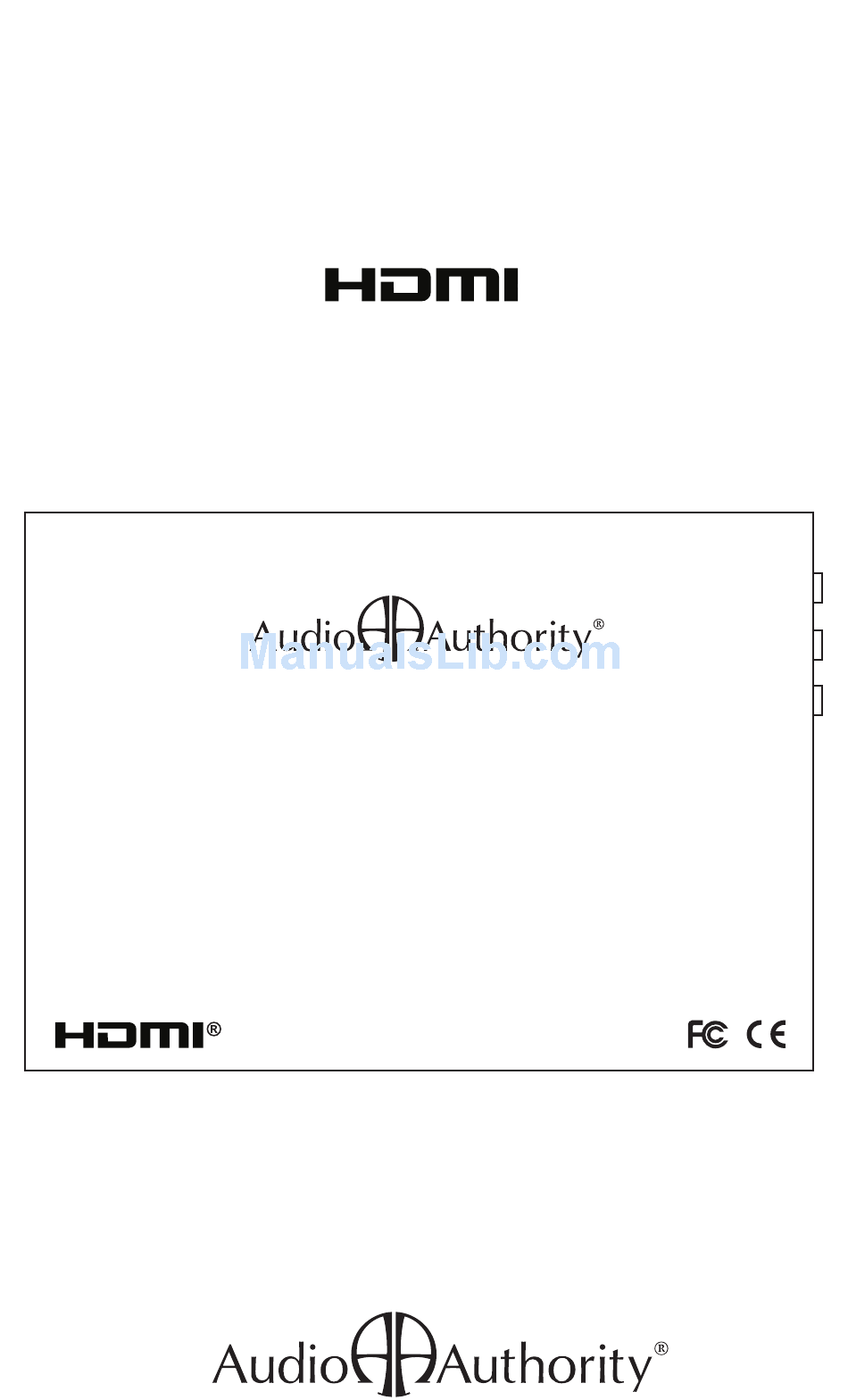

Page 1: User Manual
User Manual DATE LTR REVISION RECORD 9/ 21/10 A Release ® Digital to Digital Video Scaler 800-322-8346 • 859-233-4599 • www.audioauthority.com HDMI to HDMI Scaler Model 1388 Model 1388 Ink Color: White Part Number Part Number Title Title 1388 Date Date Drawing No. - Page 2 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 www.audioauthority.com WARNINGS • Read these instructions before installing or using this product. • To reduce the risk of fire or electric shock, do not expose this unit to rain or mois- ture. • This product must be installed by qualified personnel. • Do not open the cover—there are no user-serviceable parts inside. • Do not expose this unit to excessive heat. • Install only in dry, indoor locations. • Clean the unit only with a dry or slightly dampened soft cloth. LIABILITY STATEMENT Every effort has been made to ensure that this product is free of defects. Audio Authority cannot be held liable for the use of this product or any direct or ® indirect consequential damages arising from its use. It is the responsibility of the user of the product to check that it is suitable for his/her requirements and that it is installed correctly. All rights are reserved. No parts of this manual may be reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording or by any information storage or retrieval system without the written consent of the publisher. Audio Authority reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable. Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority Corp. Copyright July, 2010. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC in the United States and other countries. All other third party trademarks and copyrights are recognized.
-
Page 3: Table Of Contents
User Manual Model 1388 Digital Video Scaler TABLE OF CONTENTS 1.0 INTRODUCTION . . . . . . . . . . . . . . . . . 4 2.0 GETTING STARTED . . . . . . . . . . . . . . . . 5 3.0 CONNECTING THE HARDWARE . . . . . . . . -
Page 4: Introduction
• Maximum I/O resolutions WUXGA and 1080p • Default resolution is 1080p@60Hz • Automatically detects the resolution of the connected display (Native mode) • Accepts 1080p, 1080i, 720p, 480i or 576i input • 50/60Hz frame rate conversion • 3-D Motion Adaptive, 3-D de-interlacing and 3:2 / 2:2 pull-down • OSD (On Screen Display) • Adjustment of contrast, brightness, hue, saturation, sharpness & RGB levels • Supports digital and analog audio input and output • Variable audio delay (up to 150ms) • HDMI 1.2 and HDCP 1.1 compliant 1.2 CHECKING PACKAGE CONTENTS Before connecting the system, please make certain the following items are in the shipping carton. Note: Please retain the original packing material and • 1388 video scaler invoice in case you need to return the unit. If you • 3.5mm to stereo RCA cable find any items are missing, contact Audio Authority immediately. Have the model number and invoice • 5V DC power adapter available for reference when you call. • User manual... -
Page 5: Getting Started
2.0 GETTING STARTED The 1388 automatically detects the resolution of the HDMI source. If the display device or distribution system accepts 1080p signals (1388 default output), no other adjustment may be necessary. The 1388 also has the ability to determine the native resolution of the HDMI display device when in “NATIVE” resolution mode. Although you can manually select an output resolution setting via the OSD (On Screen Display) menu, it is not necessary to set an output resolution. See 4.0 to make adjustments. 2.2 SUPPORTED RESOLUTIONS Resolution Key INPUT VGA@(60/72/75/85Hz) 480p 640 480 HDMI (PC) SVGA@(56/60/72/75/85Hz) XGA@60/70/75/85Hz 576p SXGA@(60/75/85Hz) 720p 1280 UXGA@60Hz 1080i 1920 1080 WXGA@60Hz 1080p 1920 1080 WSXGA@60Hz 576i 640 480 WUXGA@60Hz 480i... -
Page 6: Connecting The Hardware
DC 5V INPUT HDMI AUDIO TOSLINK OUTPUT – MENU HDMI TOSLINK AUDIO 4.0 OPERATING THE UNIT Default output is 1080p to the display. The 1388 Note: The OSD does allows adjustment of video parameters, selection of not appear when input output resolutions, type of audio output and amount signal is not present, of audio delay, etc. Adjustments are made via an On or when the TV cannot Screen Display (OSD) menu. Much of the operation accept the input signal of the scaler is done automatically; however, in resolution. some circumstances an adjustment is needed, usually when the input signals are not presented at standard levels. The menu structure is shown on the opposite page. When you press the Menu button for the first time, you see the menu tier 1 selections. Use the + and – buttons to move up and down the tier 1 selections and press MENU button to either choose a parameter, or enter the adjustment feature of that parameter. Reset Function: To reset the 1388 output resolution to match the source’s native settings, press and hold the MENU button while connecting the DC power supply to the 1388. - Page 7 If there is only one adjustment in tier 2 associated with the parameter, use the + and – buttons to make adjustments. If there is more than one item associated with the parameter, use the + and – buttons to navigate, and press the MENU button to select a parameter. Use the MENU button and + and – buttons to navigate to the menu EXIT. Menu Tier 1 Menu Tier 2 Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT Back to Tier 1 - RED 0 ~ 100 of Red Color Level - GREEN 0 ~ 100 of Green Color Level COLOR - BLUE 0 ~ 100 of Blue Color Level - EXIT Back to Tier 1 SIZE FULL / OVERSCAN / UNDERSCAN NATIVE / VGA / SVGA / XGA / SXGA / SXGA+ WXGA+ / WSXGA / UXGA / WUXGA OUTPUT 480i / 480p / 720p@60Hz / 1080i@60Hz / 1080p@60Hz / 576i / 576p / 720p@50Hz / 1080i@50Hz / 1080p@50Hz - SOURCE...
-
Page 8: Applications
• Test using known good HDMI cables, or try shorter cables. • Verify that the 1388 is set to a resolution supported by the display (1080p). • The resolution from the source must be an acceptable 1388 input resolution. • Poor image quality: Some sources, such as cable and satellite receivers, compress output resulting in poor image quality. Connect the source directly to a display via a short HDMI cable to compare. ® • Intermittent signal dropout: Cable is longer than rated distance for the bandwidth of the source signal. Reduce bandwidth or cable length. • No surround sound (multi-channel audio): adjust the source to output the desired digital audio format, and make certain the destination device is capable of receiving it. (Note: if analog stereo audio output is required, the digital audio input must be set to 2-channel PCM.) • No audio, or no dialogue: If you are using the 1388 analog audio output (3.5mm jack) the source must be set to output 2-channel PCM, not surround sound. Contact Audio Authority Technical Service with questions: 800-322-8346 or support@audioauthority.com. -
Page 9: Specifications
7.0 SPECIFICATIONS HDMI 1x via HDMI connector Resolutions Supported See page 8 Video Adjustments Contrast, brightness, hue, sharpness, saturation, R-G-B levels De-Interlace 3D motion adaptive Pull-Down 3:2 + 2:2 recovery HDMI Compliance v1.2 HDCP Compliance v1.1 DVI Compliance v1.0 Image Component Processing Full time/full range Frame Rate Conversion 50/60Hz Scan Conversion Converts all standard scan formats Analog Stereo 1x via 3.5mm stereo connector Digital 1x SPDIF via Toslink connector Variable Audio Output Delay Off/40ms/110ms/150ms Analog Stereo Input Level 2Vrms Analog Stereo Output Level 1Vrms Toslink Input/Output Level Sampling rate 48KHz 2CH LPCM Analog Stereo Bandwidth 20Hz to 20KHz Size (H-W-D) 25x102x145mm (1x4x5.7 inches) Weight (Net) 324g (11.4oz) -
Page 10: Limited Warranty
8.0 LIMITED WARRANTY If any consumer product from Audio Authority fails due to defects in materials ® or workmanship within one year from the date of the original sale to the end- user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (ground service only). A copy of the invoice showing the item number and date of purchase (proof-of-purchase) must be submitted with the defective unit to constitute a valid in-warranty claim. Units that fail after the warranty period has expired may be returned to the factory for repair at a nominal charge, if not damaged beyond the point of repair. All freight charges for out-of-warranty returns for repair are the responsibility of the customer. Units returned for repair must have a Return Authorization Number assigned by the factory. This is a limited warranty and is not applicable for products which, in our opinion, have been damaged, altered, abused, misused, or improperly installed. Audio Authority makes no other warranties either expressed or implied, including limitation warranties as to merchantability or fitness for a particular purpose. Additionally, there are no allowances or credits available for service work or installation performed in the field by the end user. 8.1 WARRANTY SERVICE PROCEDURES If you suspect a product defect, contact Audio Authority’s Technical Service Department at 800-322-8346 or 859-233-4599 for assistance in verifying the problem. If a defect or potential defect is suspected, a replacement unit will be shipped immediately on a defect-exchange basis and a Return Authorization Number will be issued for the return of the defective product. Replacement units are sent out at the Manufacturer’s Suggested Retail Price which is debited to the Customer’s Credit Card at the time of shipment. Once we receive the defective unit back at the factory, it will be evaluated under the conditions of this warranty and if found to be in-warranty, a full credit will be issued to the Customer’s Credit Card. Return freight charges for the defective unit are the customer’s responsibility. Please contact our Technical Service Department for complete details concerning all in and out of warranty service matters. We appreciate your confidence in our products and services and will always strive to meet or exceed your needs. -
Page 11: Regulatory Compliance
9.0 REGULATORY COMPLIANCE The 1388 complies with HDMI and HDCP rules and regulations. The power ® supply included has been tested for compliance with UL, CUL, CE, PSE, and GS rules and guidelines. This product and its power supply are RoHS compliant. 10.0 CONTACT INFORMATION If you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below. Audio Authority Technical Service 800-322-8346 M-F 8:30 AM to 5:00 PM, EST International: 859-233-4599 Fax: 859-233-4510 Send email to: support@audioauthority.com Audio Authority Corporation 2048 Mercer Road Lexington, Kentucky 40511-1071... - Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 www.audioauthority.com E-098 11/10...
