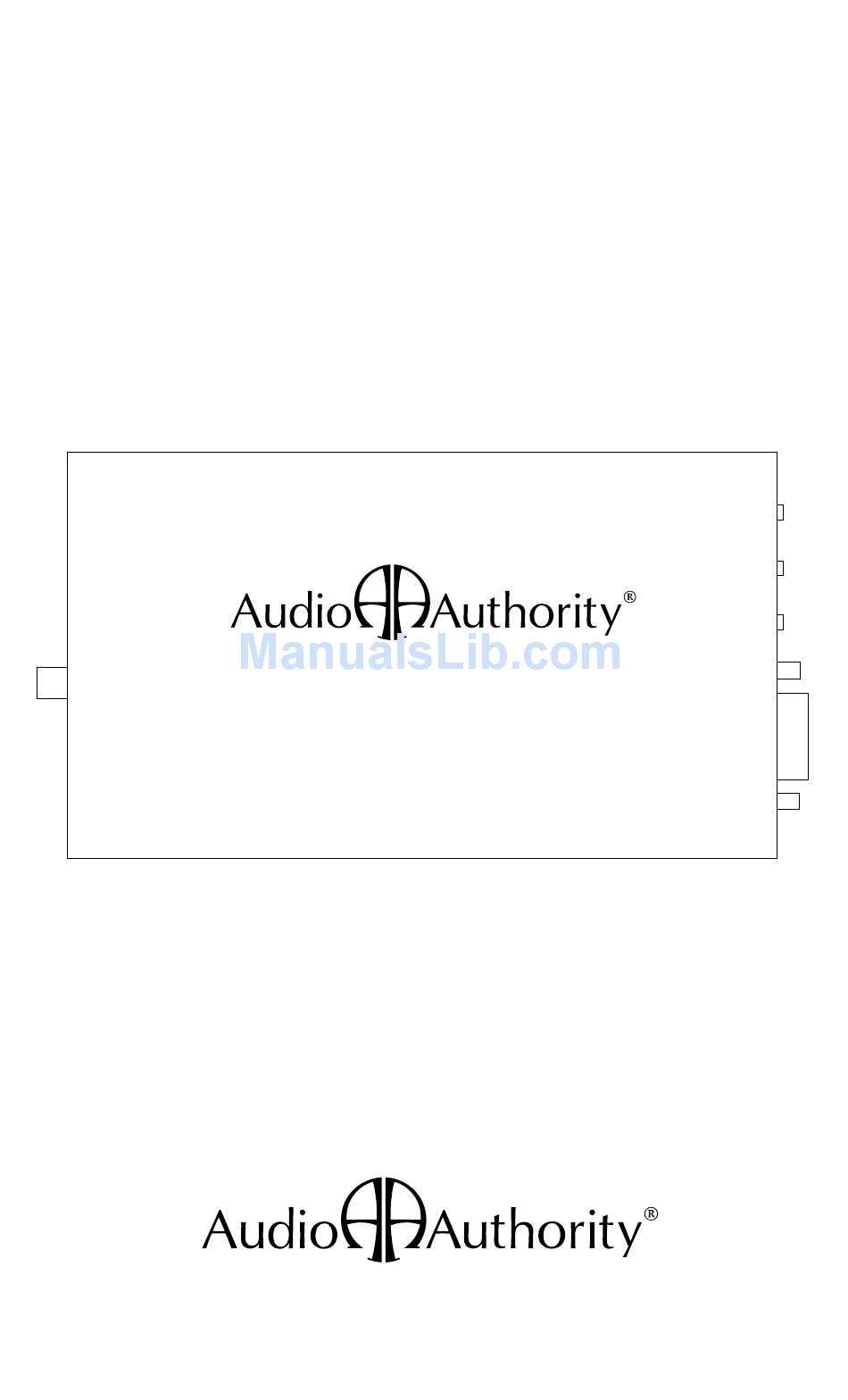

Page 1: User Manual
User Manual Model 1362 Model 1362 Composite Video to YPbPr / VGA Converter www.audioauthority.com Composite Video to YPbPr / VGA Video Converter... -
Page 2: Table Of Contents
Table Of Contents 1.0 Introduction ......2.0 Specifications ......3.0 Checking Package Contents . -
Page 3: Introduction
1.0 INTRODUCTION Thank you for purchasing this 1362 Video Converter from Audio Authority. The 1362 has many uses, but the vital need it answers is in a mixed signal distribution system. Some high definition signal distribution systems include one or more standard definition sources. -
Page 4: Getting The Best Results
Using Compatible Resolutions Set the output resolution of the 1362 to the resolution and refresh rate most compatible with the display device. This allows the 1362 to do most of the work, which usually results in a superior picture. -
Page 5: Specifications
2.0 SPECIFICATIONS Input Format Composite Video, S-Video or YUV (Y,R-Y,B-Y) Input Signal Levels Composite Video @ 1V p-p, 75Ω S-Video @Y 1V p-p, C 0.7 V p-p, 75Ω Pb, B-Y, Pr, R-Y @ 0.7V p-p, 75Ω Output Format RGBHV, YPbPr Output Signal Levels RGB @ 0.7V p-p, 75Ω. -
Page 6: Checking Package Contents
The first step is to connect a video source to one of the inputs of the 1362 and to connect its output to a display device. The drawing of the unit shows the location of the inputs, output and power connectors. -
Page 7: Operating The Unit
4.2 Connecting the Output The 1362 scaler can output analog RGBHV or YPbPr formats up to YCbCr DC 5V UXGA and 1080p. RGBHA and YPbPr are both available on the HD- 15 output connector. When a PC (RGBHV) output is used, select an HD-15 to HD-15 cable to connect the 1362 output to the destination device. -
Page 8: Menu Map
Pressing the menu button displays the main Picture Adjust menu. Move the cursor to the desired setup Display Setup option by using the + and – buttons. When Advanced Setup System Information you reach the option you desire, press the Exit menu button again to select that option. -
Page 9: System Information
OSD (On Screen Display), and set the “no signal” display to either blue or black. 5.6 System Information When this is selected, the OSD allows changes to be made to the 1362’s current output resolution and vertical refresh rate. -
Page 10: Troubleshooting
6.0 TROUBLESHOOTING • First check for faulty cables or bad connections. • If you see no video image, the 1362 may be set to the wrong input. If it is on, turn off the OSD menu (left corner) by pressing the menu button, or cycle power on the 1362. -
Page 11: Limited Warranty
Should any consumer product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). -
Page 12: Regulatory Compliance
CSA & CE Regulations. 9.0 CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below. Audio Authority Technical Service 800-322-8346 M-F 8:30 AM to 5:00 PM, EST International: 859-233-4599 Fax: 859-233-4510 Send email to: support@audioauthority.com...
