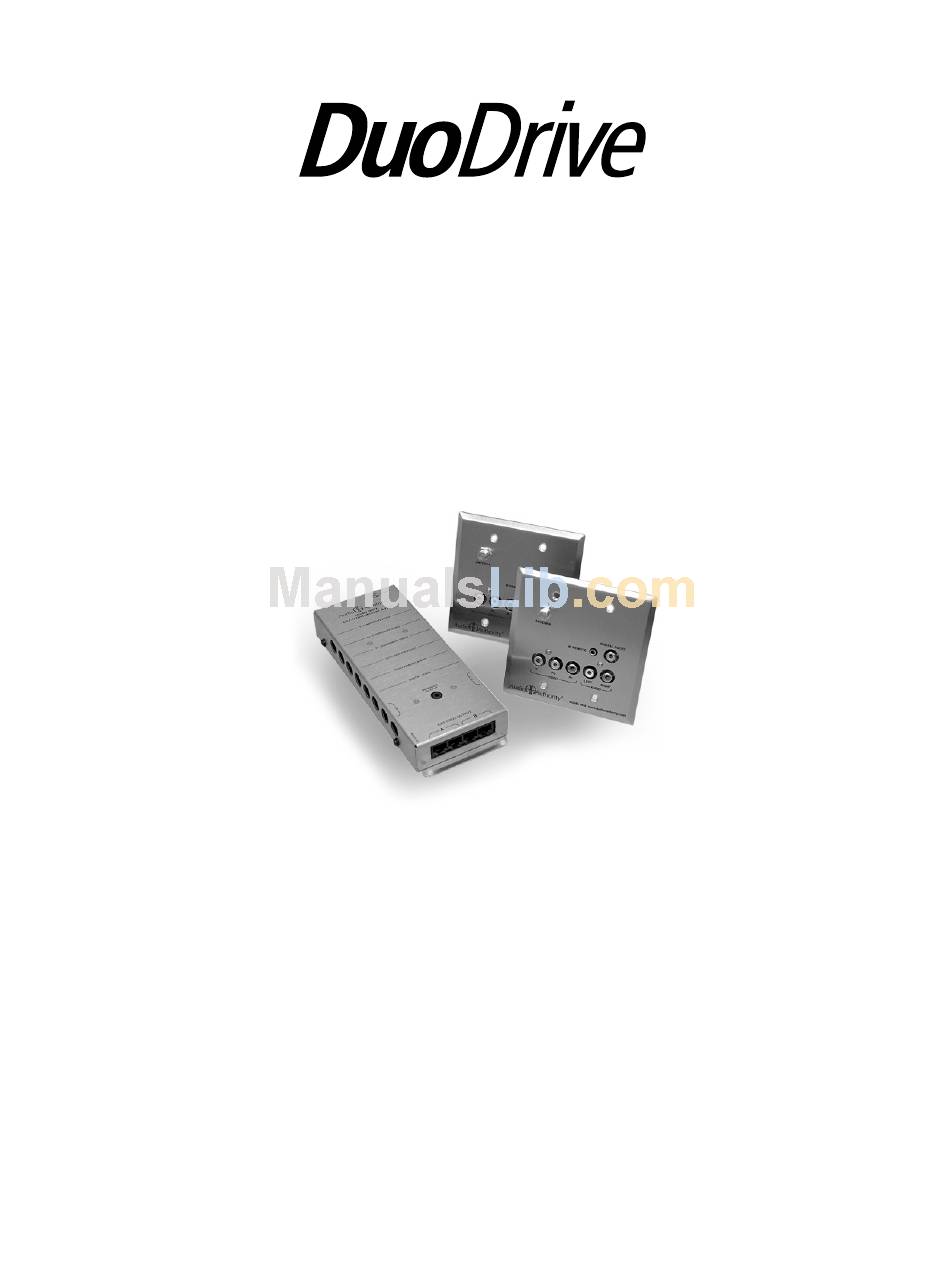

- Page 1 Model 9870 (9871, 9878) Residential Category 5 HDTV Distribution System...
- Page 2 ™ Overview The DuoDrive (Model 9870) allows HDTV signals to be distributed throughout the home from a single source. Component video (YPbPr), analog stereo audio, and digital audio (coaxial) signals are included in each two-cable Cat 5 pathway. By connecting IR remote control systems to the DuoDrive system, users can easily control the source equipment from other rooms in the house.
- Page 3 Cable Length Compensation = 1 9878 Wallplate Cat 5 cable A Cat 5 cable B Made in USA by Audio Authority Corp. Toll Free USA and Canada: 800-322-8346 www.audioauthority.com CABLE LENGTH COMPENSATION SET TOTAL BUS CABLE 0 = 0-99 FEET, LENGTH FROM HEAD END 1 = 100-199, ETC.
-
Page 4: In Case Of Difficulty
Cat 5, Cat 5e, or Cat 6 Cable In Case of Difficulty If any problems arise that are not covered in this manual, call Audio Authority Technical Support at 800-322-8346, or outside the US and Canada, call 859-233-4599. 18-volt power supply PN 571-014...
