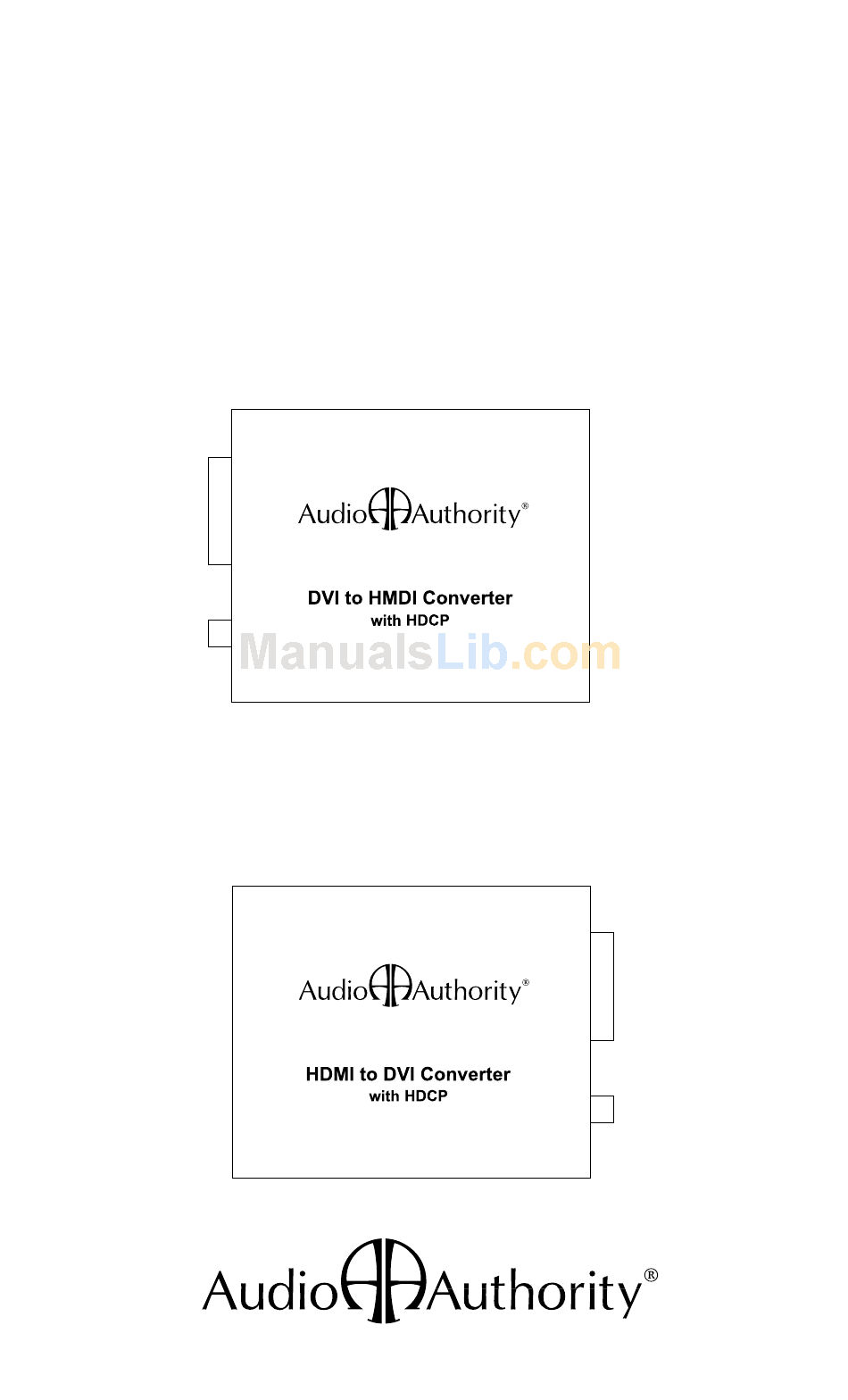

- Page 1 User Manual Model 1311 DVI+Digital Audio to HDMI Converter Model 1312 HDMI to DVI+Digital Audio Converter...
-
Page 3: Table Of Contents
Introduction ..... . . 4 Specifications ..... . 5 Checking Package Contents . -
Page 4: Introduction
S/PDIF Audio output. The converted HDMI video signal can then be connected to an HDTV with a DVI input or to a DVI switcher’s inputs. The 1311 converts a Digital DVI signal and S/PDIF Audio input to an HDMI format allowing the viewing or switching of a digital AV signal on an HDMI system. -
Page 5: Specifications
2.0 SPECIFICATIONS Signal Inputs/Output HDMI Digital RGB Digital Audio Digital Signal I/O HDMI Compliance DVI Compliance Operating Frequency Frequency Resolutions (HDTV) Interlaced (50&60Hz) Progressive (50&60Hz) Special (24 to 30Hz) Resolutions (PC) SVGA SXGA UXGA Mechanical Size (H-W-D) Weight (Net) Warranty Limited Warranty Environmental Operating Temperature... -
Page 6: Checking Package Contents
Serial Number and Invoice available for reference when you call. 4.0 CONNECTING THE HARDWARE Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements. Model 1311 DVI + Digital Audio to HDMI Converter Model 1312 HDMI to DVI + Digital Audio Converter... -
Page 7: Operating The Unit
6.2 Cable Length If you need to span a distance of greater than 6 feet to reach the converter, purchase Audio Authority’s 1351 DVI Repeater which will allow you to extend a cable run up to 40 feet using premium cable. - Page 8 DVI switcher in the signal path after a distribution amp; this configuration does not work. If the problem still persists after trying the above suggestions, contact the Audio Authority Technical Service department via email: support@audioauthority.com, or call 800-322-8346 or 859-233-4599.
-
Page 9: Limited Warranty
7.0 LIMITED WARRANTY Should any consumer use product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). -
Page 10: Regulatory Compliance
8.0 REGULATORY COMPLIANCE The 1311 and 1312 Converters have been tested for compliance with FCC and CE Regulations. The Power Adaptor/Supply has been tested for compliance with UL, CSA & CE Regulations. 9.0 CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below. - Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 Website: http://www.audioauthority.com 752-514 5/06...
