Page 1: User Manual
User Manual Model 970A-1... -
Page 2: Data Bits

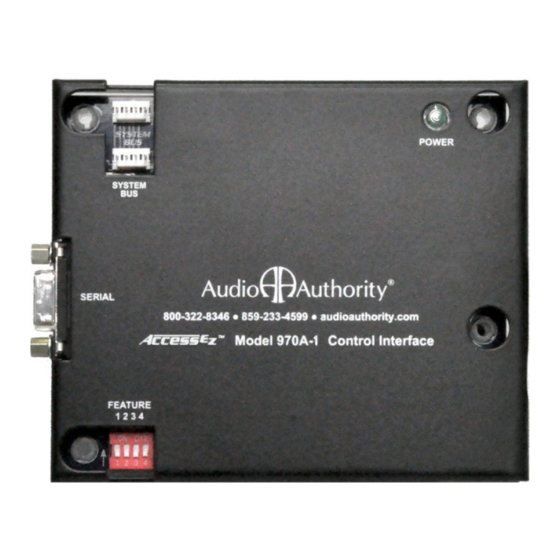

Model 970A-1 Control Interface The Model 970A-1 is a protocol converter which allows any device capable of receiving and transmitting ASCII characters via an RS-232 port to control product selection on Audio Authority® AccessEZ™ Demonstration Networks. MODEL 970A-1 ACCESS RS-485... -
Page 3: Package Contents
• User Manual Note: Please retain the original packing material in case the unit must be returned. If you find any items are missing, contact Audio Authority immediately. Have the model number and invoice available for reference when you call. Installation YELLOW WIRE 1. - Page 4 Examples The following text captured from a 970A-1 illustrates its operation. A line by line commentary has been added on the right. <power applied unit boots> Prints ID message on boot and begins 970A-1 Serial Interface unit Polling polling the attached system...
- Page 5 Deselect Electronic groups may have only 1 product selected at a time as the following example shows: >+E00:00 Turn on E00:00. > E00:00+ Confirmed. >+E00:01 Turn on E00:01 as well. > > E00:00- E00:00 disengages prior to... E00:01+ E00:01 engaging. Speaker Add Speaker groups may have up to 4 products simultaneously connected. If a fifth product is added the “Oldest”...
-
Page 6: Disable All
Disable All >DISABLE ALL DISABLE ALL locks out all product select buttons. It also will prevent the 970 from accessing products. >ENABLE ALL ENABLE ALL turns all of the product select buttons back on. Bus Monitoring The following messages were generated by the user pressing buttons on the display. - Page 7 Mute >MUTE Mute is used for selecting multiple products inside of one audio mute/unmute bracket. Prompt changes to ‘=’ as a reminder that mute is on. =+S05:00 Select speaker group 5 product 0, S05:00+ =+E02:01 and electronic group 2 product 1. E02:01+ =END MUTE Then unmute to turn audio back on.
- Page 8 2048 Mercer Road, Lexington, Kentucky 40511-1071 USA Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 www.audioauthority.com • support@audioauthority.com 752-690 Rev 20161213...
