- Page 1 Studio Gearhead INSTRUCTION MANUAL Please read this manual carefully before using the PCS...
- Page 3 Index Key features ................3 Warnings ..................3 PCS Studio gearhead overview ..........4 3.1 PCS controls ................4 3.2 Applying the cranks and choosing the tripod mount thread ..5 3.3 Tilting and pivoting ..............6 3.4 Rotating top and bottom .............. 6...

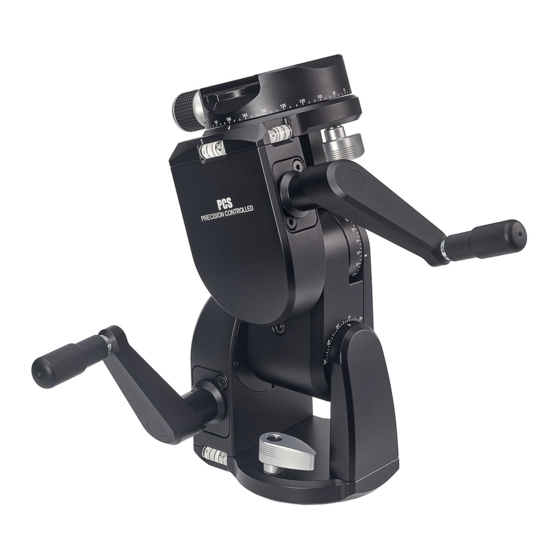

- Page 4 Thank you for purchasing a Cambo product. The PCS is a heavy duty gearhead designed for the studio environment. It features geared movements around the X- and Y-axis as well as manual 360º Z-axis rotation at the top and bottom plate.
- Page 5 PCS Studio gearhead overview PCS controls A. Arca compatible dovetail clamp B. Arca clamp locking knob C. Top rotation plate locking knob D. Pivot adjustment crank E. Tilt adjustment crank F. Bottom rotation locking knob G. Bottom tripod mount (3/8”)
- Page 6 Applying the cranks and choosing the tripod mount thread To apply the crank [B.] place pins [C.] of the crank inside the designated holes [D.] of the PCS. Use the M4x10 bolt [A.] and the supplied 2,5mm Allen key to firmly connect the cranks to the PCS...
- Page 7 PCS rotate the bottom crank clockwise for tilting forward and counter clockwise for tilting backward. The maximum tilting movement is 90º forward tilt and 30º backwards tilt. To pivot the PCS rotate the top crank clockwise for pivoting to the left and counter clockwise for pivoting to the right.
- Page 8 This instruction manual is prepared with care, although no responsibility, financial or otherwise, is accepted for any consequences related the information stated in this instruction manual. All specifications in this instruction manual are subject to change without notice. For more information please visit the Cambo web site: www.cambo.com...
