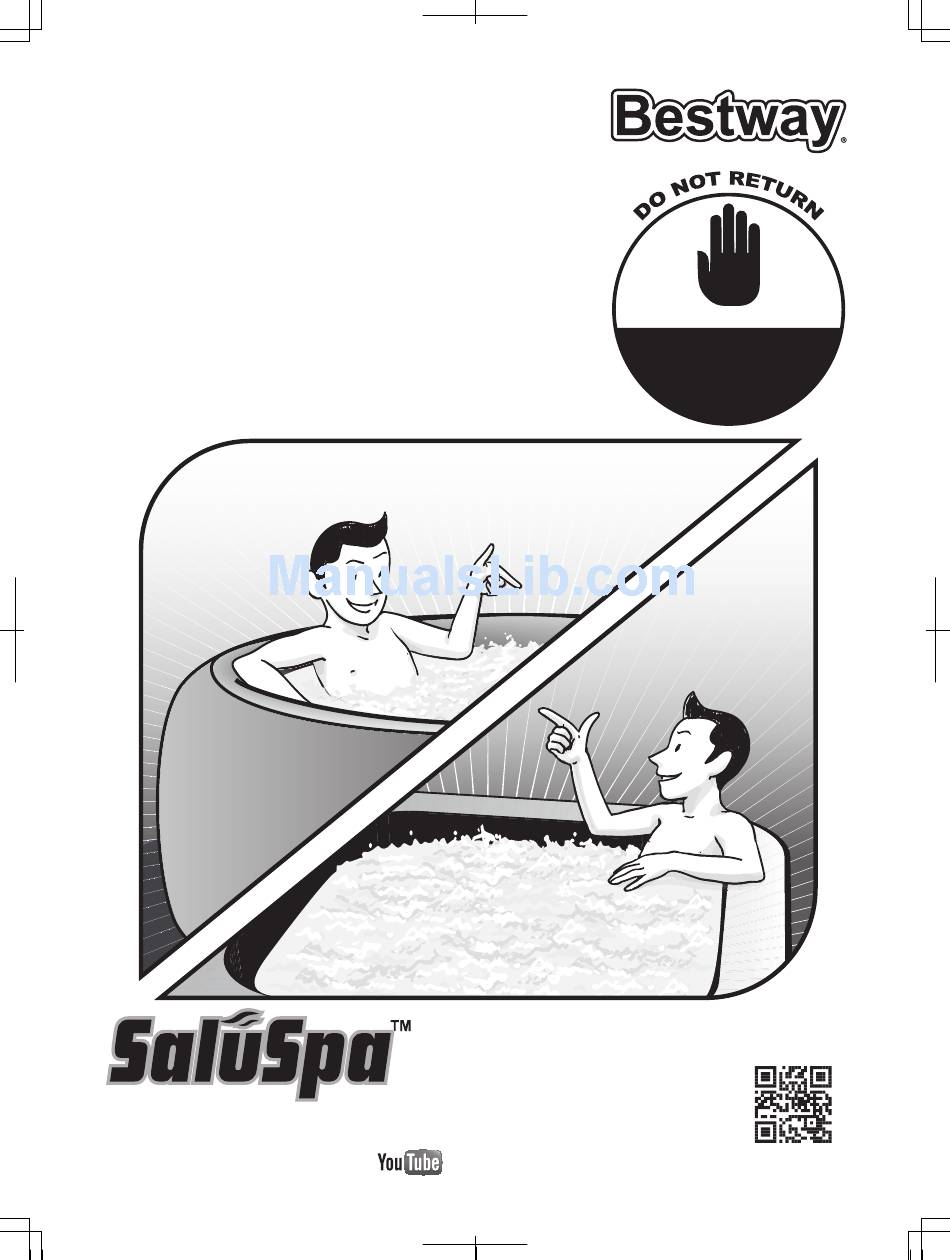

#54124E, #54130E, #54149E,
#54155E, #54157E
110-120V~60Hz, 12A at 20ºC
Owner's Manual
Website: www.bestwaycorp.com
Visit Bestway YouTube channel
S-S-004676/21x28.5cm/54124E,54130E,54149E,54155E,54157E/美国规Salu SPA说明书/JS-YF-2016-B-05547/英
TO THE STORE
QUESTIONS? PROBLEMS?
MISSING PARTS?
Tel: 1-855-838-3888
service@bestwaycorp.us
For FAQ, Manuals, Videos Or
Spare Parts, Please Visit
www.bestwaycorp.com
S-S-004676
Advertisement
Table of Contents
Related Manuals for Bestway SaluSpa 54124E
Summary of Contents for Bestway SaluSpa 54124E
- Page 1 #54124E, #54130E, #54149E, #54155E, #54157E 110-120V~60Hz, 12A at 20ºC TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? Tel: 1-855-838-3888 service@bestwaycorp.us For FAQ, Manuals, Videos Or Spare Parts, Please Visit www.bestwaycorp.com Owner’s Manual Website: www.bestwaycorp.com Visit Bestway YouTube channel S-S-004676 S-S-004676/21x28.5cm/54124E,54130E,54149E,54155E,54157E/美国规Salu SPA说明书/JS-YF-2016-B-05547/英...
-
Page 2: Table Of Contents
CONTENTS 1. Warning ......5. Maintenance ......Filter Cartridge Maintenance 2. Specifications ....Water Maintenance Air-Valve Adjustment 3. Installation ......Draining the Spa Selected Location Cleaning the Spa GFCI Test Spa Repair Assembly SaluSpa Storage 4. Pump Operation ....6. Troubleshooting ....Control Panel Alarms 7. -
Page 3: Warning
CAUTION: To avoid damage to the pump, the spa must never be operated unless the spa is filled with water. CAUTION: Immediately leave spa if the user feels uncomfortable or sleepy. NOTE: Please examine equipment before use. Notify Bestway at the customer service address ®... - Page 4 NOTE:The warning label must be posted near your spa in a readable position during using your spa. 1. Take out the warning label from the accessory kit. 2. Carefully peel the warning label. 3. Affix the warning label. To order the warning label, please contact your local Coleman After Sales Service. IMPORTANT ! To reach 104°F (40°C), the heating duration required is base on the starting water temperature and ambient temperature, the data below is purely for reference.
- Page 5 SPECIFICATIONS FOR SaluSpa™ MIAMI (#54124E) AirJet Capacity: 2-4 Adults Massaging Turbo 6.5A Increased Heat Approximately Blower: Rate: 2-3ºF/h (1.0-1.5ºC/h) Water Capacity (80%): 177 gal. (669 L) Heat Element: 11.3A at 68ºF(20ºC) Power Rate: 110-120V AC, 12A at 68ºF(20ºC) Inflated Size: 71 in.
- Page 6 Part N. Part Code Description 54130TASS17 Pool liner P4B080USASS17 Spa Heater P5602Q17 Top Leatheroid Cover 54129GASS17 Inflatable Cover P6930 Inflation Hose P6653 Filter Set 58426S17 Chemical Floater 58321(H)S15 Ground Mat F6H189ASS15 Wrench P6575 Stoppers P61199 Pressure Gauge P6611 Cover Adapter A P6H971 Inflation Valve F6414ASS...
- Page 7 Part N. Description Part Code Pool liner 54149TASS16 Spa Heater P4H063USASS17 Top Leatheroid Cover P5H284GASS17 Liner Leatheroid Cover P5H514TASS17 Inflatable Cover 54148GASS16 Inflation Hose P6931 Filter Set P6653 Chemical Floater 58426S17 Stoppers P6575 Ground Mat 58321(H)S15 Screw Valve F4A024ASS Cover Adapter A P6611 LED Strip P61718...
-
Page 8: Specifications
SaluSpa™ SPECIFICATIONS FOR Siena AirJet (#54157E ) Capacity: 2 Adults Massaging Turbo Increased Heat Approximately 6.5A Blower: Rate: 3-4ºF/h (1.5-2.0ºC/h) Water Capacity (80%): 134 gal. (509 L) Heat Element: 11.3A at 68ºF(20ºC) Power Rate: 110-120V AC, 12A at 68ºF(20ºC) Inflated Size: 98’’... -
Page 9: Installation
INSTALLATION Selected Location IMPORTANT: Because of the combined weight of the SaluSpa, water, and users, it is extremely important that the base where the SaluSpa is installed is smooth, flat, level and capable of uniformly supporting the weight for the entire time the SaluSpa is installed (not on the carpet or other similar material). - Page 10 MIAMI AirJet (#54124E) 3 seconds to unlock. To stop inflation. Inflate for 5 min. Inflate for 2 min. PALM SPRINGS AirJet (#54130E) 3 seconds to unlock. 0.08Bar(1.2PSI) Inflate for 5 min. To stop inflation. Inflate for 2 min. PARIS AirJet (#54149E) 3 seconds to unlock.
- Page 11 Inflate for 2 min. HAWAII AirJet (#54155E) Inflate for 5 min. 0.08Bar(1.2PSI) 3 seconds to unlock. Inflate for 2 min. To stop inflation. SIENA AirJet (#54157E) Inflate for 5 min. 0.08Bar(1.2PSI) 3 seconds to unlock. Inflate for 2 min. To stop inflation. S-S-004676 S-S-004676/21x28.5cm/54124E,54130E,54149E,54155E,54157E/美国规Salu SPA说明书/JS-YF-2016-B-05547/英...
-
Page 12: Alarms
2. The water flow sensors are broken. 2. Contact your local Bestway Aftersales service point to get instructions. After starting or during the 1. You forgot to remove the 3 stopper caps from inside 1. Remove the 3 stopper caps before heating. Refer to Assembly section in the functions of filtering or/and the pool. -
Page 13: Filter Cartridge Maintenance
CAUTION: YOU MUST ENSURE THE PUMP IS UNPLUGGED BEFORE BEGINNING SPA MAINTENANCE TO AVOID RISK OF INJURY OR DEATH. Filter Cartridge Maintenance NOTE: To ensure your spa water stays clean, check and clean your filter cartridges every day follow the steps below. 58323 Filter Cartridge P6653... -
Page 14: Draining The Spa
Draining the Spa NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale. P6611 NOTE: Lift up the spa when there is only a little water left. Damages to the handles are not covered under the warranty. NOTE: Dry the spa pool. -
Page 15: Troubleshooting
Check and make sure the seals are placed correctly inside the pump adapters. If the seals are missing or not installed correctly, please contact your local Bestway After Sales Service Center for instructions. If the seals are correctly in place, reconnect the pump to the SPA and hand-tighten the adapters. -
Page 16: Warranty
30 days for hoses, fitting and accessory included in the package from the original date of purchase To enact a warranty claim, this form must be completed and supplied with a copy of your receipt/purchase to your local Bestway After Sales Center.
