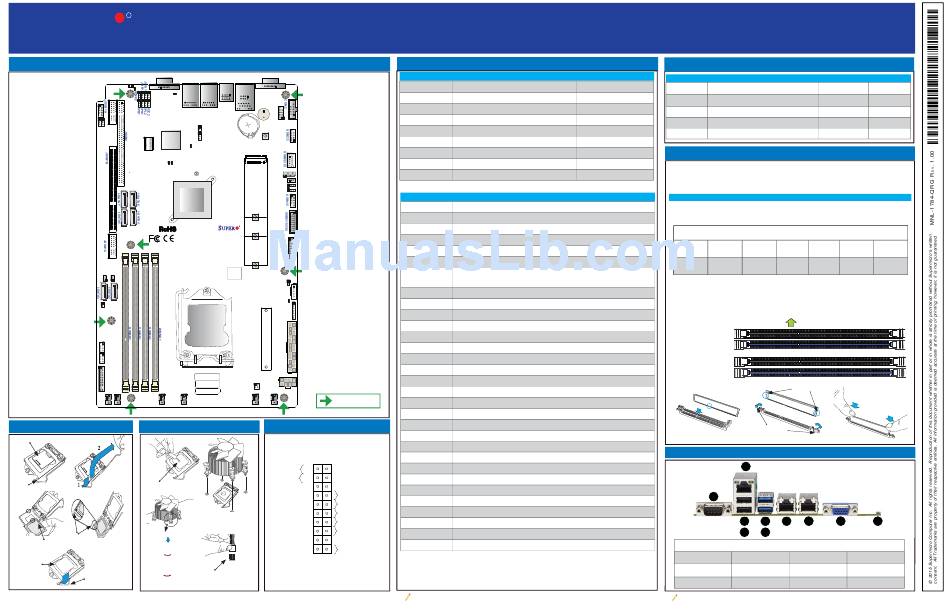

Supermicro X11SSW-F Quick Reference Manual

C
S
UPERMICR
R
• Website: www.supermicro.com
• General Information: marketing@supermicro.com
X11SSW-F
• Technical Support: support@supermicro.com
Q R G 1.00
UICK EFERENCE UIDE
• Phone: +1 (408) 503-8000, Fax: +1 (408) 503-8008

Motherboard Layout and Features

VGA
JUIDB1 LE1 LAN2
JI2C1
BMC
LEDBMC
LEDEC1
JBT1
Intel PCH
X11SSW-F
REV:1.01
Designed in the USA
JSD1 JSD2
JL1
I-SGPIO2
I-SGPIO1
JF1
FAN3
FAN6 FAN5 FAN4

CPU Installation

Heatsink Installation

Load Plate
Thermal Paste
Load Lever
Push Down
Pin 1
North Center Edge
Turn Clockwise
to Lock
CPU Properly
Turn Counter-
Installed
clockwise to
Unlock
Connect the Heatsink Wire to
Load Lever Locked
the CPU Fan Connector
into Place
I
ONTACT NFORMATION
COM1
LAN1 USB6/7 USB0/1
(3.0)
IPMI_L
SP1
SRW4
JPL1
BT1
J23
JIPMB1
JSTBY1
SRW2
2260
SRW3
2280
SRW1
JTPM1
22110
BIOS
LICENSE
JOH1
JPI2C1
LEDPWR
JD1
CPU
JPWR1
IPMI CODE
MAC CODE
BAR CODE JPWR2
= mounting hole
FAN2 FAN1

Front Panel Control (JF1)

1 2
Power Button Ground
PWR
Reset Button Reset Ground
3.3 V Power Fail LED
Red+ (Blue LED Cathode) Blue+ (OH/Fan Fail/UID LED)
NIC2 Active LED NIC2 Link LED
NIC1 Active LED NIC1 Link LED
ID_UID_SW/3.3V Stdby HDD LED
3.3V FP PWRLED
X
X
Ground
NMI
19 20
F ,
OR YOUR SYSTEM TO WORK PROPERLY PLEASE DOWNLOAD APPROPRIATE
/ / '
DRIVERS IMAGES USER S MANUAL FROM THE LINKS BELOW
• Manuals: http://www.supermicro.com/support/manuals
• Drivers & Utilities: ftp://ftp.supermicro.com/CDR_Images/CDR-X11-UP/
• Safety: http://www.supermicro.com/about/policies/safety_information.cfm

Jumpers and Connectors

Jumpers
Jumper Description
JBR1 BIOS Recovery Pins 1-2 (Normal)
JBT1 Clear CMOS See Chpt. 2 in User Manual
JI 2 C1/JI 2 C2 SMB to PCI Slots Pins 2-3 (Disabled)
JPB1 BMC Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable Pins 1-2 (Enabled)
JPL1/JPL2 LAN1/LAN2 Enable Pins 1-2 (Enabled)
JPME2 Manufacturing Mode Select Pins 1-2 (Normal)
JWD1 Watch Dog Enable Pins 1-2 (Reset)

Connectors

Connector Description
BT1 Onboard Battery
COM1/COM2 COM1/COM2 Port Headers
Fan1-Fan6 System/CPU Fan Headers
IPMI_LAN IPMI_Dedicated Gigabit (RJ45) Port
I-SATA2-I-SATA7 SATA 3.0 Connectors via Intel PCH (6Gb/s)
I-SGPIO 1/2 Serial_Link General Purpose I/O Connection Headers for I-SATA 3.0 connections
(I-SGPIO1 for I-SATA2-3, I-SGPIO2 for I-SATA4-7)
J23 M.2 Socket 3 (supports 2260, 2280, 22110 for NVMe and SATA SSD)
JD1 Speaker/Power LED Indicator
JF1 Front Panel Control Header
JIPMB1 4-pin External BMC I 2 C Header (for an IPMI Card)
JL1 Chassis Intrusion Header
JOH1 Overheat LED Indicator
JPI 2 C1 Power I 2 C System Management Bus (Power SMB) Header
JPWR1 24-pin ATX Main Power Connector (Required)
JPWR2 +12V 8-pin CPU Power Connector (Required)
JSD1/JSD2 SATA Disk On Module (DOM) Power Connectors
JSTBY1 Standby Power Header
JSXB1A/1B/1C SMC-Proprietary WIO_L (Left) Add-On Card Slot
JSXB2 SMC-Proprietary WIO_R (Right) Add-On Card Slot
JTPM1 Trusted Platform Module (TPM)/Port 80 Connector
JUIDB1 UID (Unit Identifi cation) Switch
LAN1/LAN2 Gigabit (RJ45) LAN Ports
SP1 Internal Speaker/Buzzer
USB 0/1 Back Panel USB 2.0 Ports
USB 2/3 USB 2.0 Header
USB 4/5 USB 2.0 Header
USB 6/7 Back Panel USB 3.0 Ports
USB 8 USB 3.0 Type-A Header
USB 9/10 Front Panel Accessible USB 3.0 Header
VGA Back Panel VGA Port
Note: Refer to Chapter 1 of the User Manual for detailed information on jumpers, connectors,
and LED indicators.
P C
ACKAGE
• One (1) Supermicro Motherboard
:
• Six (6) SATA Cables
• One (1) I/O Shield
• One (1) Quick Reference Guide

LED Indicators

LED Indicators
Default
LED Description
LE1 Rear UID LED
LEDBMC BMC Heartbeat LED
LEDEC1 EC Heartbeat LED
LEDPWR System Standby Power LED

Memory Support

The X11SSW-F has four (4) 288-pin DIMM slots that support up to 64GB of SDRAM
72-bit DDR4 unbuffered ECC 2133/1866/1600/1333MHz memory.

DIMM Memory Installation

Memory Population Guidelines

Please follow the table below when populating the X11SSW-F:

Memory Module Population

DIMM Slots POR Speeds Ranks per
DIMM Type
per Channel (MHz)
Unbuffered 2133, 1866,
2 SR, DR
DDR4 ECC 1600, 1333
Insert the desired number of DIMMs into the memory slots. The DIMM slots
should be populated in the following order: DIMMB2, DIMMA2, DIMMB1,
DIMMA1. For the system to work properly, please use memory modules of the
same type and speed in the motherboard.
Channel A Slot 1
Channel A Slot 2
(Blue Slot)
Channel B Slot 1
Channel B Slot 2
(Blue Slot)
Release Tabs

Back Panel I/O Connectors

D
A
C F G
B E
I/O Back Panel
A. COM 1 D. IPMI LAN
B. USB Port 0 (2.0) E. USB Port 6 (3.0)
C. USB Port 1 (2.0) F. USB Port 7 (3.0)
Note: Refer to Chapter 2 of the User Manual for detailed information on memory support and CPU/
motherboard installation instructions.
ONTENTS
Color/State Status
Blue: On Unit Identifi ed
Green: Blinking BMC Normal
Green: Blinking EC Normal
Green: Solid On Power On
Layer Supported
FW Base
DIMM Count Voltage
6 SPS 1.2V
Towards the CPU
Notches
Press both notches
straight down into
the memory slot.
H I J
G. LAN1 J. UID Switch
H. LAN2
I. VGA
