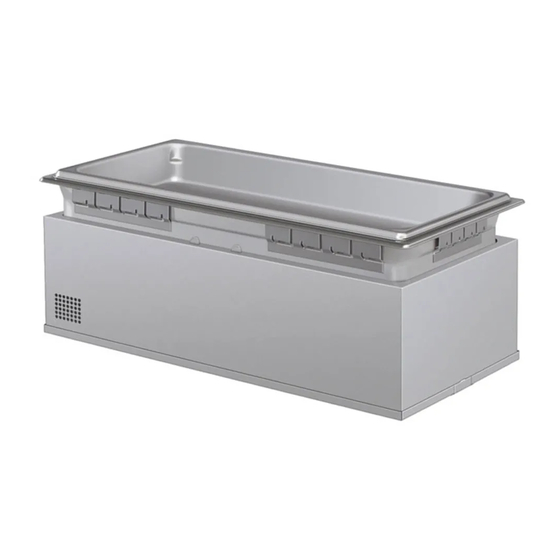

Hatco HWBRN-FUL Installation And Operating Manual
Built-in heated wells hwb series
Hide thumbs
Also See for HWBRN-FUL:
- Specifications (2 pages) ,
- Installation and operating manual (48 pages)
Table of Contents
Advertisement
www.hatcocorp.com
Register Online!
(see page 2)
Installation and Operating Manual
WARNING
Do not operate this equipment unless you
have read and understood the contents of
this manual! Failure to follow the
instructions contained in this manual may
result in serious injury or death. This
manual
contains
important
information concerning the maintenance,
use, and operation of this product. If
you're unable to understand the contents
of this manual, please bring it to the
attention of your supervisor. Keep this
manual in a safe location for future
reference.
Built-In Heated Wells
HWB Series
P/N 07.04.393.00
ADVERTENCIA
No opere este equipo al menos que haya
leído y comprendido el contenido de este
manual! Cualquier falla en el seguimiento
de las instrucciones contenidas en este
manual puede resultar en un serio lesión
safety
o
muerte.
Este
importante información sobre seguridad
concerniente al mantenimiento, uso y
operación de este producto. Si usted no
puede entender el contenido de este
manual
por
favor
supervisor. Almacenar este manual en
una localización segura para la referencia
futura.
Ne pas utiliser cet équipement sans avoir
lu et compris le contenu de ce manuel !
Le
contenues dans ce manuel peut entraîner
de graves blessures ou la mort. Ce
manual
contiene
manuel
importantes
l'utilisation et le fonctionnement de ce
produit. Si vous ne comprenez pas le
contenu de ce manuel, veuillez le signaler
à votre supérieur. Conservez ce manuel
pregunte
a
su
dans un endroit sûr pour pouvoir vous y
référer plus tard.
AVERTISSEMENT
non-respect
des
instructions
contient
des
informations
concernant
l'entretien,
© 2011 Hatco Corporation
Advertisement
Table of Contents
Related Manuals for Hatco HWBRN-FUL
Summary of Contents for Hatco HWBRN-FUL
- Page 1 à votre supérieur. Conservez ce manuel manual favor pregunte manual in a safe location for future supervisor. Almacenar este manual en dans un endroit sûr pour pouvoir vous y reference. una localización segura para la referencia référer plus tard. futura. © 2011 Hatco Corporation...
-
Page 2: Table Of Contents
CAUTION indicates a hazardous situation which, if not site labor warranty is standard. avoided, could result in minor or moderate injury. Hatco Built-In Heated Wells are a product of extensive research NOTICE and field testing. The materials used were selected for... -
Page 3: Important Safety Information
This unit has no “user-serviceable” parts. If service is required on cleaning, adjustments, or maintenance. this unit, contact an Authorized Hatco Service Agent or contact • DO NOT submerge or saturate with water. Unit is not the Hatco Service Department at 800-558-0607 or 414-671-6350;... -
Page 4: Model Designation
FUL but are equipped with a drain. The drain includes a 3/4″ combustible countertops using optional Hatco mounting kits. NPT drain fitting and flat drain screen that allows for pans to Built-In Heated Wells are designed, manufactured, and tested stay level for consistent temperatures. - Page 5 MODEL DESCRIPTION HWBI-FULDA Models HWB-43 Models HWBI-FULDa models are top mount insulated versions that HWB-43 models are capable of holding a variety of pan have the same capabilities as the HWBI-FULD but with the combinations listed below. These models are designed to be optional auto-Fill feature.The auto-Fill feature fills and maintains mounted to the topside of a non-combustible countertop or the proper level of water in the well automatically.
-
Page 6: Specifications
NOTE: The specification label is located on the bottom of the unit or on the control box. See label for serial number Figure 10. Plug Configurations and verification of unit electrical information. NOTE: Receptacle not supplied by Hatco. Form No. HWBm-0511... -
Page 7: Electrical Rating Charts
SPECIFICATIONS Electrical Rating Chart — All HWB-FUL Models Model Voltage Watts Amps Phase Plug Configuration Shipping Weight* HWBLXX-FUL NEma 5-15P or Hardwired 21 lbs. (10 kg) HWBXX-FUL 1200 10.0 NEma 5-15P or Hardwired 21 lbs. (10 kg) 1200 NEma 6-15P or Hardwired 21 lbs. - Page 8 SPECIFICATIONS Electrical Rating Chart — All HWB-4QT Models Model Voltage Watts Amps Phase Shipping Weight* HWBX-4QT 9 lbs. (4 kg) 9 lbs. (4 kg) 9 lbs. (4 kg) 9 lbs. (4 kg) 9 lbs. (4 kg) 220-230 (CE)† 9 lbs. (4 kg) 230-240 (CE)†...
-
Page 9: Water Supply Specifications (Auto-Fill Units)
Water Supply Specifications (Auto-Fill Units) Minimum Maximum Water Pressure 25 psi (172 kPa) 100 psi (689 kPa) Water Temperature 35°F (2°C) 100°F (38°C) Dimensions — HWB-FUL Models (Non-Insulated, Top Mount) Models: HWB-FUL HWBRN-FUL HWBRT-FUL HWB-FULD HWBRN-FULD HWBRT-FULD HWBL-FUL HWBLRN-FUL HWBLRT-FUL HWBL-FULD HWBLRN-FULD HWBLRT-FULD HWBH-FUL... - Page 10 SPECIFICATIONS Dimensions — HWBI-FUL Models (Insulated, Top Mount) Models: HWBI-FUL HWBIRT-FUL HWBI-FULD HWBIRT-FULD HWBLI-FUL HWBLIRT-FUL HWBLI-FULD HWBLIRT-FULD HWBHI-FUL HWBHIRT-FUL HWBHI-FULD HWBHIRT-FULD Width Depth Height 13-3/4″ 21-3/4″ 9-1/2″ (349 mm) (552 mm) (241 mm) Figure 12. Dimensions — HWBI-FUL models (Insulated, Top mount) Dimensions —...
- Page 11 SPECIFICATIONS Dimensions — HWB-43 Models Models: HWB-43 HWBH-43D HWBHRN-43D HWB-43D HWBH-43Da HWBRT-43 HWB-43Da HWBRN-43 HWBRT-43D HWBL-43 HWBRN-43D HWBLRT-43 HWBL-43D HWBLRN-43 HWBLRT-43D HWBL-43Da HWBLRN-43D HWBHRT-43 HWBH-43 HWBHRN-43 HWBHRT-43D Width Depth Height 13-5/8″ 28-5/8″ 8-5/8″ (346 mm) (727 mm) (219 mm) Figure 14. Dimensions — HWB-43 models Dimensions —...
-
Page 12: Installation
WARNING Damage to any countertop material caused by heat ELECTRIC SHOCK HAzARD: generated from Hatco equipment is not covered under the • Unit must be installed by a qualified electrician. Hatco warranty. Contact the manufacturer of the Installation must conform to all local electrical codes. - Page 13 Countertop Mounting Flange WARNING FIRE HAzARD: • Hatco mounting flange kits must be used when mounting unit in a combustible countertop. Mounting • Unit must be installed using ribbon putty gasket Flange Tab between the unit and the installation surface per installation instructions.
-
Page 14: Combustible Countertop Cutout Chart (For Unit/Mounting Kit)
INSTALLATION Combustible Countertop Cutout Chart (for Unit/Mounting Kit) Minimum Maximum Minimum Maximum Below Counter Models Width (A) Width (A) Depth (B) Depth (B) Clearance 14 '' 14-1/4 '' 22 '' 22-1/4 '' 8-5/8 '' HWB-FUL (356 mm) (362 mm) (559 mm) (565 mm) (219 mm) 14 ''... - Page 15 Figure 23. EZ Locking Tabs “Control Box Cutout Dimensions” in this section. NOTE: The Hatco EZ locking tabs work on countertops that 3. Place ribbon putty gasket around the cutout edge of the have a maximum thickness of 3/16″ (5 mm). For countertop.
-
Page 16: Non-Combustible Countertop Cutout Chart
INSTALLATION Non-Combustible Countertop Cutout Chart Minimum Maximum Minimum Maximum Below Counter Models Width (A) Width (A) Depth (B) Depth (B) Clearance 12-3/4 '' 12-15/16 '' 20-7/8 '' 20-15/16 '' 8-5/8 '' HWB-FUL ( 324 mm) ( 328 mm) ( 528 mm) ( 531 mm) ( 219 mm) 12-3/4 ''... -
Page 17: Installing A Remote Mounted Control Box
INSTALLATION Installing a Remote Mounted Control Box 3. Position the control box into the opening through the backside. 4. Secure the control box to the mounting surface using WARNING screws (#8 sheet metal screws supplied). ELECTRIC SHOCK HAzARD: 5. Connect the proper power source to the mounted remote •... -
Page 18: Installing An Auto-Fill Unit
1. Connect drain pipe (supplied by others) from the 3/4″ NPT drain fitting on the bottom of the unit to a 3/4″ drain valve (available as an accessory from Hatco). Figure 31. Installing Bottom mount Unit Form No. HWBm-0511... -
Page 19: Operation
Allowing unit to run dry during wet operation or adding water during dry operation will damage unit. Hatco Built-In Heated Wells are designed for WET or DRY operation. Hatco recommends wet operation for consistent food heating. If the unit is operating wet and is allowed to run dry, turn it off and allow to cool before adding water. -
Page 20: Maintenance
8. allow the solution to soak for at least one hour or overnight This unit has no “user-serviceable” parts. If service is for heavy buildup. required on this unit, contact an Authorized Hatco Service 9. Drain the water/cleaning solution from the well. Agent or contact the Hatco Service Department at 800-558- 0607 or 414-671-6350;... -
Page 21: Troubleshooting Guide
Temperature Control to a higher setting. Heating element not working. Contact authorized Service agent or Hatco for assistance. Temperature Control not working properly. Contact authorized Service agent or Hatco for assistance. Voltage supplied is incorrect. Verify correct voltage is supplied to unit. Low supply voltage will cause improper heating. - Page 22 OPTIONS AND ACCESSORIES Food Pans Digital Temperature Controller Stainless steel food pans are available in various sizes. Use the following procedures to operate a heated well equipped with the optional digital temperature controller. ST PAN 1/3 ..Third-size stainless steel pan — 12-3/4″W x Startup 6-7/8″D x 2-1/2″H (324 x 175 x 64 mm) 1.
-
Page 23: Limited Warranty
One (1) year Parts and Labor PLUS Four (4) years context of this Limited Warranty, “refurbished” means a part or Product Parts-Only Warranty on pro-rated terms that Hatco that has been returned to its original specifications by Hatco or a Hatco- will explain at Buyer’s request: authorized service agency. -
Page 24: Authorized Parts Distributors
HATCO AUTHORIzED PARTS DISTRIBUTORS ALABAMA IOWA NEW yORK TEXAS Jones mcLeod appl. Svc. Electric motor Service Co. acme american Repairs, Inc. GCS Service Birmingham 205-251-0159 Davenport 319-323-1823 Brooklyn 718-456-6544 Fort Worth 800-433-1804 Goodwin Tucker Group alpro Service Co. armstrong Repair Service...
