Modular Built-In Insulated Heated Wells
This manual contains important safety information
concerning the maintenance, use and operation of this
product. Failure to follow the instructions contained in this
manual may result in serious injury. If you're unable to
understand the contents of this manual, please bring it to
the attention of your supervisor. Do not operate this
equipment unless you have read and understood the
contents of this manual.
HWBI Series
Installation &
Operating Manual
I&W #07.05.178.00
Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por
favor pregunte a su supervisor. No opere este
equipo al menos que haya leído y comprendido el
contenido de este manual.
Advertisement
Table of Contents
Related Manuals for Hatco HWBI-1DA
Summary of Contents for Hatco HWBI-1DA
- Page 1 Modular Built-In Insulated Heated Wells Operating Manual This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you’re unable to understand the contents of this manual, please bring it to the attention of your supervisor.
-
Page 2: Table Of Contents
CAUTION without the symbol signifies the possibility of equipment or property damage only. Hatco Modular Built-In Heated Wells are a product of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance and optimum performance. -
Page 3: Important Safety Information
Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to... -
Page 4: Model Designation

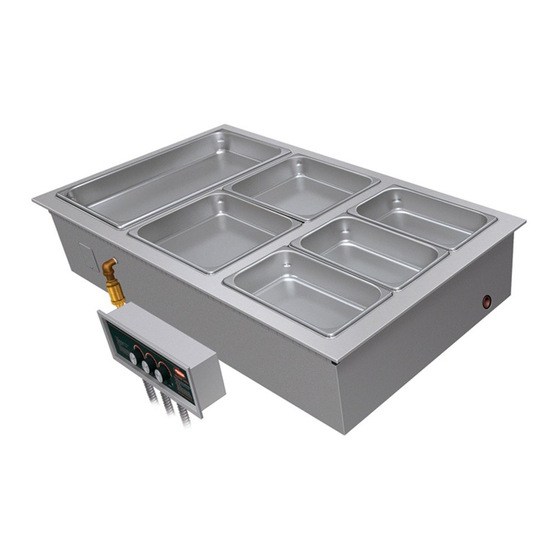

Excessive temperatures could cause damage to the unit. Damage to countertop material such as Corian generated from Hatco equipment is not covered under the Hatco warranty. Contact the manufacturer of the base material for application information. To assure proper operation the remote mounted control box must be installed in the vertical position. - Page 5 Each drain includes a 3/4" NPT drain fitting and flat drain screen that allows for pans to stay level for consistent temperatures. HWBI-1DA, 2DA, 3DA, 4DA & 5DA MODELS HWBI-DA models are equipped the same as the HWBI-D models, but also include the optional Auto- Fill feature.
-
Page 6: Specifications
SPECIFICATIONS Voltage Model HWBI-1 Series 220-230 (CE) 230-240 (CE) HWBI-2 Series 220-230 (CE) 230-240 (CE) HWBI-3 Series 220-230 (CE) 230-240 (CE) HWBI-4 Series 208† 240† 220-230 (CE) 230-240 (CE) HWBI-5 Series 208† 240† 220-230 (CE) 230-240 (CE) The electrical information in the shaded areas pertains to Export models only. NOTE: Shipping Weight includes packaging. -
Page 7: Dimensions
DIMENSIONS Width Model HWBI-1 Series 15-1/2" 23-5/8" (394 mm) (600 mm) HWBI-2 Series 29-1/2" 23-5/8" (749 mm) (600 mm) HWBI-3 Series 43-1/2" 23-5/8" (1105 mm) (600 mm) HWBI-4 Series 57-1/2" 23-5/8" (1461 mm) (600 mm) HWBI-5 Series 71-1/2" 23-5/8" (1816 mm) (600 mm) HWBI-2 SERIES Depth... -
Page 8: Installation
Damage to countertop material such as Corian and similar products caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact the manufacturer of the base material for application information. -
Page 9: Built-In Stud System
Note: EZ locking mounting systems works on countertops that have a maximum thickness of 3/16" (5 mm). Twist as many tabs as needed to secure unit into countertop. 6. Using a razor, carefully trim the excess gasket putty material and remove. BUILT-IN STUD MOUNTING SYSTEM NOTE: Cut opening for both the unit and the control box before placing unit into countertop opening. - Page 10 INSTALLATION COUNTERTOP CUTOUT — HWBI-1 SERIES Unit Opening Mounting Width EZ Tabs 14-1/8" to 14-3/8" (358-365 mm) Studs 14-1/8" to 14-5/16" (358-364 mm) Through Holes 14-1/8" to 14-5/16" (358-364 mm) COUNTERTOP CUTOUT — HWBI-2 SERIES Unit Opening Mounting Width EZ Tabs 28-1/8"...
- Page 11 COUNTERTOP CUTOUT — HWBI-5 SERIES Unit Opening Mounting Width EZ Tabs 70-1/8" to 70-3/8" (1781-1787 mm) Studs 70-1/8" to 70-5/16" (1781-1786 mm) Through Holes 70-1/8" to 70-5/16" (1781-1786 mm) HWBI-1 SERIES HWBI-3 SERIES Unit Opening Mounting Holes Depth Width Between Holes 22-1/4"...
-
Page 12: Remote Mounted Control Box
INSTALLATION REMOTE MOUNTED CONTROL BOX WARNING For proper and safe operation the remote control box location must be mounted on a vertical wall. CAUTION To assure proper operation the remote mounted control box must be installed in the vertical position. NOTE: A qualified electrician is recommended for connecting the Heated Well units to a power source. - Page 13 REMOTE CONTROL MOUNTING HWBI-1 SERIES Width Control 10-1/8 w/Auto-Fill (257 mm) Control 5-3/4" w/o Auto-Fill (146 mm) HWBI-2 SERIES Width Control 12-3/8" w/Auto-Fill (314 mm) Control 8" w/o Auto-Fill (203 mm) HWBI-3 SERIES Width Control 14-5/8" w/Auto-Fill (371 mm) Control 10-1/4"...
- Page 14 INSTALLATION REMOTE CONTROL MOUNTING HWBI-4 SERIES Width Left Control 12-3/8" w/Auto-Fill (314 mm) Left Control 8" w/o Auto-Fill (203 mm) Right Control 8" (203 mm) Control Box 16-7/8" w/Auto-Fill (429 mm) Control Box 12-1/2" w/o Auto-Fill (318 mm) HWBI-5 SERIES Width Left Control 12-3/8"...
-
Page 15: Drain Assembly Models
DRAIN ASSEMBLY MODELS WARNING The drain water may reach temperatures in excess of 200° (93°C). To avoid any injury or damage to the unit use appropriate plumbing materials when installing drain. For proper drain plumbing installation conforming to local plumbing codes, consult a licensed plumbing contractor. -
Page 16: Auto-Fill Models
INSTALLATION AUTO-FILL MODELS 1. Apply Teflon tape to elbow threads and connect the elbow onto the fitting located in well. (See Figure 13.) 2. Connect the other end of the tubing to the nipple in the control box and secure with hose clamp. (Disassemble the control box cover to access the nipple.) Control Box... -
Page 17: Operation
This is a temporary condition. To assure safe operation, operate unit without food product until smoke dissipates. Hatco Modular Built-In Heated Wells are designed for WET or DRY operation. NOTE: Warmers cannot be used wet-to-dry or dry-... -
Page 18: Maintenance
MAINTENANCE GENERAL The Hatco Modular Built-In Heated Wells are designed for maximum durability and performance, with minimum maintenance. WARNING To prevent electrical shock or injury, turn the power switch OFF, disconnect the unit from the power source and allow to cool before performing any maintenance. -
Page 19: Accessories
Some aftermarket or generic replacement parts characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. -
Page 20: Hatco Limited Warranty
Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense. - Page 21 NOTES Form No. HWBIM-0107...
- Page 22 NOTES Form No. HWBIM-0107...
- Page 23 NOTES Form No. HWBIM-0107...
-
Page 24: Authorized Parts Distributors
INDIANA GCS Service Indianapolis 317-545-9655 P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A. Parts & Service Fax (800) 690-2966 Printed in U.S.A. January 2007 HATCO AUTHORIZED PARTS DISTRIBUTORS NEW YORK Acme American Repairs, Inc. 319-323-1823 Brooklyn Alpro Service Co. 515-262-9308 Brooklyn...
