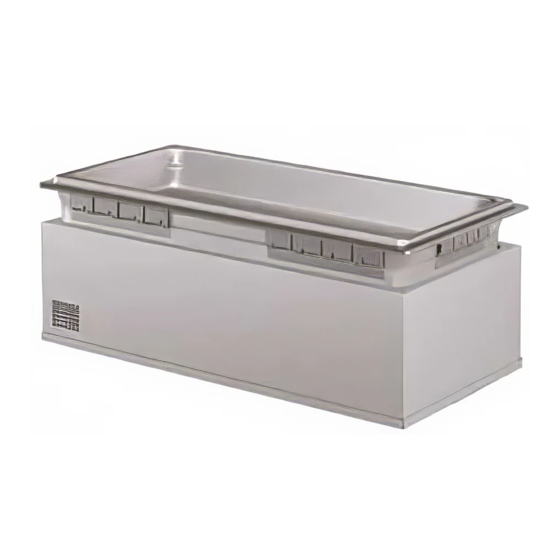

Hatco HWBLI-FUL Specifications

INSUL TED SINGLE
Models HWBLI-FUL, -FULD HWBLIB-FUL, -FULD HWBLIB-FULDA HWBI-FUL, -FULD HWBIB-FUL, -FULD HWBIB-FULDA
HWBHI-FUL, -FULD HWBHIB-FUL, -FULD HWBHIB-FULDA
Model
HWBI-FUL 12.75" (324 mm)
•
HWBI-FUL
HWBIB-FUL L 12.03" (306 mm)
HWBIB-FULDA 12.03" (306 mm)
• Indicates cutout dimensions for a combustible countertop surface.
L Must be flanged.
ANSI/NSF 4
ITEM#
BUILT-IN HE TED WELLS
Minimum Width Maximum Width Minimum Depth
12.94" (328 mm) 20.75" (528 mm)
14" (356 mm) 14.25" (362 mm)
12.03" (306 mm) 20.03" (509 mm)
12.03" (306 mm) 20.03" (509 mm)
Maximum Depth Below Counter
20.94" (531 mm) 9.45" (240 mm)
22" (559 mm) 22.25" (565 mm) 9.45" (240 mm)
20.03" (509 mm) 9.45" (240 mm)
20.03" (509 mm) 9.45" (240 mm)
