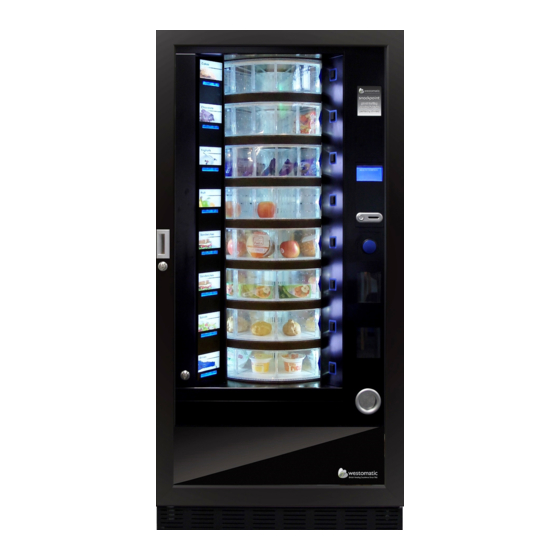

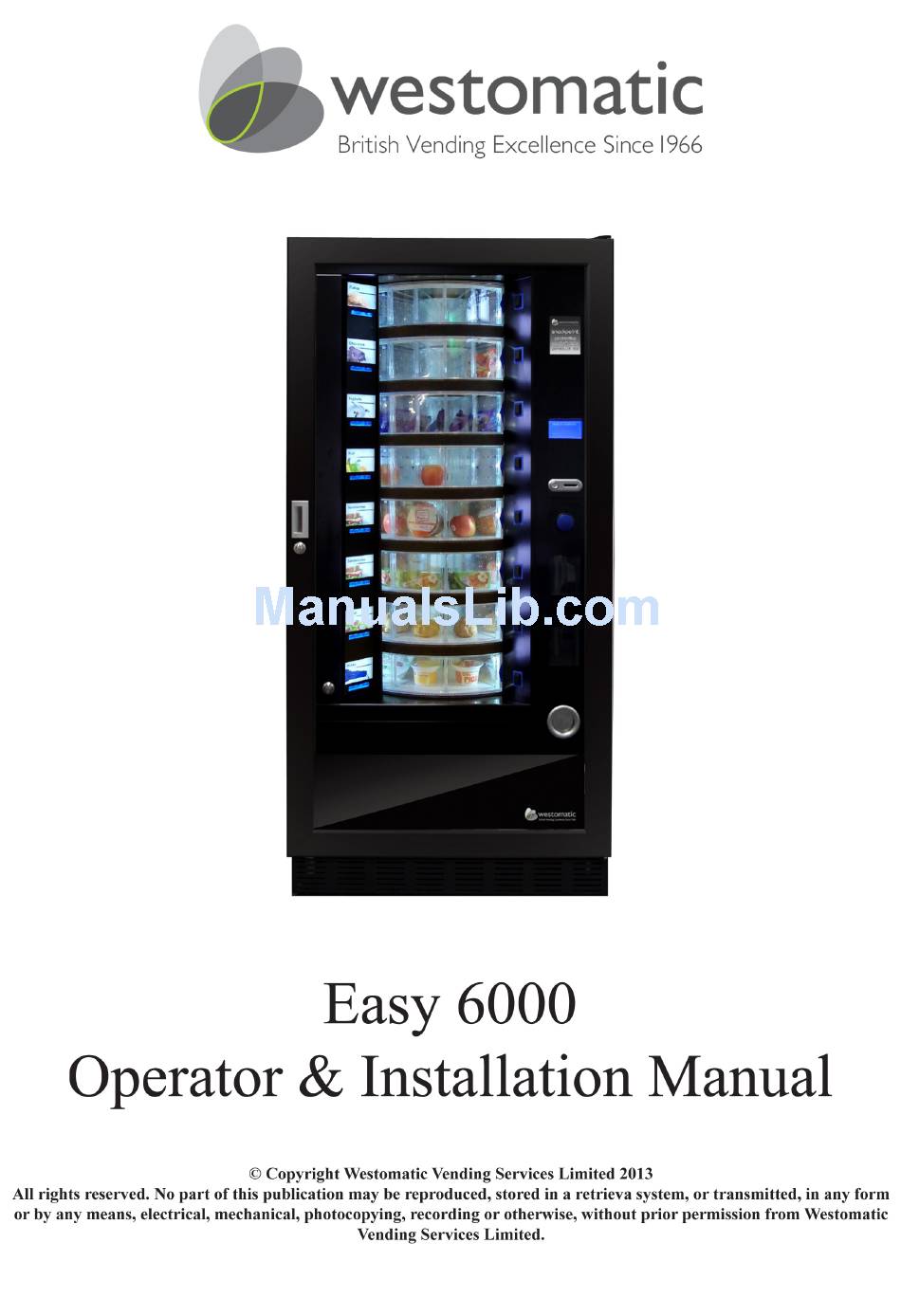

Westomatic Easy 6000 Operator And Installation Manual
  1. Manuals
  2. Brands
  3. Westomatic Manuals
  4. Vending machines
  5. Easy 6000
  6. Operator and installation manual

Westomatic Easy 6000 Operator And Installation Manual

Hide thumbs Also See for Easy 6000:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easy 6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westomatic Easy 6000

Summary of Contents for Westomatic Easy 6000

  • Page 2: Table Of Contents

    EASY 6000 – Issue 02 INDEX FOREWORD ............................ 2 TO IDENTIFY THE MACHINE ......................2 LOCATION OF THE STICKERS ...................... 2 SAFETY ............................4 EMERGENCY SITUATIONS ......................4 CONSULTATION GUIDE ......................... 5 USE OF THE VENDING MACHINE FOR THE SALE OF FOOD PRODUCTS ....... 6 TECHNICAL DATA ..........................

  • Page 3: Foreword

    EASY 6000 – Issue 02 FOREWORD This manual has been prepared for the most complete model: consequently there may be descriptions or explanations which do not apply to your machine. This documentation is an integral part of the machine and must therefore accompany every transfer of property or of the company.
  • Page 4 EASY 6000 – Issue 02 Complete identification plate Identification plate Safety sticker indicating danger from rotating parts Safety sticker indicating surfaces at high temperatures Safety sticker indicating voltage supplied Disposal in compliance with EU 2002/96/CE standards, according to the implementation of the Directive into the national law.

  • Page 5: Safety

    EASY 6000 – Issue 02 SAFETY This appliance is not intended for use by person (includine children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 6: Consultation Guide

    EASY 6000 – Issue 02 CONSULTATION GUIDE SYMBOL MEANING COMMENT DANGER Indicates a danger, even mortal, for the User. Indicates a warning or notes on key functions or useful information. Pay careful attention to those parts of the text indicated by this symbol.

  • Page 7: Use Of The Vending Machine For The Sale Of Food Products

    EASY 6000 – Issue 02 The operations described in this manual relative to each phase of the life cycle of the machine have been carefully analysed by the manufacturer. The number of operators and the level of expertise requested are therefore the most suitable for best performing each specific operation.

  • Page 8: Technical Data

    EASY 6000 – Issue 02 TECHNICAL DATA Height H = 1830 mm Width L = 910 mm Depth P = 795 mm P1 = 1670 mm Weight without packing 315 kg Rated Voltage see identification plate Rated power see identification plate...

  • Page 9: Door Parts

    EASY 6000 – Issue 02 DOOR PARTS Selection button: this button must be pressed for selection and purchase. Coin return button: this push button is used to release any coins jammed in the coin mechanism and return them to the coin return cup.

  • Page 10: Internal Parts

    EASY 6000 – Issue 02 INTERNAL PARTS Drum rotation motors Delivery door motors Electric panel: it is installed in the bottom part of the cabinet, it supplies power to the drum drive motors and the delivery door drive motors. It is fitted with a safety switch that cuts off power to the vending machine‟s electrical system, by simply removing the red key from the slot.

  • Page 11: Transport, Storage, Unpacking Procedure

    EASY 6000 – Issue 02 TRANSPORT, STORAGE, UNPACKING PROCEDURE Examine the machine both inside and outside and notify the carrier immediately of any damage. TRANSPORT AND STORAGE In order not to cause damages to the distributor, the loading and unloading manoeuvring have to be performed with particular care.

  • Page 12: Installation

    EASY 6000 – Issue 02 INSTALLATION The vending machine must be installed on a surface (floor, intermediate floor) of suitable bearing capacity. The appliance is not suitable for external installation as it must not be exposed to direct sunlight or be installed where water jets may be used. The appliance is suitable for installation in locations where the ambient temperature ranges between 3°C and 32°C.

  • Page 13: Warnings For The Installation

    EASY 6000 – Issue 02  To power up the machine proceed as follows: connect the power cable to the electric power outlet. If the message "MEMORY CLEARED" appears on the display press the button located on the main board inside the coin mechanism box to initialise the memory.
  • Page 14 EASY 6000 – Issue 02 BLANK PAGE FOR POSSIBLE NOTES FAS INTERNATIONAL S.p.A. Via Lago di Vico, 60 SCHIO (VI) – tel. +39 0445 502011 – fax +39 0445 502010 - e-mail: info@fas.it...

  • Page 15: Programming Procedure

    EASY 6000 – Issue 02 PROGRAMMING PROCEDURE Open the door, keep the mode pushbutton (TEST) pressed down for approximately 2 seconds until the message "Command 00" appears on the second line of the display and the buzzer emits a long signal. The first display line will indicate that the machine is in "programming mode".

  • Page 16: List Of Programme Commands

    EASY 6000 – Issue 02 LIST OF PROGRAMME COMMANDS ACCESS TO SUBMENUS Command Machine test Command Calls submenu for setting the clock & daily timers Command Recall of price setting submenu Command Calls submenu for setting discounted prices Command Recall the price reference setting submenu...
  • Page 17 EASY 6000 – Issue 02 SETTING THE DRUM PARAMETERS Compts FIFO (1) / Shop (0) Expiry Command To configure drum 1 (def.24) (def.0) (def.99) To configure drum 2 " " " Command Command To configure drum 3 " " "...

  • Page 18: Access To The Submenus

    EASY 6000 – Issue 02 8.2.1 ACCESS TO THE SUBMENUS Command 01 Machine test: This is used to carry out a functional test on the machine. When you type 01 followed by ENTER, the message "Choose the test to carry out ... 1 or 2 or 3". When you select number 1, you set an automatic test and the display will show “Column rotation x”.
  • Page 19 EASY 6000 – Issue 02 Compartment layout if the drums are divided into 2 sections. Compts Compts Compts Compts Compts Compts Compts 1-12 1-24 Sect 7-12 9-16 13-24 25-48 Sect Compartment layout if the drums are divided into 3 sections.

  • Page 20: Setting The Temperature Parameters

    EASY 6000 – Issue 02 MULTIPRICE If command 58 is set at 2 (2 prices for each drum) or 3 (3 prices for each drum) the machine works by price line and therefore the programming procedure is the following: For example, proceed as follows if you want to display the number of sales made at price 19 (products...

  • Page 21: To Set Machine Parameters

    EASY 6000 – Issue 02 Command 46 Setting the safety temperature: This command is for setting the temperature the safety device trips at, namely the temperature above which the vending machine goes out of service while the display will show a warning message. This control is inhibited when turned on and after closing the door for the time set by command 45.
  • Page 22 EASY 6000 – Issue 02 Command 55 Programming the product expiry time: This command makes it possible to program the time, with regard to the expiry day, after which the product will have expired. Enter the exact value in hours and minutes and press ENTER to save it.
  • Page 23 EASY 6000 – Issue 02 Command 58 Price configuration: In response to this command, a number that corresponds to the subdivision of the prices for each drum is displayed. The following possibilities are available: a) 1 price: the value to set is 1 which corresponds to associating prices 1-8 to drums 1-8.
  • Page 24 EASY 6000 – Issue 02 Command 64 Sets the message display language: This command controls the language in which the messages are displayed. Value 0 corresponds to Italian, value 1 to English, value 2 to French, value 3 to German, value 4 to Dutch, value 5 to Swedish, value 6 to Finnish and value 7 to Spanish 8 to Portuguese 9 to Danish 10 to Norwegian.

  • Page 25: Setting The Drum Parameters

    (EASY 6000); value settable from 0 to 180 sec. The heating times are calibrated for use with the maximum power output.
  • Page 26 EASY 6000 – Issue 02 Command 90 Select AUDIT protocol: The control card has a jack RS232. The connector I/O is a 9 poles with male container in which the following pins are used: - Pin 2 - Pin 7...
  • Page 27 EASY 6000 – Issue 02 Command 94 Displays the last 10 power-offs: This command displays the last 10 periods in which the machine has been put off. The following values are displayed: POWER OFF DATE TIME POWER ON DATE TIME To pass to another display press pushbutton ENTER.
  • Page 28 EASY 6000 – Issue 02 Command 99 View error events: This command displays the last 20 error events; to go from one display to another press the ENTER key. At the end of the display, the system asks the user to confirm the clearing of all the data. Press ENTER to confirm or ESC to leave the records as they are.

  • Page 29: Submenu For Setting The Clock & Daily Event Timers (See Command 02)

    EASY 6000 – Issue 02 SUBMENU FOR SETTING THE CLOCK & DAILY EVENT TIMERS (SEE COMMAND 02) Alarm set 01 Sets the year/month/day: This command is used to set the year, month and day on the clock in the control board. The introduction format is YYMMDD.

  • Page 30: Use Of Coinmechanism Bdv 001

    EASY 6000 – Issue 02 USE OF COINMECHANISM BDV 001 The coin mechanism must only be connected/disconnected with the machine switched off. After having carried out the connection, switch on the machine, enter the programming and set command 69 to 4, then switch off the machine for some seconds. By switching it on again the machine and the coin mechanism will communicate correctly.
  • Page 31 EASY 6000 – Issue 02 Command 34 Coin inhibition with exact amount: This command blockes the acceptance of particular coins in case of small return, i.e. when the display views the message "Insert only exact amount". Command 35 Coin level message exact amount: A value between 0 and 15 representing the number of coins to be added to the minimum level fixed in the coin return tubes - can be programmed, in order to quit the “exact amount”...

  • Page 32: Use Of Payment Systems Mdb

    EASY 6000 – Issue 02 USE OF PAYMENT SYSTEMS MDB The coin mechanism must only be connected/disconnected with the machine switched off. The command 69 has to be programmed to value 5, then turn off the machine for some seconds. By putting it on again the machine and the coin mechanism will comunicate correctly.
  • Page 33 EASY 6000 – Issue 02 Command 33 Disabling single coins / banknotes: This command allows you to perform the two adjustments described below: 1) To block acceptance of particular coins by the coin mechanism. 2) To block acceptance of particular banknotes by the reader.

  • Page 34: Using The Executive Std/Executive Price Holding Payment Systems

    EASY 6000 – Issue 02 USING THE EXECUTIVE STD/EXECUTIVE PRICE HOLDING PAYMENT SYSTEMS Command 39 Filling in of the change giving tubes: Proceed as follows: 1. Go into programming mode to display ................Command 00 2. Key in 39 and press ENTER 3.

  • Page 35: Product Refilling / Sale

    EASY 6000 – Issue 02 PRODUCT REFILLING / SALE GUIDELINES FOR LOADING PRODUCTS When the machine is switched on for the first time, wait approximately 12 hours for the machine to reach the operating temperature. In any case, check that the internal part of the machine has dropped below 4°C before placing the refrigerated products (see Command 66 and Command 67).

  • Page 36: Product Filling, Smart Mode (See Command 51)

    EASY 6000 – Issue 02 9.2.1 PRODUCT FILLING, SMART MODE (SEE COMMAND 51) The product filling date is stored with this refilling mode; the machine is therefore able to recognize an expired product. To operate correctly it is necessary to enter the date, time and no. of days to expiry (see commands 71-78).

  • Page 37: Adjustments

    EASY 6000 – Issue 02 ADJUSTMENTS Disconnect power by turning the general switch to "off" and disconnect the feed plug before starting the operations. 10.1 DRUM REMOVAL To remove the drum from the drawer carry out the following procedure: Open the main door of the vending machine and disconnect the power supply by turning the main switch to the OFF position;...

  • Page 38: Product Compartments

    EASY 6000 – Issue 02 10.3 PRODUCT COMPARTMENTS It may be necessary to change the dimensions of the compartments to accommodate different types of products. The number of compartments can be varied by removing or adding dividers. The number of spaces per drum can be: 4, 6, 8, 12, 16, 24, 48.

  • Page 39: Adjusting Opening Of The Delivery Doors

    EASY 6000 – Issue 02 10.5 ADJUSTING OPENING OF THE DELIVERY DOORS Having varied the dimensions of the compartments, opening of the delivery doors must also be modified. To perform this operation correctly, follow the instructions below: 1) With the power supply cut off after turning the main switch to OFF.

  • Page 40: Instructions For Replacing The Internal Lighting Device

    EASY 6000 – Issue 02 10.7 INSTRUCTIONS FOR REPLACING THE INTERNAL LIGHTING DEVICE  Switch off the machine by means of the main switch and disconnect the plug.  Open the main door.  Remove the cover from the light source.

  • Page 41: Cleaning Instructions

    EASY 6000 – Issue 02 CLEANING INSTRUCTIONS These operations, which concern safety and hygiene, must be carried out by personnel having practical experience with this machine. Adequate recurring maintenance of machine grants its reliability in operation. This section describes the required maintenance operations and their frequency which has however to be considered as indicative since it depends upon various factors such kind of products, climatic conditions and, especially, humidity.
