Quattro
FX
TM
FULL FACE MASK
User Guide
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quattro FX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ResMed Quattro FX

Summary of Contents for ResMed Quattro FX

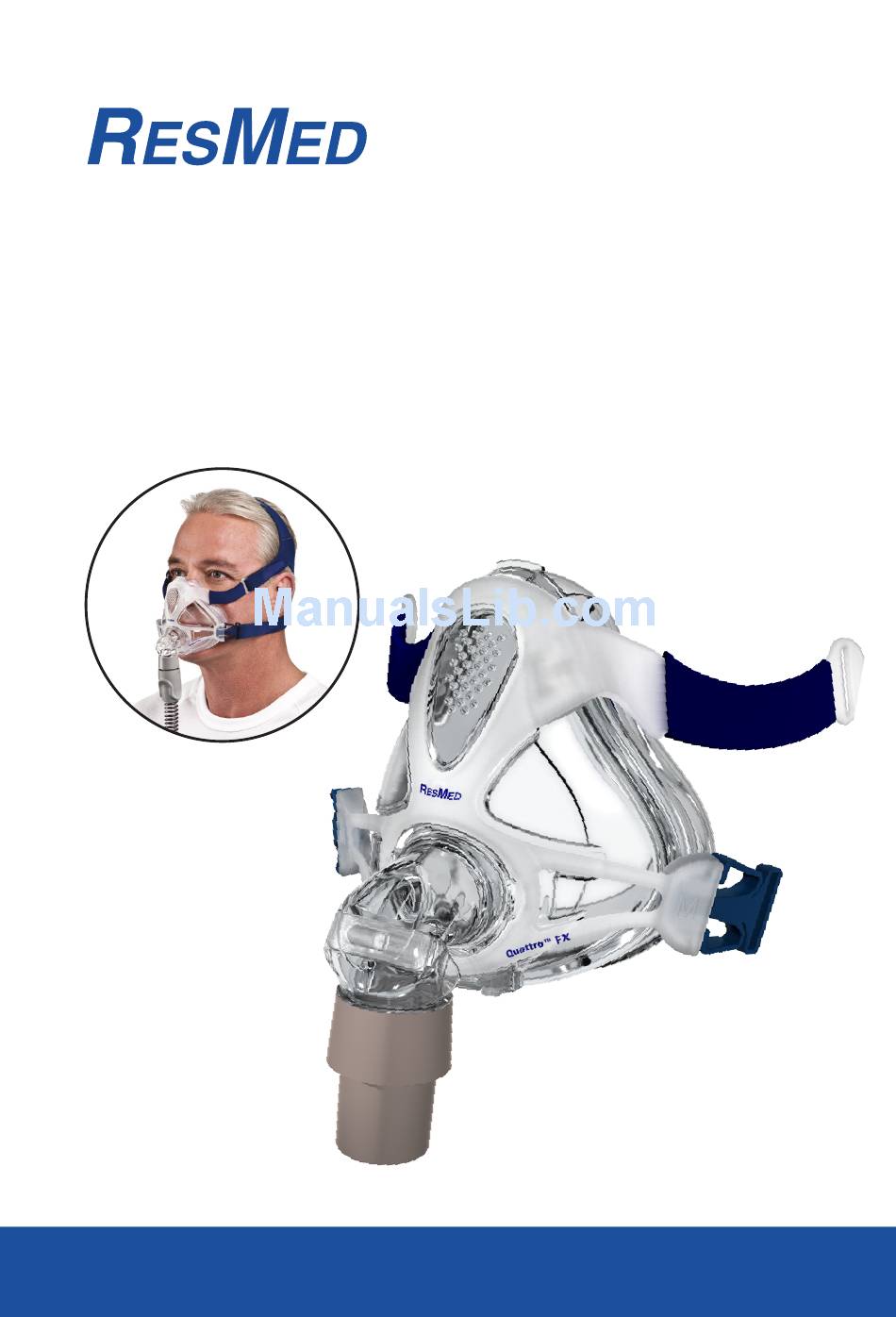

  • Page 1 Quattro FULL FACE MASK User Guide English...
  • Page 2 Quattro™ FX FULL FACE MASK / FULL FACE MASKE / MASQUE FACIAL / MASCHERA ORO-NASALE Fitting / Anlegen / Mise en place / Applicazione...
  • Page 3 Headgear position / Kopfbandposition / Position du harnais / Posizione del copricapo Cushion check / Sitz der Maske / Vérification de la bulle / Verifica cuscinetto Disassembly / Auseinanderbau / Démontage / Smontaggio...
  • Page 4 Reassembly / Zusammenbau / Remontage / Riassemblaggio...
  • Page 5 Quattro FX...
  • Page 6 Mask components / Maskenkomponenten / Composants du masque / Componenti della maschera Item / Description / Beschreibung / Description / Part number / Artikel / Descrizione Artikelnummer Article / / Code produit / Elemento Codice prodotto 61759 (S) Spring frame* / Flexi-Rahmen* / Entourage 61760 (M) flexible* / Telaio elastico* 61761 (L)
  • Page 7 Valve & clip / Ventil und Clip / Valve et clip / 61286 (1) Valvola e fermaglio 61287 (10) 61703 (S) Complete system / Komplettes System / Système 61704 (M) complet / Maschera con tutti i componenti 61705 (L) Elbow assembly / Kniestück / Ensemble coude 61294 / Gruppo del gomito * Includes 1, &...

  • Page 8: Intended Use

    English Quattro ™ FULL FACE MASK Thank you for choosing the Quattro FX. Please read the entire manual before use. Intended use The Quattro FX channels airflow noninvasively to a patient from a continuous positive airway pressure (CPAP) or bilevel device.

  • Page 9: Using Your Mask

    Using your mask When using your mask with ResMed CPAP or bilevel devices that have mask setting options, refer to the Technical specifications section in this user guide for mask selection options. For a full list of compatible devices for this mask, see the Mask/Device Compatibility List on www.resmed.com on the Products page under Service...
  • Page 10 Ensure your headgear is positioned correctly. Refer to the Headgear check illustrations in this guide. • The Quattro FX cushion is designed to sit mid-bridge. Refer to the Cushion check illustrations for correct positioning. Removing your mask To remove your mask, disconnect the lower headgear clips and pull the mask and headgear up over your head.
  • Page 11 Reassembly Refer to the reassembly illustrations in this guide. Reassembly Steps Insert the valve into the clip. Push the valve clip onto the elbow and insert the swivel into the end of the elbow. Replace the ports cap. Fit the cushion into the channel of the frame. Fit the top section first, then work your way around, pushing the cushion into the frame.
  • Page 12 Cleaning your mask in the home Your mask and headgear should only be gently handwashed. Daily/After each use: • Disassemble the mask components according to the disassembly instructions. • Thoroughly clean the separated mask components (excluding headgear), by gently rubbing in warm (approximately 30°C) water using mild soap. •...

  • Page 13: Reprocessing The Mask Between Patients

    Talk to your clinician to have your face size size. checked against fitting template. Note that sizing across different masks is not always the same. The Quattro FX cushion is designed to sit mid-bridge. Headgear is touching top Remove and refit your mask according to the of ears.
  • Page 14 Talk to your clinician to have your face size size. checked against fitting template. Note that sizing across different masks is not always the same. The Quattro FX cushion is designed to sit mid- bridge. Spring frame incorrectly Remove the spring frame from the frame, then fitted to frame.
  • Page 15 WARNING • The technical specifications of the mask are provided for your clinician to check that they are compatible with the CPAP or bilevel device. If used outside specification or if used with incompatible devices, the seal and comfort of the mask may not be effective, optimum therapy may not be achieved, and leak, or variation in the rate of leak, may affect the CPAP or bilevel device function.

  • Page 16: Technical Specifications

    Technical specifications The mask contains passive venting Pressure–flow curve Pressure Flow to protect against rebreathing. As a (cm H (L/min) result of manufacturing variations, the vent flow rate may vary. Mask pressure (cm H Physical dead space is the empty volume of the mask to the Dead space end of the swivel.

  • Page 17: Consumer Warranty

    Keep away from rain; This way up; Fragile, handle with care. Consumer Warranty ResMed acknowledges all consumer rights granted under the EU Directive 1999/44/EG and the respective national laws within the EU for products sold within the European Union.
  • Page 18 Manufacturer: ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia Distributed by: ResMed Corp 9001 Spectrum Center Boulevard San Diego CA 92123 USA ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK See www.resmed.com for other ResMed locations worldwide.
  • Page 19 618122/1 2010-06 QUATTRO FX USER ROW - ENG Global leaders in sleep and respiratory medicine www.resmed.com...
