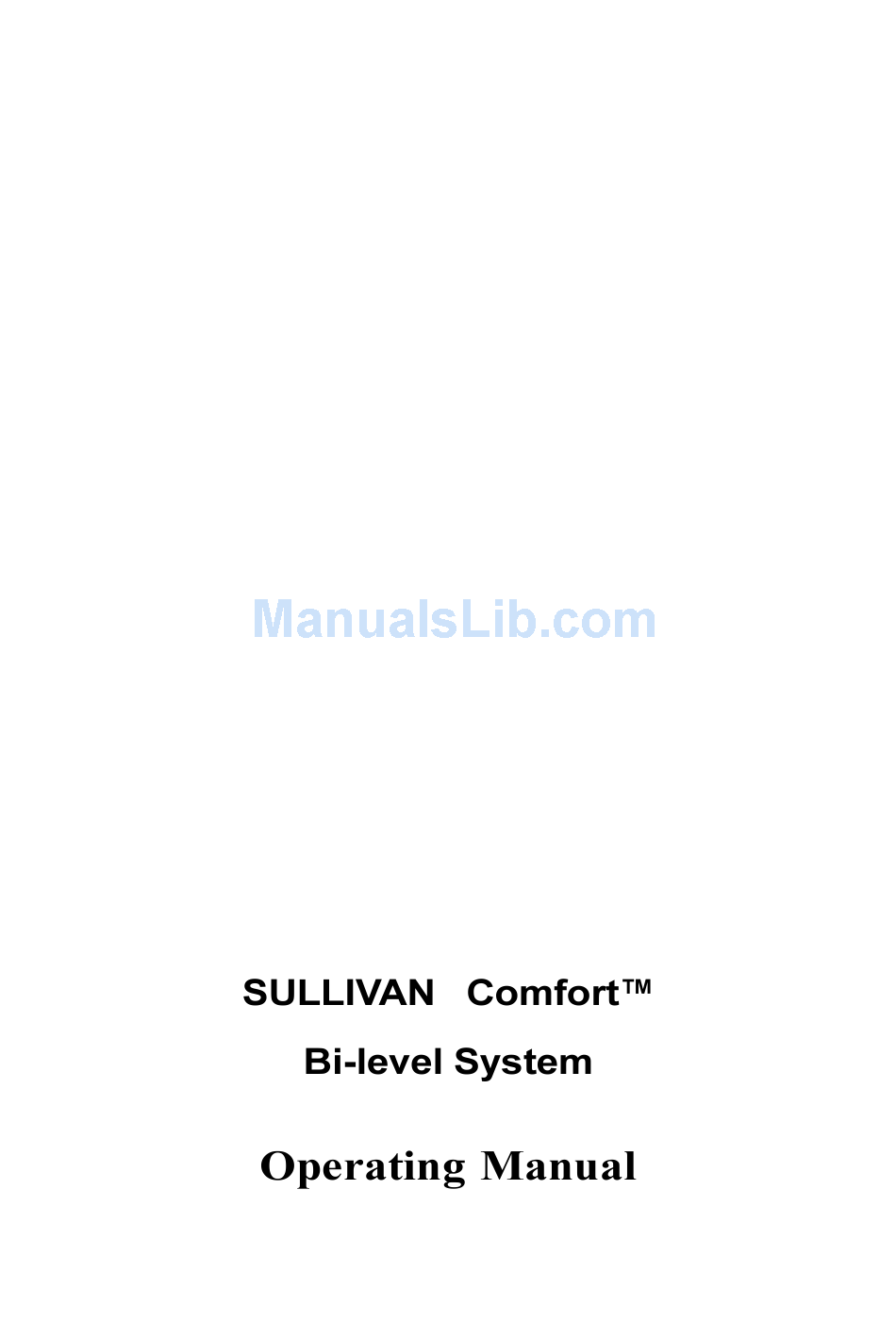

- Page 1 ®...
- Page 2 Complete the following details when you receive your SULLIVAN Unit prescribed by (physician) Sleep clinic Date prescribed Prescribed pressures: IPAP EPAP Prescribed IPAP maximum time Delay timer maximum setting Mask model and size Flow generator serial no. Date of purchase For service, call: Equipment supplier Telephone no.
- Page 3 ® ®...
- Page 4 Obstructive sleep apnea or OSA occurs when the tongue and soft palate relax during sleep, blocking the airway and cutting off the brain’s supply of oxygen. To treat OSA, nasal CPAP (Continuous Positive Airway Pressure) was developed in 1981 by Dr Colin Sullivan in Australia. In CPAP treatment, a flow generator unit provides air through a nose mask at a slightly raised pressure which keeps the airway open.
- Page 5 It can also be used in trucks and recreational vehicles. See section 7, Use in different countries. The SULLIVAN Comfort bi-level nasal system is for the treatment of obstructive sleep apnea in adult patients.
- Page 6 – to connect the flow generator to the mask; adjustable headgear – to attach the mask to your head; and a nasal cushion. For details on the range of accessories available, refer to section 12, Accessories and spare parts. SULLIVAN Comfort bi-level system ® ®...
- Page 7 The mask frame has two access ports which should be plugged and are not used except for initial pressure setting by a technican. It has a swivelling mask elbow which allows the air tubing to be positioned without kinks. The air outlet vent allows exhaled air to escape quietly.
- Page 8 Fit the headgear to the mask frame as shown below. • Thread the headgear straps through the slots in the mask frame – the lower straps should also pass through the slots on the cushion. Note: If using the ResCap™, position the straps so that the sewn on “ResCap”...
- Page 9 Switch the main switch at the rear of the flow generator on (I). Press the START button on the front panel (see figure below). Allow the unit to run for a few seconds, then press the STOP button. Positioning the flow generator •...
- Page 10 The air tubing should already be fitted at one end with the air tubing connector which inserts into the flow generator. If not, press the barbed end of the connector into the air tubing as shown below. Make sure it is firmly attached. Press the air tubing connector firmly into the air outlet on the flow generator.
- Page 11 The mask frame and headgear should be assembled as described in section 3, Preparing for use. To fit the mask to your face: Loosen the headgear straps and pull the headgear over your head. Make sure the straps are sufficiently loose so that the nasal cushion is not pulled against your nose.
- Page 12 Connect the air tubing to the mask and flow generator. Switch the main power switch at the rear of the unit to on (I). (See section 3, Preparing for use.) The unit will either be in standby mode (as indicated by the light above the STOP button) or it will start operating –...
- Page 13 * The pressure strip light display gives an approximate indication of the pressure you are receiving. You will notice that the indicator lights fluctuate as the unit switches between your IPAP and EPAP pressures. If you prefer to have the air pressure build up gradually while you fall asleep, select one of the delay timer buttons on the front panel (see figure above).
- Page 14 Press the STOP button to stop the flow generator. To remove the mask, stretch the headgear slightly and pull it over your head. Or release one of the bottom headgear straps. When you are ready to go back to sleep, put your mask back on and restart the flow generator by pressing START or a delay timer button.
- Page 15 • Some people experience a continuing dryness of the nose, mouth or throat when on bi-level treatment, particularly during the winter months. ResMed produces a range of humidifiers to relieve these symptoms. Contact your physician or equipment supplier for specific advice on whether these are suitable for you.
- Page 16 ® • Your SULLIVAN Comfort™ has a switch mode power supply which means it will operate on the different power supplies in other countries. The unit accepts 110-240 V, 50-60 Hz. • No special adjustment to the unit is necessary but you should use the correct adapter for the type of power outlet in the country you are visiting.
- Page 17 ® The SULLIVAN Comfort™ bi-level system is designed to help you have a good night’s sleep. However, you need to be aware of possible problems that may arise during the course of your treatment. If you have concerns about any of these problems consult your physician immediately.
- Page 18 You should regularly carry out the cleaning and maintenance described in this section. These procedures do not require a specialist service organization. After daily use, wipe the inside and outside of the mask frame and nasal cushion with a clean, damp cloth. Disconnect the air tubing at the flow generator and hang the tubing and mask in a clean, dry place until next use.
- Page 19 All items of the mask and air tubing system are subject to normal wear and tear and may eventually need to be replaced. Check periodically for excessive wear in these items. When dirty, remove the headgear and wash it in warm water using a mild detergent (about every two weeks).
- Page 21 ® Your SULLIVAN Comfort™ is designed to give years of trouble-free operation. It is not necessary to send your unit away for regular servicing provided you follow the recommendations in section 9, Cleaning and maintenance. Should you feel that your unit is not performing properly, check section 11, Troubleshooting.
- Page 22 If you have any problems with your SULLIVAN suggestions. If it is still not working properly, consult your equipment supplier or take it to an authorized service agent. Do not attempt to open the flow generator. Power cord not connected properly Flow generator does not start when you Flow generator not switched on...
- Page 23 ® A range of accessories is available to adapt your SULLIVAN Comfort™ to your needs. Contact your sleep clinic or equipment supplier for further information on the following items. Adapts to a wide range of face sizes and features a T-bar for added stability. The outlet vent has been designed to direct exhaled air downwards and away from partner.
- Page 24 Bi-level treatment sometimes results in a dry or runny nose. ResMed produces a range of humidifiers to reduce symptoms and make treatment more comfortable. HC100 Heated Humidifier Your Comfort comes with a two-meter length of air tubing which should be enough for most needs.
- Page 25 ® PERFORMANCE Operating pressure range: 4-18 cm H Maximum IPAP time range: 0.2-10.8 seconds DIMENSIONS (H x W x D) 145 x 240 x 350 mm (5.7 x 9.5 x 13.8 in) WEIGHT 4.1 kg (9.1 lb) POWER SUPPLY Input range 110-240 V, 50-60 Hz, 120 VA HOUSING CONSTRUCTION Injection moulded plastic AIR FILTER STRIPS...
- Page 26 Protected by: AU 699726, AU 713679, EP 0088761 (DE,FR,GB), JP 1697822, US 4944310, US 5199424, US 5522382 Other patents pending SULLIVAN, Bubble Cushion and ResCap are trademark of ResMed Ltd. © 2000 ResMed Ltd. • ResMed GmbH & Co KG Rudolfstraße 10...
