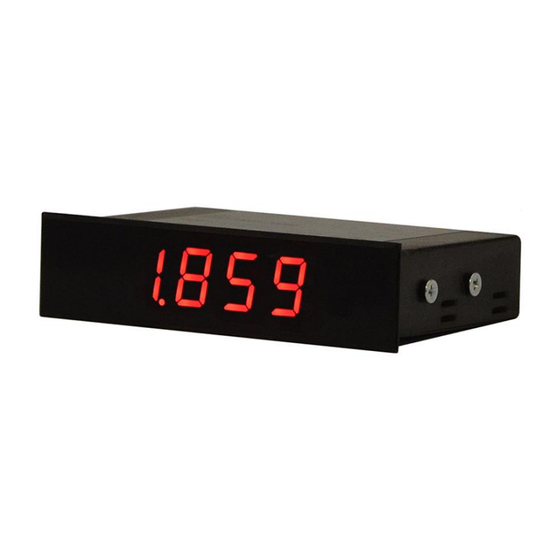

- Page 1 AD Numeric Panel-Mount LED Display with A-D Converter User’s Manual microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 2: Table Of Contents
Installation / Mounting APPENDIX Standard Equipment Optional Accessories Order Numbers Maintenance and Care Warranty / Liability Declaration of Conformity Versions Overview Page 2 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 3: General
Two direct current measuring ranges: 0 to 20 mA and 4 to 20 mA Measuring ranges can be freely selected with SMD slide switches. Page 3 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 4: Applications Example
AD Numeric Panel-Mount LED Display with A-D Converter 2 Applications Example PT 100 Thermocouple Current-Voltage Transformer Tachometer generator Page 4 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 5: Technical Data
Protection: front panel: IP54 or IP65 0 to +50 C Operating temp.: - 20 to +70 C Storage temperature: Page 5 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 6: Zero Balancing
580 to 1999 at 4 mA = 0: 4…20 mA approx. –435 to 75 approx. 580 to 1999 X = not adjustable Page 6 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 7: Connector Pin Assignments
Input range (-) Ground 0 VDC Operating voltage 24 VDC Potentiometer P1 Zero balancing Potentiometer P2 Upper range value adjustment Page 7 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... - Page 8 Numeric Panel-Mount LED Display with A-D Converter DIP Switches Decimal points: Measuring Range from 0 to 20 mA Measuring Range from 4 to 20 mA Page 8 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
- Page 9 Measuring Range from 0 to 2 V Measuring Range from 0 to 10 V Measuring Range from 1 to 5V Page 9 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 10: Housing Dimensions
A rubber gasket seals the device’s front panel against the control panel (IP65). Page 10 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 11: Appendix
Order Number User’s manual (German) X-M21-1S148X-002 User’s manual (English) X-M22-1S148X-002 Mounting materials screw clamps M4 G-S-036 3-pole socket connector M-B-B-E-4-010 Page 11 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 12: Maintenance And Care
Do not attempt to open or repair the device yourself. The guarantee is rendered null and void if the device is tampered with by unauthor- ised persons. Page 12 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 13: Warranty / Liability
“as is”. No guarantee claims may be made in such cases. The General Terms and Conditions of microSYST Systemelectronic GmbH in current version apply as well. Page 13 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 14: Declaration Of Conformity
EN61000-6-4:2007 +A1:2011 EMV Richtlinie 2014/30/EU EMC Directive RoHS Richtlinie EN50581:2012 2011/65/EU RoHS Directive Windischeschenbach, 07.12.2017 Manuel Raß Geschäftsführer / General Manager Page 14 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 15: Versions Overview
2/5/14 Input impedances added 1.90 4/29/16 Declaration of conformity 2.00 12/07/17 Change of address Certified per DIN EN ISO 9001. Page 15 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
