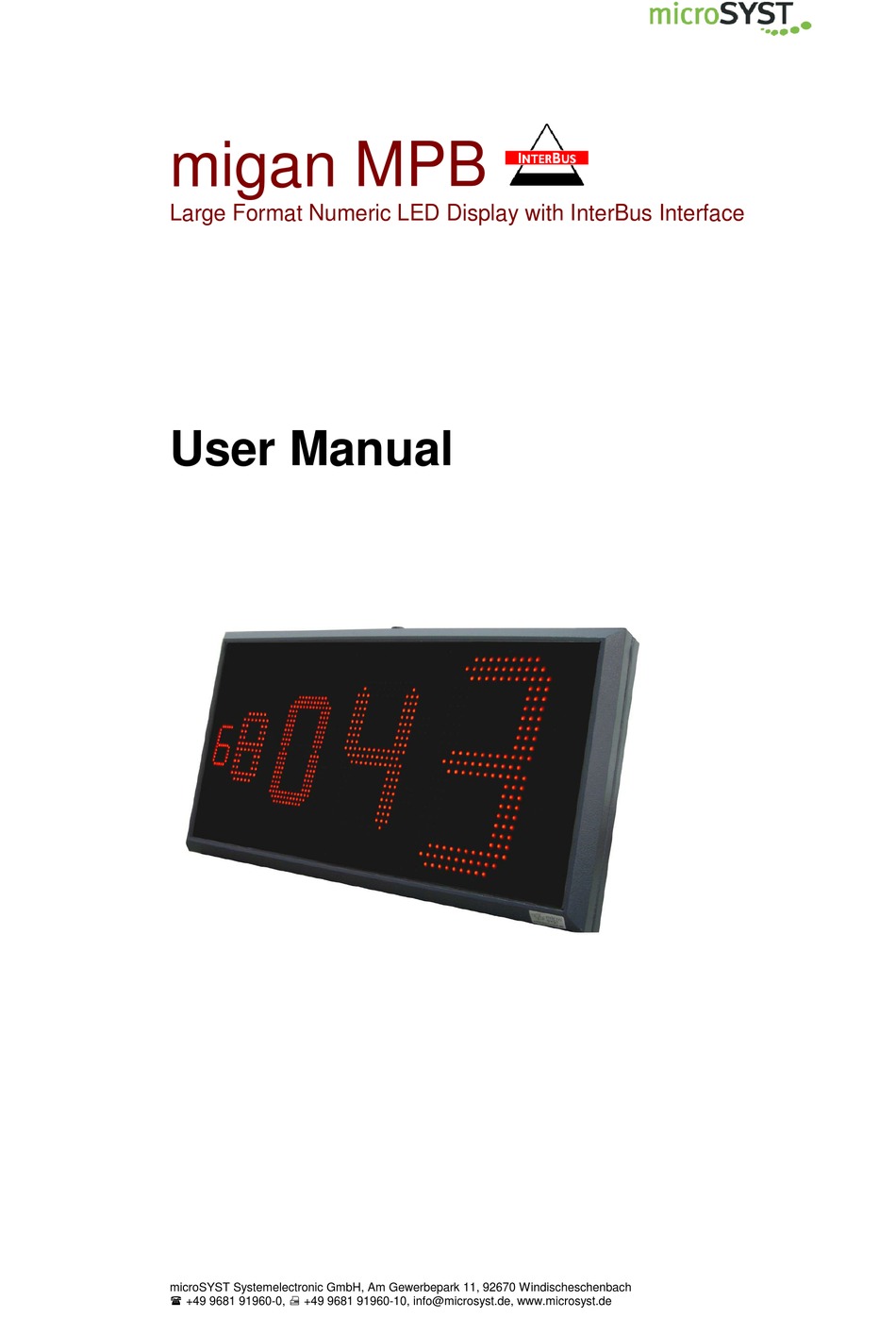

- Page 1 MPB Large Format Numeric LED Display with InterBus Interface User Manual microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 2: Connector Pin Assignments
Response Frame (IB Input – 8 Bytes) CONNECTOR PIN ASSIGNMENTS InterBus-Interface APPENDIX Maintenance and Care Declaration of Conformity Warranty / Liability Versions Overview microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 2... - Page 3 As of 11/09/2005 a new, simpler frame type is adjusted at the delivery by de- fault (see chapter “Standard Transmission Frame“). microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 3...
-
Page 4: System Overview
Schematic diagram of the display unit at the interface. IB-Master InterBus Large Format Numeric InterBus-Interface LED Display RS 485 Large Format Numeric LED Display with InterBus-Interface I/O-Modul I/O-Modul microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 4... -
Page 5: Technical Data
Disconnect the power supply cable from the power supply. o Disconnect the power supply cable from the display. microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 5... - Page 6 -25...+50 °C (optional with heating) Housing dimensions: _________x_________x_________mm Housing Material: Aluminum profile Stainless steel Sheet metal Interface: Interbus InterBus ID: 03H (fixed) microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 6...
- Page 7 If a valid frame is sent during the test routine, the test will complete and after that, data are displayed. microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 7...
- Page 8 After transmission of each frame, the IB data which have just been transferred to the large format LED display are mirrored in response to the „in“ words. microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 8...
- Page 9 ‘L’ ‘P’ ‘ ‘ (Blank) 3.5.1 Example The following chars shall be displayed at a 6-digit display: “1234.56“ Frame (HEX-coded): microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 9...
- Page 10 In this case, the point bytes PB1 to PB3 have the value 40 (because of the static values of the bits 5 to 6). microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 10...
- Page 11 If the last block of the protocol requires less than 7 bytes, the unused bytes must be set to 00h (they are not sent). microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 11...
- Page 12 Once the display has been updated, these bytes are identical to the IB output bytes. The IB input bytes needn’t be evaluated by the Interbus Master (PLC). microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 12...
- Page 13 If a further device is connected, pin 5 must be bridged to pin 9. If no further device is connected, pin 5 is not bridged to pin 9. microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 13...
- Page 14 Large Format Numeric LED Display with InterBus Interface Power Connector 230 VAC Assignment (PE) Power Connector 24 VDC (optional) Assignment +24 VDC microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 14...
- Page 15 (Watchdog expired) cable connection of the incoming bus (green) OK and no Interbus-RESET Interbus-RESET or continuing IB- (red) Interface disengaged microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 15...
- Page 16 *DIP6 specifies, which frame type is used for the controlling (see chap- ters 3.5 and 3.6). The remaining switches are set by default and must not be changed. microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 16...
- Page 17 Do not attempt to repair the device yourself. The guarantee is ren- dered null and void if the device is tampered with by unauthorised persons. microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 17...
-
Page 18: Eu-Konformitätserklärung
Richtlinie 2014/35/EU +A2:2013 Low Voltage Directive RoHS Richtlinie EN50581:2012 2011/65/EU RoHS Directive Windischeschenbach, 16.11.2017 Manuel Raß Geschäftsführer / General Manager microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 18... - Page 19 “as is”. No guarantee claims may be made in such cases. The General Terms and Conditions of microSYST Systemelectronic GmbH in current version apply as well. microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 19...
- Page 20 migan MPB 4.00 11/17/16 4.10 11/13/17 Change of address and title MPB Certified per DIN EN ISO 9001. microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de Page 20...
