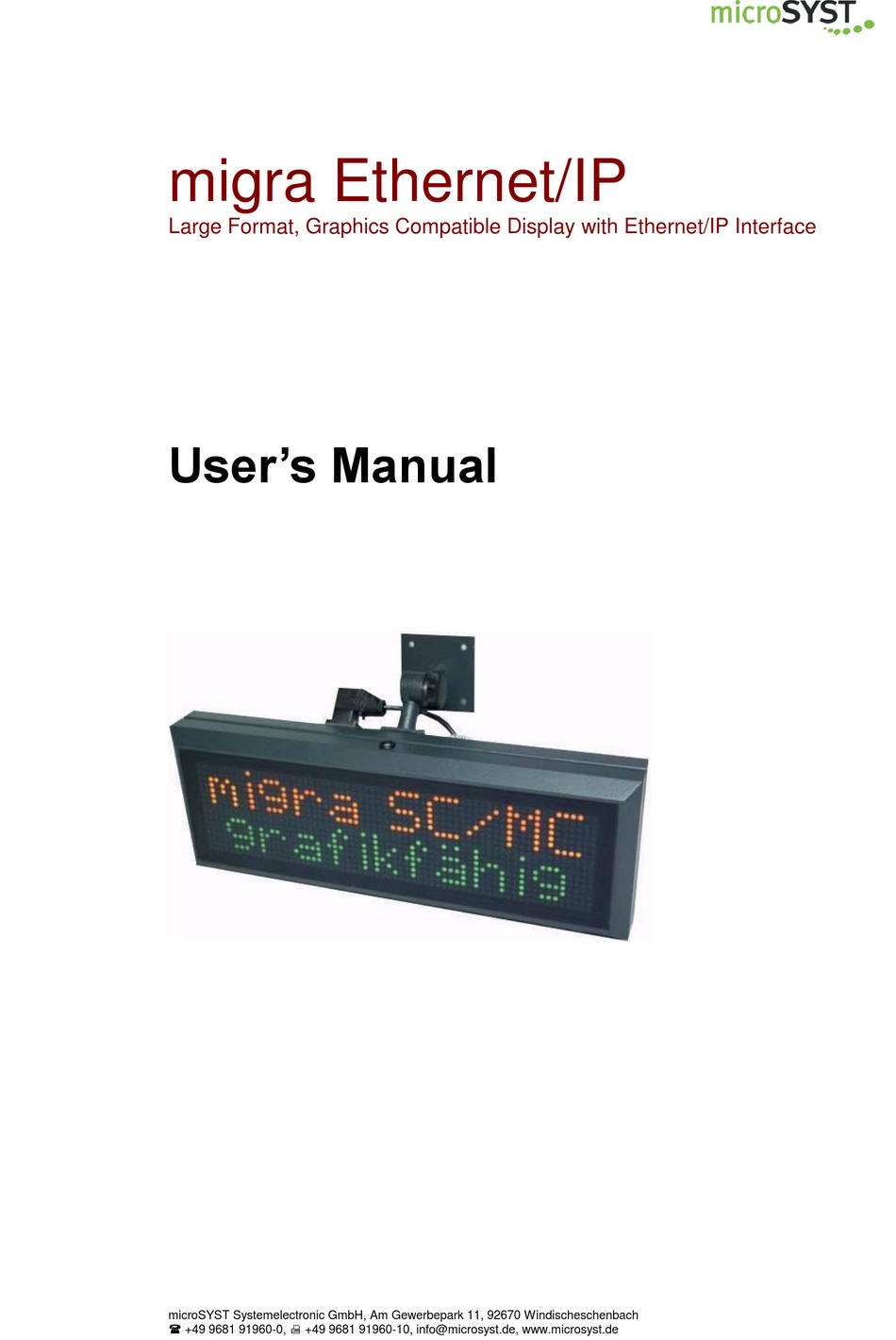

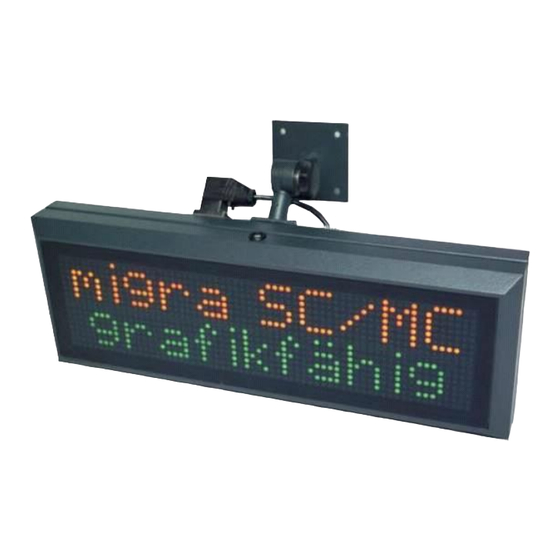

- Page 1 Ethernet/IP Large Format, Graphics Compatible Display with Ethernet/IP Interface User’s Manual microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 2: Table Of Contents
3.10.2.9.1 ASCII Coded Decimal Values 3.10.2.9.2 Signed Integer Coded Values 3.10.3 Direct Graphic Control 3.10.3.1 Clear Display and Fill 3.10.3.2 Setting the Decimal Point Page 2 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... - Page 3 Querying Macros CONNECTOR PIN ASSIGNMENTS Control Board (intern) HMS-Interface APPENDIX Displayable Characters Maintenance and Care Declaration of Conformity Guarantee Versions Overview Page 3 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 4: General
Monitor display, stored texts and graphics can be queried, variables can be displayed and macros can be executed Variable size thanks to modular display design. Page 4 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 5: Application Example
2 Application Example Schematic diagram of the display unit at the interface: (Control) (Configuration) Ethernet/IP Interface Display Controlling Display Unit migra Ethernet/IP Page 5 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 6: Technical Data
Vertical resolution ≤ 64 Pixel: 64 KByte Vertical resolution > 64 Pixel: 448 KByte Page 6 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 7: Tips And Tricks
Graphics, texts and variables to be displayed must be positioned such that they fit properly into the display unit. Page 7 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 8: Device Configuration
RAL _____________ Housing material: Aluminium profile Stainless steel Sheet metal Interface: Ethernet/IP Parallel interface Configuration: RS232 RS485 Device address: ______.______.______.______ Page 8 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 9: Display Elements
8 lines are simply not visible at a module with 8 pixel lines. The following example depicts a module with 64 x 16 pixels including three different character heights: Page 9 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 10: System And Device Initialisation
The display unit then waits for valid output data from the user (via the interface). Page 10 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 11: Configuration Of The Ethernet/Ip Interface
You can find the original configuration at our home page www.microsyst.de in the area “Downloads & Support” -> “migra” -> “Ethernet IP” -> “Configuration File for HMS Interface”. Page 11 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 12: Configuration Of The Migra With Software "Micon
Interface must be set to “HMS-Interface (64kb Flash)“. The IP address of the display must be specified by the user. Page 12 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... - Page 13 Adjust the display modules depending on the display type. One module (smallest unit) has 64x16 pixels resolution. Click at the button “OK”. Page 13 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 14: General Frame Description
Content Description 0 ... 255 Toggle byte (*0) Length byte = frame length 2…3 See chapter “Response Frame” Response frame Page 14 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 15: Online Frame Layout
“online character”. As a rule, a pause of „receiving timeout“ + 150 ms between frames is sufficient. Page 15 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 16: Header
LEN-H und LEN-L only need to be transmitted if a checksum is used. If bit 1 in the FC byte is not set, LEN-H and LEN-L may not be transmitted! Page 16 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 17: Data Unit
4 through 7 must be set (1) CHK-L: Low nibble for checksum: bits 3 through 0, bits 4 through 7 must be set (1) Page 17 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 18: Displays With A Vertical Resolution > 64 Pixels
Transmit frame: 02 81 80 80 1B 47 2B 30 30 30 03 see chapter “Online Frame Layout” Take a break: Page 18 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 19: Description Of The Data Unit For Online Frames
... must be transmitted for position 123 (ASCII characters “1”, “2” and “3”). Refer to chapter “Displayable Characters” for a table of displayable ASCII characters! Page 19 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 20: Online Texts
Existing character sets are overwritten with the new character sets if a new configuration is downloaded to the display unit! Page 20 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 21: Positioning The Cursor
“0”: black “0”: static “1”: green “1”: green “1”: blinking “2”: red “2”: red “3”: yellow “3”: yellow “T”: transparent Page 21 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 22: Texts, Graphics And Variables
(from the last “ESC-A” frame)! Black is used if the background colour has been set to transparent! Page 22 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 23: Querying Variables
Variable content is stored to RAM only. After the device has been switched off and back on again, the variables are returned to their pre- configured values. Page 23 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 24: Increasing And Decreasing Variables
Variable positioning is stored to RAM only. After the device has been switched off and back on again, the variables are returned to their pre- configured positions. Page 24 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 25: Querying Bar Graphs
“+”, “-“ “0” – “9” “0” – “9” “0” – “9” “0” – “9” “0” – “9” Page 25 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 26: Signed Integer Coded Values
If the minimum limit is fallen short of or the maximum limit is exceeded, a blinking marker appears at the respective limit. Page 26 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... - Page 27 The background colour used for variables may not be transparent, and a character set with uniform character width should be used in order to assure correct display. Page 27 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 28: Direct Graphic Control
Colour Information (with header and trail) Byte 1 Byte 2 Byte 3 Function Colour “P” “0”: black “1”: green “2”: red “3”: yellow Page 28 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 29: Drawing A Rectangle
“0” – “9” The perimeter of the rectangle is drawn with the foreground colour. The rectangle is filled with the background colour. Page 29 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 30: Scrolling
The Y positions of the first and last pixel lines within the scrolling range define the start and end lines (end line > start line!). Only the last selected scrolling range is used! Page 30 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 31: Displays With Vertical Resolution > 64 Pixels
Scrolling range with start line = 50, end line = 80 1. scrolling range: line 50 to 63 2. scrolling range: line 64 to 80 Page 31 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 32: General Functions
“2” = red The transmitted value is multiplied in accordance with the HEX switch settings at the device before it is applied. Page 32 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 33: Digital Inputs And Outputs
The output bits are used to switch the digital outputs (if included). After switching the device on, all outputs are cleared (0). Page 33 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 34: Macros
Execution starts with the indicated macro. Skipping is also possible during macro execution through the use of this command within a macro sequence. Page 34 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 35: Input-Dependent Macro Jump
100 ms happens and the digital inputs are read in again. Page 35 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... - Page 36 100 ms), for example during the delay time (1 second). If Input 2 is set, the display is cleared. Page 36 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 37: Pause During Macro Execution
This sequence can be used as part of a macro, as well as part of a receive frame. 3.10.6.4 Stop Macro Execution Byte 1 Byte 2 Function “E” Page 37 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 38: Response Frames
(“reading out decimal point from the display”, “digital inputs and outputs”). The error code in the response frame always relates to the last partition frame. Page 38 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 39: Multiple Esc-Sequences
=> An “online text” with character set 1, on cursor position x=2, y=3 with foreground colour „yellow“ and background colour „black“ is displayed (blinking). Page 39 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 40: Examples
01 0A 02 81 80 83 F0 F1 41 FA F6 03 Response from the display including TB and LB: Display unit: 02 06 02 80 81 80 30 03 Page 40 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 41: Parallel Interface
3.14.2 Input Level at the Parallel Inputs Level Voltage Range U (low) + 0 to 1.6 V DC U (high) + 18 to 30 V DC Page 41 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 42: Querying Text
Strobe (rising edge, 0 to 1: apply value now) For example, the following assignments are used to display text 12: 16 15 14 13 12 11 10 Page 42 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 43: Querying Graphics
Strobe (rising edge, 0 to 1: apply value now) For example, the following assignments are used to clear graphic 7: 16 15 14 13 12 11 10 Page 43 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 44: Setting Variables
3 (fourth digit). The inputs must be set up as follows to this end: 16 15 14 13 12 11 10 Page 44 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 45: Querying Macros
Number (0 to 255) 1: start, 0: stop Function: query macro = 11 Strobe (rising flank, 0 to 1: apply value now) Page 45 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 46: Connector Pin Assignments
Note: The two outer pins at the Ethernet socket are not used (see above drawing for identification of pin 1). Page 46 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... - Page 47 Relay 2, normally open, b n.c. Relay 1 / 2 is controlled by digital output 1 / 2 (frame: ESC+“D”). Page 47 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
- Page 48 Please refer to chapter “Parallel Interface" for details concerning the parallel inputs! Page 48 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 49: Control Board (Intern)
(see corresponding chapter). After a successful download, power off the display. Remove the boot jumper. Power on the display. Page 49 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... - Page 50 High environment brightness is necessary to obtain a control value of 100 %. Most right position: Low environment brightness is necessary to obtain a control value of 100 %. Page 50 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
- Page 51 Blinks at a frequency of approx. 0.5 Hz (or irregularly) LED 2 Power-up: Illuminated Communication: Flickers during data transmission and receipt Page 51 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 52: Hms-Interface
LED 3 - Link State Description steady green module has a link steady off module does not sense a link Page 52 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... - Page 53 DIP Switch (inside the housing of the module) All DIP switches must be switched off. Page 53 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
-
Page 54: Appendix
*Carriage Return: The cursor jumps to the beginning of the next line. Any Windows character set, as well as any user defined character set can be used. Page 54 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 55: Maintenance And Care
Observe all notes and instructions included in this user’s manual. Page 55 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 56: Declaration Of Conformity
Richtlinie 2014/35/EU +A2:2013 Low Voltage Directive RoHS Richtlinie 2011/65/EU EN50581:2012 RoHS Directive Windischeschenbach, 16.11.2017 Manuel Raß Geschäftsführer / General Manager Page 56 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 57: Guarantee
“as is”. No guarantee claims may be made in such cases. The “General Terms and Conditions” regarding manufactured products and services rendered for the electrical industry apply as well. Page 57 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de... -
Page 58: Versions Overview
SC/MC removed, description of controller board 1.50 4/29/2016 Declaration of conformity 1.60 11/16/2017 Change of address Certified per DIN EN ISO 9001. Page 58 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
