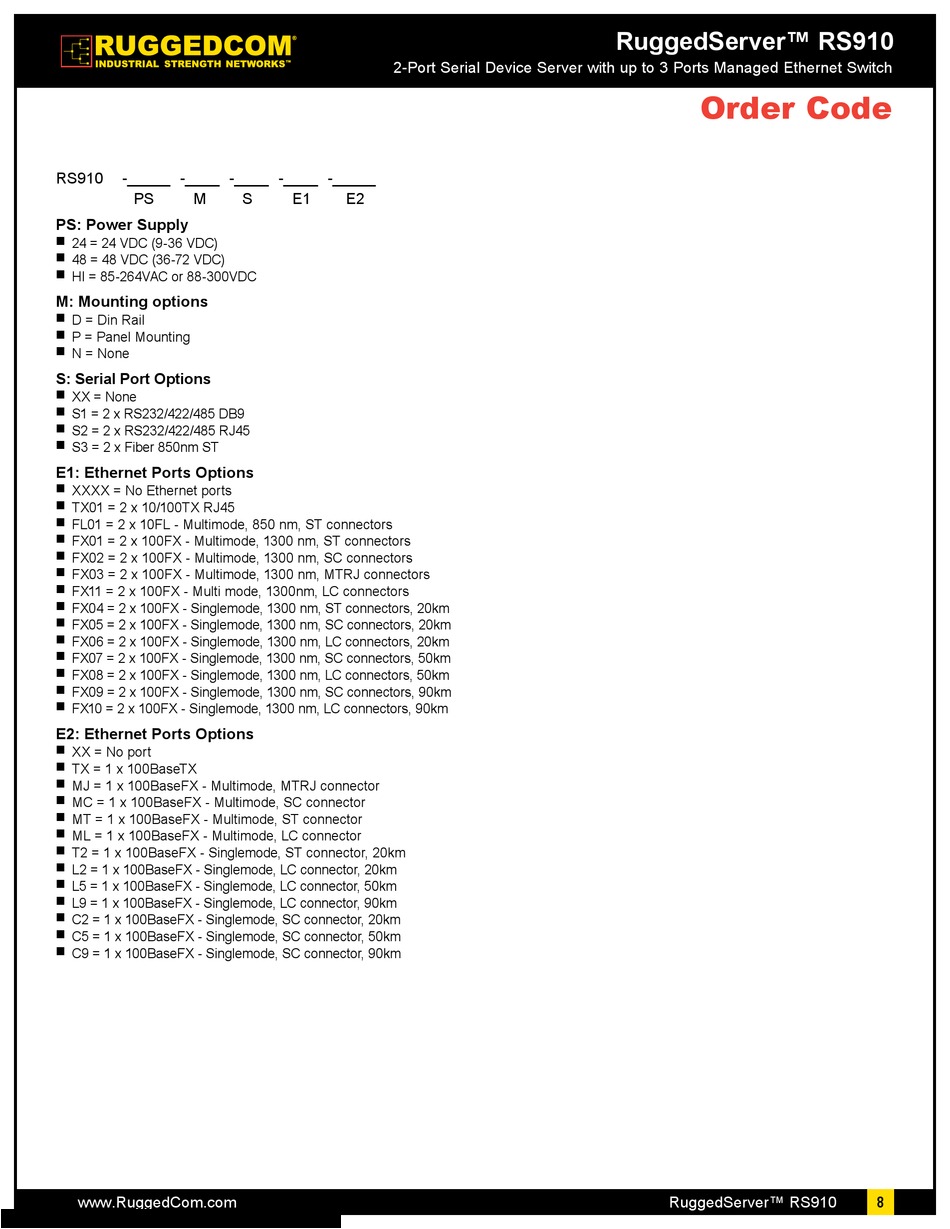

Order Code - RuggedCom RuggedServer RS910 Specifications

RS910 -_____ -____ -____ -____ -_____
PS M
PS: Power Supply
„ 24 = 24 VDC (9-36 VDC) „
„ „ 48 = 48 VDC (36-72 VDC)
„ „ HI = 85-264VAC or 88-300VDC
M: Mounting options
„ „
D = Din Rail
„ „ P = Panel Mounting
„ „ N = None
S: Serial Port Options
„ „
XX = None
„ „ S1 = 2 x RS232/422/485 DB9
„ „ S2 = 2 x RS232/422/485 RJ45
„ „
S3 = 2 x Fiber 850nm ST
E1: Ethernet Ports Options
„ „ XXXX = No Ethernet ports
„ „ TX01 = 2 x 10/100TX RJ45
„ „
FL01 = 2 x 10FL - Multimode, 850 nm, ST connectors
„ „
FX01 = 2 x 100FX - Multimode, 1300 nm, ST connectors
„ „ FX02 = 2 x 100FX - Multimode, 1300 nm, SC connectors
„ „ FX03 = 2 x 100FX - Multimode, 1300 nm, MTRJ connectors
„ „
FX11 = 2 x 100FX - Multi mode, 1300nm, LC connectors
„ „
FX04 = 2 x 100FX - Singlemode, 1300 nm, ST connectors, 20km
„ „ FX05 = 2 x 100FX - Singlemode, 1300 nm, SC connectors, 20km
„ „ FX06 = 2 x 100FX - Singlemode, 1300 nm, LC connectors, 20km
„ „
FX07 = 2 x 100FX - Singlemode, 1300 nm, SC connectors, 50km
„ „
FX08 = 2 x 100FX - Singlemode, 1300 nm, LC connectors, 50km
„ „
FX09 = 2 x 100FX - Singlemode, 1300 nm, SC connectors, 90km
„ „ FX10 = 2 x 100FX - Singlemode, 1300 nm, LC connectors, 90km
E2: Ethernet Ports Options
„ „
XX = No port
„ „
TX = 1 x 100BaseTX
„ „ MJ = 1 x 100BaseFX - Multimode, MTRJ connector
„ „ MC = 1 x 100BaseFX - Multimode, SC connector
„ „
MT = 1 x 100BaseFX - Multimode, ST connector
„ „
ML = 1 x 100BaseFX - Multimode, LC connector
„ „ T2 = 1 x 100BaseFX - Singlemode, ST connector, 20km
„ „ L2 = 1 x 100BaseFX - Singlemode, LC connector, 20km
„ „
L5 = 1 x 100BaseFX - Singlemode, LC connector, 50km
„ „
L9 = 1 x 100BaseFX - Singlemode, LC connector, 90km
„ „ C2 = 1 x 100BaseFX - Singlemode, SC connector, 20km
„ „ C5 = 1 x 100BaseFX - Singlemode, SC connector, 50km
„ „
C9 = 1 x 100BaseFX - Singlemode, SC connector, 90km
www.RuggedCom.com
2-Port Serial Device Server with up to 3 Ports Managed Ethernet Switch
S E1 E2
RuggedServer™ RS910

Order Code

RuggedServer™ RS910 8
