Communication Ports

The RUGGEDCOM RMC can be equipped with various types of communication ports to enhance its abilities and
performance.

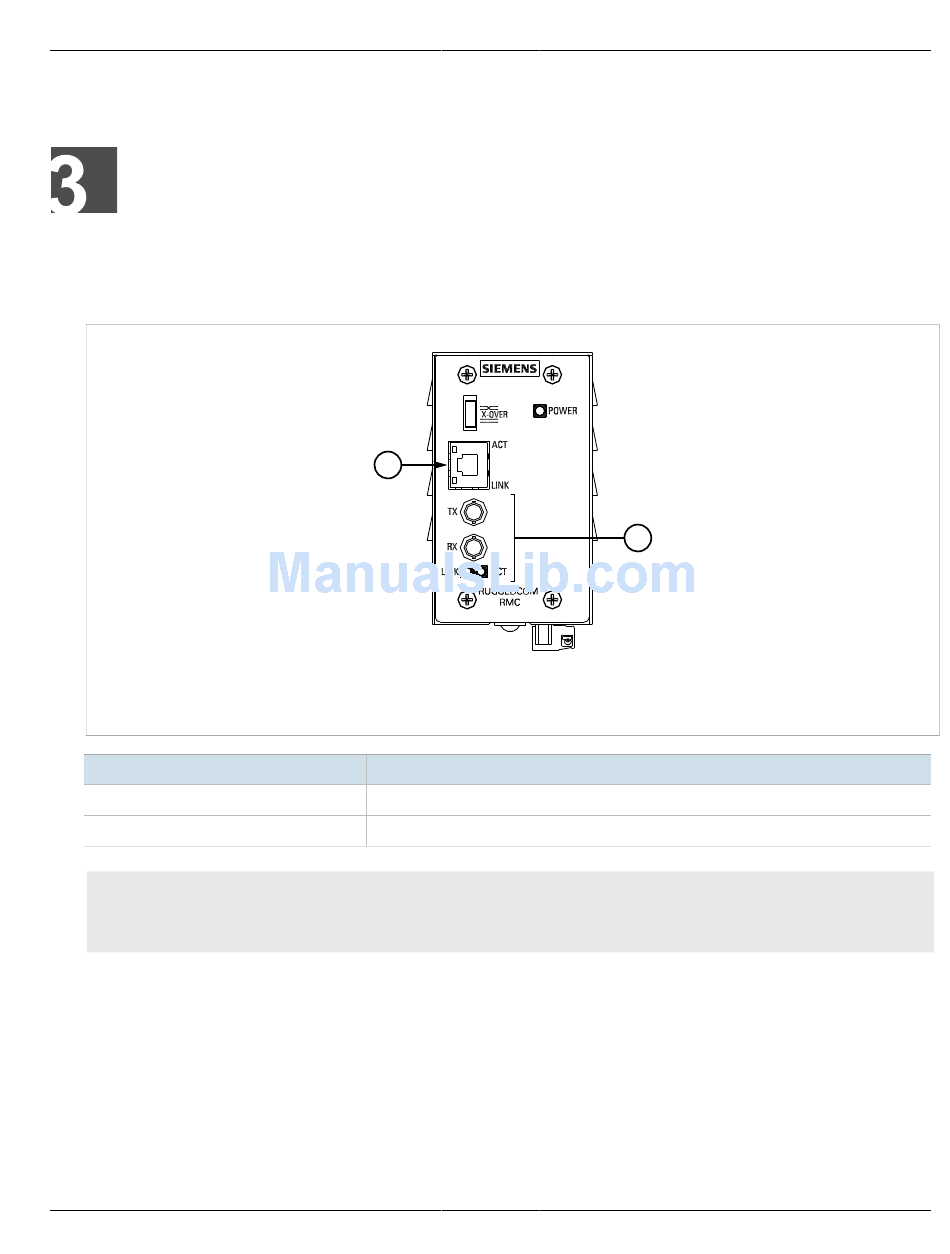

Figure 7: Port Assignment
1. Port 1 2. Port 2
Port
1
2
CONTENTS
• Section 3.1, "Copper Ethernet Ports"
• Section 3.2, "Fiber Optic Ethernet Ports"
Section 3.1

Copper Ethernet Ports

The RUGGEDCOM RMC supports a single 10/100Base-TX Ethernet port that allows connection to a standard
Category 5 (CAT-5) unshielded twisted-pair (UTP) cable with an RJ45 male connector. The RJ45 receptacles are
directly connected to the chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP) cables.
Copper Ethernet Ports
1
Type
Copper Ethernet Port
Copper Ethernet Port
Communication Ports
2
