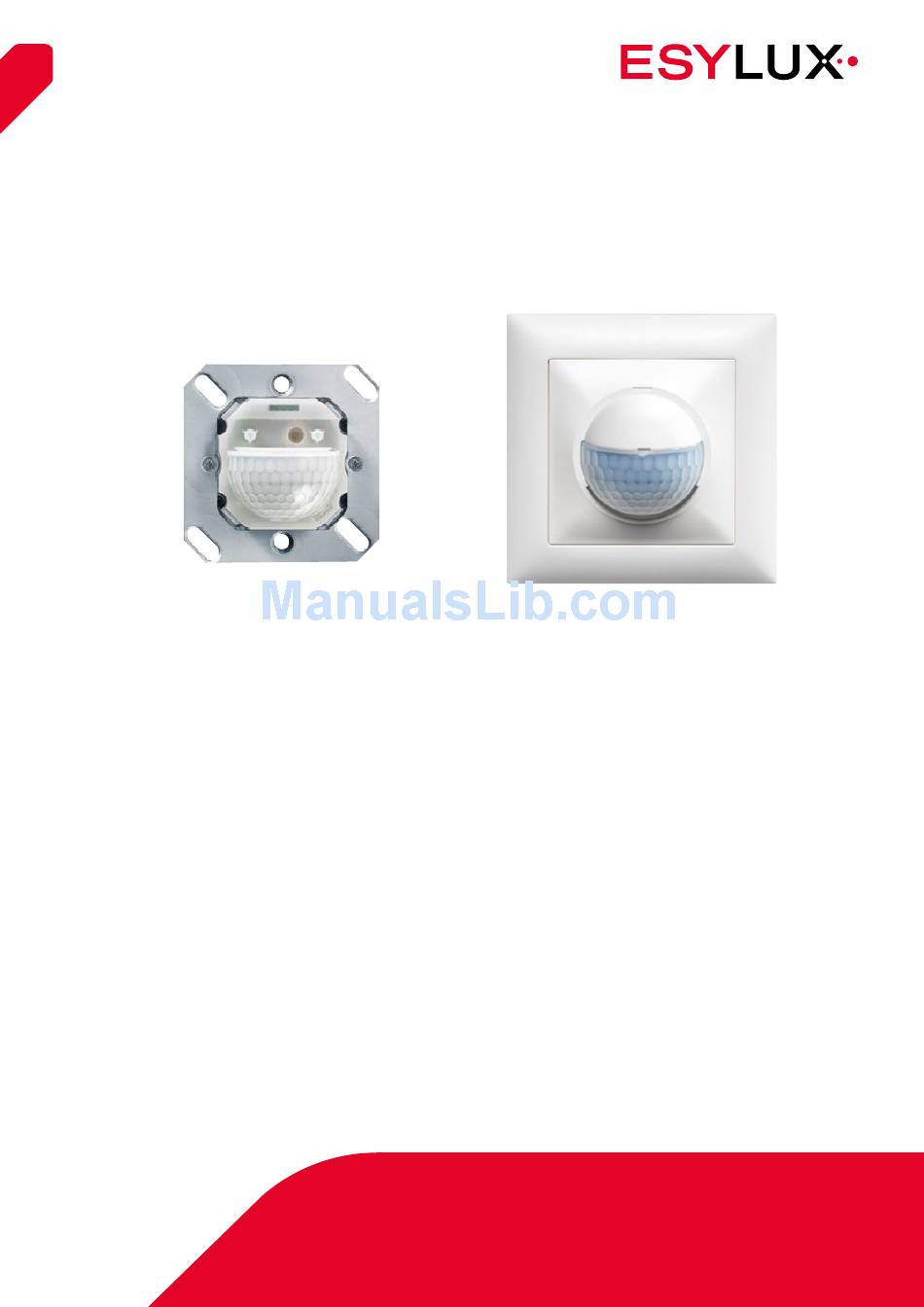

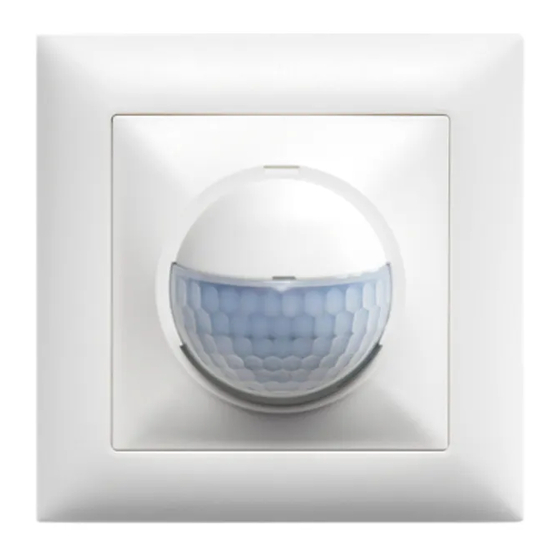

- Page 1 MD-C/PD-C series Touch wall-mounted motion detector MD-C 180i/16 Touch MD-C 180i/16 Touch CH Touch wall-mounted presence detector PD-C 180i/16 Touch plus CH PD-C 180i/16 Touch plus Detailed operating instructions...
- Page 2 An der Strusbek 40, 22926 Ahrensburg, Germany Details may be subject to change. Copying is only permitted with the written consent of ESYLUX GmbH. This includes translation into other languages and reuse of content for other purposes. 1 / 34...
-
Page 3: Table Of Contents
3.4 Field of detection ................. 8 3.5 Type plates ..................9 3.5.1 MD-C 180i/16 Touch / MD-C 180i/16 Touch CH ......9 3.5.2 PD-C 180i/16 Touch plus / PD-C 180i/16 Touch plus CH .... 10 4 Connection and assembly ..................11 Dimensions diagrams................ - Page 4 8 Operation via the 230 V button ................30 9 Maintenance ......................31 Cleaning .................... 31 Troubleshooting .................. 31 10 Technical information .................... 32 11 Accessories ......................33 12 Disposal ....................... 33 13 EC Declaration of Conformity .................. 34 14 ESYLUX MANUFACTURER’S GUARANTEE ..............34 3 / 34...
-
Page 5: Information About This Document
This document is also available online at www.esylux.com and can be print- ed in A4 format. If you are reading the document on screen, you can use the following func-... -
Page 6: Highlighted Information Within The Text
Information about this document 1.3 Highlighted information within the text To make these user instructions easier to read, certain information is high- lighted using different formatting. The meaning of this formatting is explained below: indicates a call for user action ... -
Page 7: Basic Safety Information
The ESYLUX Touch wall-mounted detector is intended for indoor use. It can only be used in rooms with higher levels of humidity such as bathrooms or cellar spaces if used in combination with the ESYLUX cover IP 44 (item number EM10055157). -
Page 8: Differences Between The Presence Detectors And Motion Detectors
An integrated microphone enhances the motion detection capacity and means the detectors are also suitable for use in non-square rooms. In combination with the ESYLUX cover IP 44 (item number EM10055157), the Touch wall detectors can also be used in bathrooms or other rooms with high humidity levels. -
Page 9: Field Of Detection
A lens mask is included with the models PD-C 180i/16 Touch plus with lens mask CH and MD-C 180i/16 Touch CH. For the models PD-C 180i/16 Touch plus and MD-C 180i/16 Touch, detector covers, which include lens masks, are available as accessories. The detector covers are available in different ver- sions from different manufacturers. -
Page 10: Type Plates
Product description 3.5 Type plates 3.5.1 MD-C 180i/16 Touch / MD-C 180i/16 Touch CH GmbH An der Strusbek 40 22926 Ahrensburg/Germany www.esylux.com 8 mm 230 V ~ 50 - 60 Hz 2300 W/10 A (cos φ = 1) 1150 W/5 AX (cos φ = 0,5) L’... -
Page 11: Pd-C 180I/16 Touch Plus / Pd-C 180I/16 Touch Plus Ch
Circuit breaker value (switch contact D1/D2) 5 Wiring diagrams (see the circuit diagram in section 4.2.2) 6 Circuit breaker value (input) 7 Insulation 8 Technical information ESYLUX GmbH PD-C 180i/16 Touch plus An der Strusbek 40 EP10428500 22926 Ahrensburg/Germany www.esylux.com... -
Page 12: Connection And Assembly
Detector without sup- plied frame 70 mm 53 mm 23 mm 70 mm 42 mm PD-C 180i/16 Touch plus CH / MD-C 180i/16 Touch CH Detector with frame 86 mm 55 mm 27 mm 86 mm 45 mm 4.2 Connection 4.2.1... -
Page 13: Pd-C 180I/16 Touch Plus / Pd-C 180I/16 Touch Plus Ch
Connection and assembly Connect as shown in the following wiring diagram: Connection model MD-C L’ S Phase 230 V AC Illumination Button Neutral conductor Multiple detectors can be connected according to the following connection Parallel diagram: connection model MD-C L’ S L’... - Page 14 L’ S Phase 230 V AC Illumination Button or slave Neutral conductor Potential-free contact (channel 2) A slave detector from the ESYLUX C series can be connected according to Connection the following wiring diagram: slave detector to model PD-C Slave L’...
-
Page 15: Installation
Connection and assembly 4.3 Installation DANGER! Risk of fatal injury from electric shock! Switch off the power to the cable. Check that the cable is de-energised. The detectors are suitable for flush mounting and surface mounting. 4.3.1 Flush mounting Installation in a simple European recessed box (not included) ... -
Page 16: Surface Mounting
Connection and assembly 4.3.2 Surface mounting For surface mounting, you will need the ESYLUX surface-mounted box IP 20/IP 44 (item number EM10055164). Connect the detector according to the wiring diagram (see section “4.2 Connection”). Screw the detector into the surface-mounted box. -
Page 17: Touch Panel Operation
Touch panel operation Touch panel operation The touch panel is in the top area of the lens body: The touch panel distinguishes between two different types of touch: • Short: Touch for a duration of 0.5 to 3 seconds Short - long •... -
Page 18: Reset Programs
Reset programs current program. Example: If the dark blue LED flashes 3 times, the detector is currently in program 3. 3. Use further short touches change the program until you reach the program you require. 4. Use a long touch to save the program selection and exit Program selection mode. The detector is set to the required programming mode. In program selection mode, the program number is increased from program 1 to 5 with each short touch. - Page 19 Reset programs Programming settings overview: Factory settings MD-C PD-C Program 1: Factory set- Switch-off delay time for tings 5 minutes 5 minutes lighting Switching threshold for light- 100 lux 500 lux Switch-off delay time HLK Not available 30 minutes (channel 2) Automatic mode Fully automatic Fully automatic...
- Page 20 Reset programs Program 4 MD-C PD-C Program 4 Switch-off delay time for 5 minutes 5 minutes lighting Switching threshold for light- 500 lux 500 lux Switch-off delay time HLK Not available 10 minutes (channel 2) Automatic mode Semi-automatic Semi-automatic Short: on/off Short: on/off Possible touch commands Long: Program se-...
-
Page 21: Mobil-Pdi/Mdi Remote Control
Mobil-PDi/MDi remote control Mobil-PDi/MDi remote control You can use the Mobil-PDi/MDi remote control for the following functions: • Operate the detector • Set program 5 or change settings for the other programs • Define permitted touch commands for each program The remote control is also available as an accessory (item number EM10425509). - Page 22 Mobil-PDi/MDi remote control But- Normal mode Simple programming mode Enhanced programming for programs 1-4 mode for program 5 – Current Lux value as Current Lux value as switching threshold switching threshold – Switching threshold 100 Switching threshold 100 Lux – Switching threshold 250 Switching threshold 250 Lux...
- Page 23 Mobil-PDi/MDi remote control But- Normal mode Simple programming mode Enhanced programming for programs 1-4 mode for program 5 – Channel 1 switch-off Channel 1 switch-off delay time: delay time: 5 minutes 5 minutes – Channel 1 switch-off Channel 1 switch-off delay time: delay time: 10 minutes...
-
Page 24: Operating The Detector
Mobil-PDi/MDi remote control But- Normal mode Simple programming mode Enhanced programming for programs 1-4 mode for program 5 – Channel 2 switch-off de- Channel 2 switch-off lay time 30 min./Activate delay time 30 min. detector sensitivity setting (see section 7.3.5) –... -
Page 25: Programming The Detector
Mobil-PDi/MDi remote control Reset channel 1: Pressing the reset button deletes the commands that you have used to override the programmed settings. The detector then continues to function according to the set program. Test mode: You can use test mode to ensure that the field of detec- tion is correct. While you are walking around the room, the dark blue LED flashes twice for each detected movement. Channel 1 is switched on per- manently during test mode. -
Page 26: Functions Of Buttons In Programming Mode
Mobil-PDi/MDi remote control To activate and deactivate advanced programming mode: Enhanced pro- gramming mode for program 5 1. Press the button twice to activate advanced programming mode. The light blue LED is lit. The detector is in advanced programming mode. 2. - Page 27 Mobil-PDi/MDi remote control But- Simple programming mode for Enhanced programming mode for programs 1-4 program 5 Switching between fully auto- Switching between fully automat- matic/semi-automatic ic/semi-automatic LED confirmations: LED confirmations: Fully automatic: red LED flash- Fully automatic: red LED flashes; es; semi-automatic: blue LED semi-automatic: blue LED flashes flashes Pulse operation: Pulse 1 sec- Pulse operation: Pulse 1 sec- ond.
-
Page 28: Setting Program 5
Mobil-PDi/MDi remote control But- Simple programming mode for Enhanced programming mode for programs 1-4 program 5 Channel 2 switch-off delay time Channel 2 switch-off delay time 15 min./ 15 min. min. detector sensitivity/ min. microphone sensitivity Channel 2 switch-off delay time Channel 2 switch-off delay time 30 min./Activate detector sensi- 30 min. -
Page 29: Setting The Touch Commands
Mobil-PDi/MDi remote control the touch panel (see above “5.1 Switching on and off and selecting a pro- gram”). To change the settings in programs 1 to 4: Prerequisite: • The program that you want to adjust is active. 1. Press the button to activate simple programming mode. -
Page 30: Setting The Detector Sensitivity
Mobil-PDi/MDi remote control • button twice, so that the detector can be switched on by Short: On. Long: short touch and the program cannot be changed with a long touch. no function The LED lights up in white. • button so that the detector can be switched on and off by Short: on/off. -
Page 31: Operation Via The 230 V Button
Operation via the 230 V button To activate the microphone: 1. Press the button to activate simple programming mode. The dark blue LED is lit. The detector goes into programming mode. 2. Press the button to start the acoustic sensor setting. 3. Adjust the noise sensitivity. Click •... -
Page 32: Maintenance
Maintenance ing a presence or if the set switch-off delay time is running. The detector then works according to the set program. Maintenance The detector does not contain any components that require maintenance. The device can only be replaced as a complete unit. 9.1 Cleaning CAUTION! Using the wrong cleaning products will damage the device! -
Page 33: Technical Information
Technical information 10 Technical information Mains voltage 230 V ~/50 Hz Power consumption approx. 0.3 W Dimensions 70 mm x 70 mm x 53 mm (width x height x depth) Installation depth 23 mm Installation dimension Installation hole diameter 68 mm Weight 0.063 kg Installation type... -
Page 34: Disposal
Disposal Designation Item number Cover IP 20, stainless steel EM10055140 appearance Cover IP 44 white EM10055157 Cover IP 20-SKK white EM10055270 Cover IP 20-SKJ white EM10055287 Cover IP 20-EXX white EM10055294 Cover IP20-BS1 polar EP10427107 Cover IP20-BS1 white EP10427114 Cover IP20-BM2 polar EP10427121 Cover IP20-BM2 white EP10427138... -
Page 35: Esylux Manufacturer's Guarantee
ESYLUX distributor in your country (visit www.esylux.com for a com- plete overview) provides a guarantee against manufacturing/material defects in ESYLUX devices for a period of three years from the date of manufacture. This guarantee is independent of your legal rights with respect to the seller of the device.
