Icom IC-F2610 Service Manual page 5

SECTION 2
MAIN unit
Power module*
(IC11: SC-1323)
AF power amplifier
(IC8: LA4425A)
PLL IC*
(IC12: MC145190F)
CPU
(IC20: HD64F3437F16)
EEPROM
(IC27: X25650S8I-2.5)
FRONT unit
PLL reference TCXO
(X501: CR-573)
D/A converter
(IC5: M62363FP)
*Located under side of the point
Downloaded from www.Manualslib.com

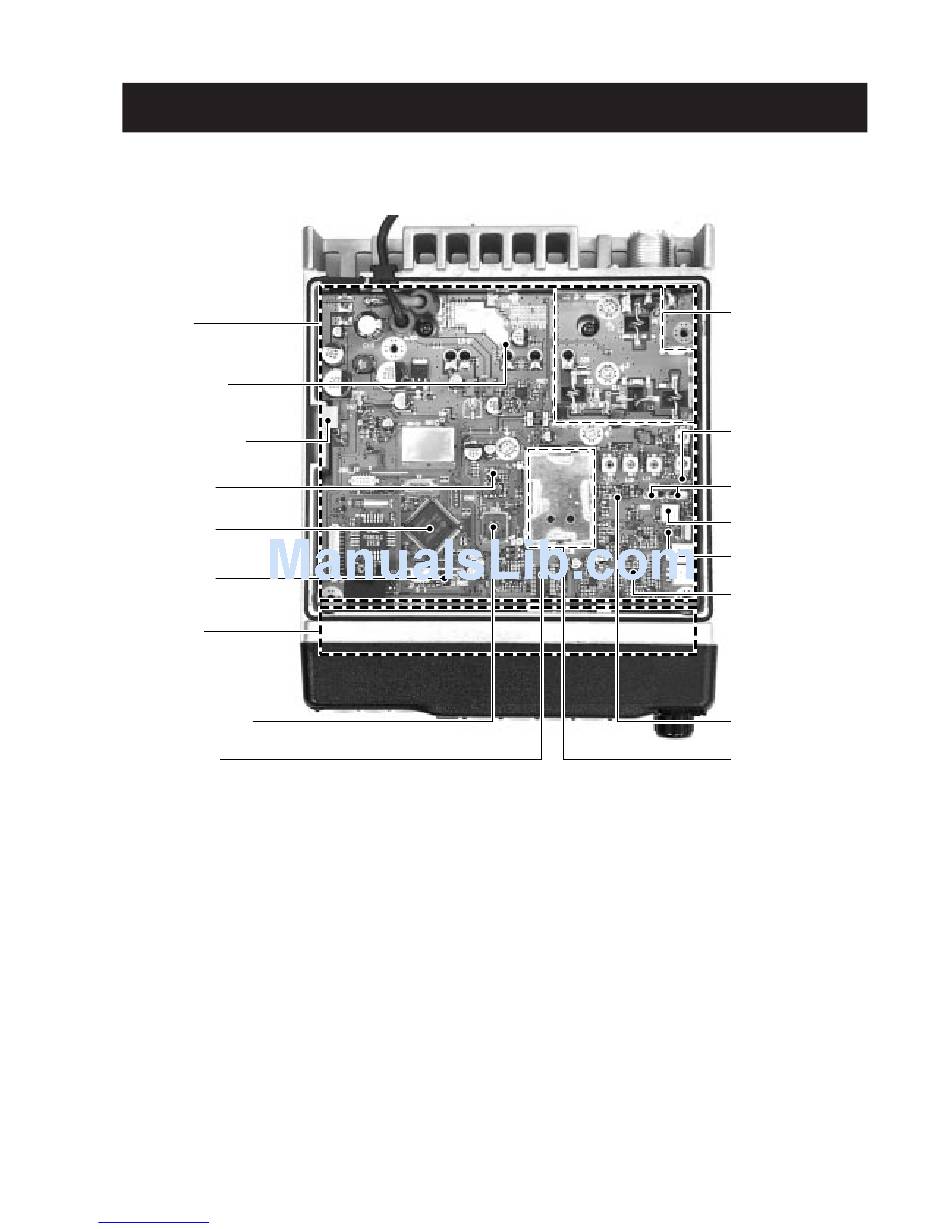

INSIDE VIEW
manuals search engine
2 - 1
Low-pass filter circuit
RF amplifier*
(Q1: 3SK116)
1st IF filter
(FI1: FL-264)
Discriminator
(X2: CDBC455CX16)
FM IF IC*
(IC1: MC3372SVM)
Microphone amplifier
(IC22: µPC5023GR)
1st mixer*
(Q2: 3SK166)
VCO circuit
