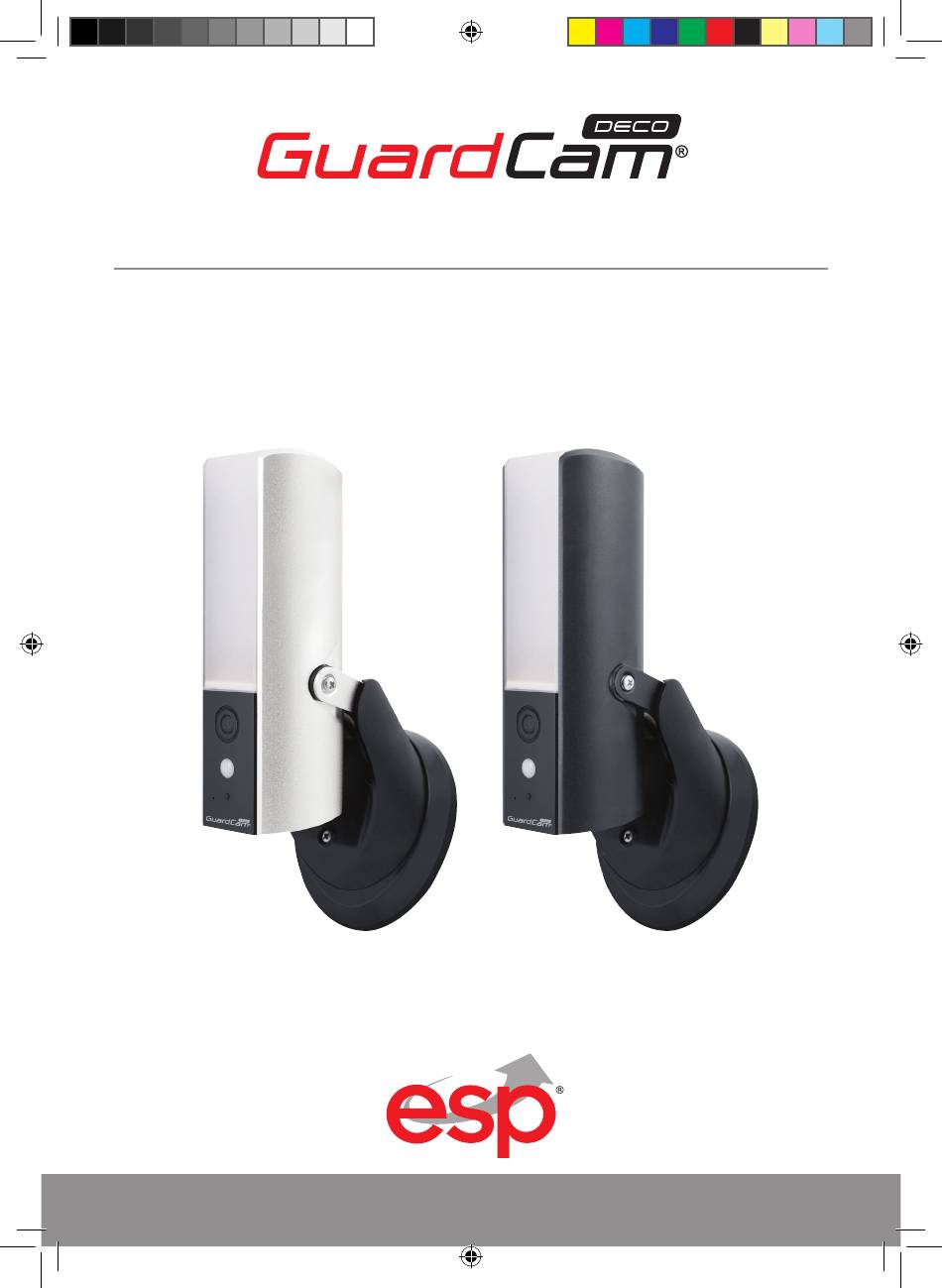

- Page 1 GUARDCAMDECO: COMBINED WI-FI SECURITY CAMERA LED FLOODLIGHT SYSTEM QUICK START GUIDE www.espuk.com GUARDCAMDECO QUICK START GUIDE.indd 1 12/03/2018 14:35:09...
-
Page 2: Kit Content
HARDWARE OVERVIEW Note: Press the reset button for 5 seconds, until the white LED is light up. The system will restore to factory default and you need to set up the camera again. GUARDCAMDECO QUICK START GUIDE.indd 2 12/03/2018 14:35:09... -
Page 3: Setup The Camera
SETUP THE CAMERA 1. APP DOWNLOAD Download and install the “ESP GuardcamDECO APP to your device. 2. Power Up The Camera For Wi-Fi Setup - Power the camera temporarily or use any standard Micro USB Cable with USB power adaptor to connect to the bottom of the camera as shown below. - Page 4 Be sure to choose your local home Wi-Fi router on your local network in the ADVANCED SETTING. The system will begin to count down and reboot the system. The camera view will show on screen again after Wi-Fi setting has been updated. GUARDCAMDECO QUICK START GUIDE.indd 4 12/03/2018 14:35:10...
-
Page 5: Installation
(1) Follow the below illustration to connect the ethernet cable if not using the Wi-Fi connection. Note: Wi-Fi setting may fail if you leave the ethernet cable connected. Please remove the cable after settings have been completed. GUARDCAMDECO QUICK START GUIDE.indd 5 12/03/2018 14:35:10... - Page 6 (2) A) Make a small hole in the rubber pad to have AC power wire run into the junction box base. B) Lead the wires to the front of the base, screw the wires firmly to the terminal blocks. Put the terminal blocks back into the base properly to protect it against water. GUARDCAMDECO QUICK START GUIDE.indd 6 12/03/2018 14:35:10...
- Page 7 (3) Fasten the junction box to the wall. Make sure that the UP sign is at the top. (4) Connect the power cable to the junction box. (5) Place the device on the junction box. (6) Fasten the screw by using the Phillips screw driver. Connect to here GUARDCAMDECO QUICK START GUIDE.indd 7 12/03/2018 14:35:11...
- Page 8 You could adjust the brightness to prefer level once the camera has setup completed. (11) It is recommended to install the lighting camera at the at surface under the eave or position to have better waterproof protection. GUARDCAMDECO QUICK START GUIDE.indd 8 12/03/2018 14:35:11...
- Page 9 APP OVERVIEW/LIGHTING SETTINGS (Live Video) GUARDCAMDECO QUICK START GUIDE.indd 9 12/03/2018 14:35:11...
- Page 10 Following these instructions will allow you to fulfil the legal requirements and contribute to the protection of our environment! GUARDCAMDECO QUICK START GUIDE.indd 10 12/03/2018 14:35:11...
- Page 11 GUARDCAMDECO QUICK START GUIDE.indd 11 12/03/2018 14:35:11...
- Page 12 Elite Security Products Telephone: 01527 51 51 50 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. B18 www.espuk.com GUARDCAMDECO QUICK START GUIDE.indd 12 12/03/2018 14:35:11...
