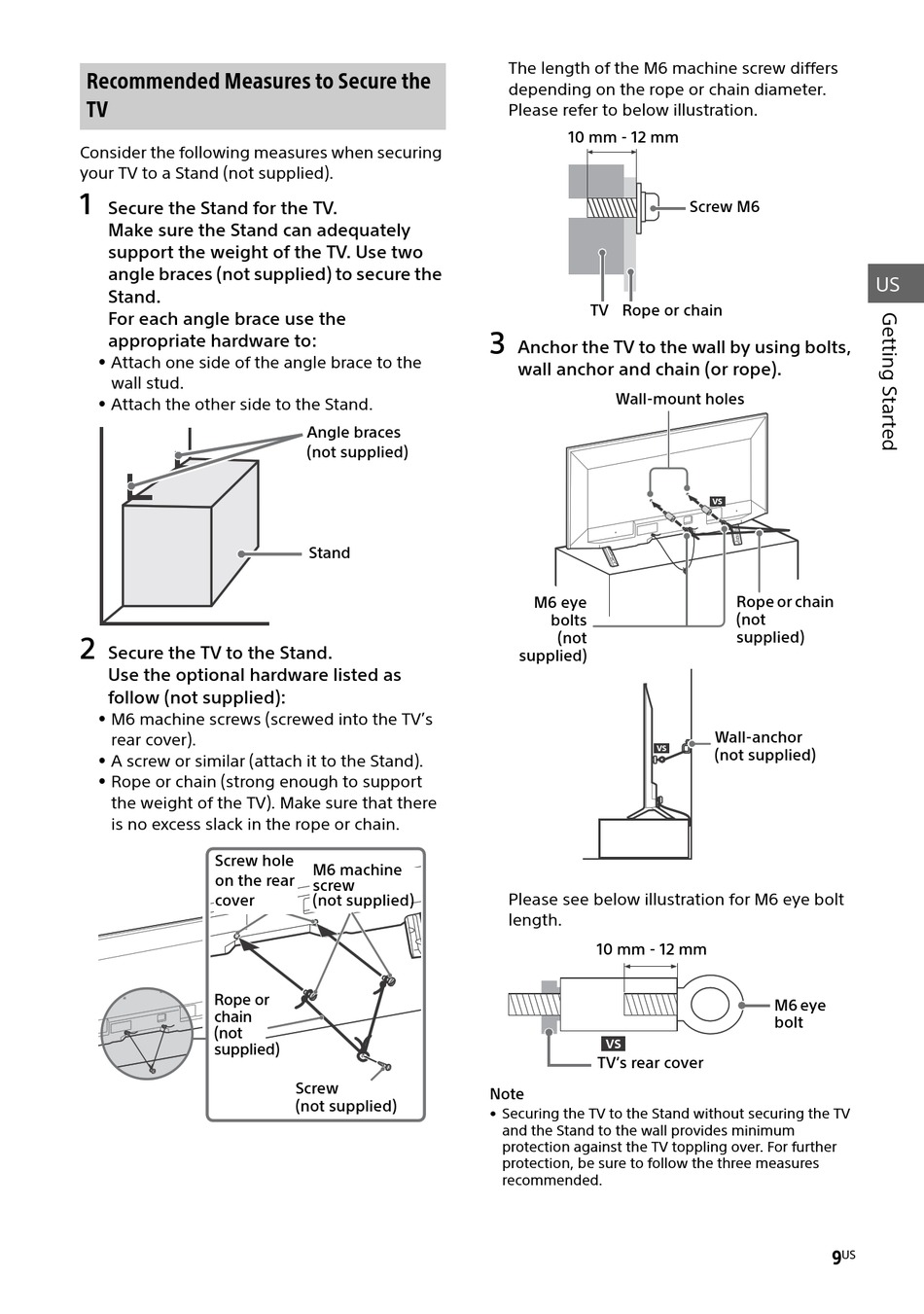

Recommended Measures to Secure the

TV
Consider the following measures when securing
your TV to a Stand (not supplied).
1
Secure the Stand for the TV.
Make sure the Stand can adequately
support the weight of the TV. Use two
angle braces (not supplied) to secure the
Stand.
For each angle brace use the
appropriate hardware to:
Attach one side of the angle brace to the
wall stud.
Attach the other side to the Stand.
2
Secure the TV to the Stand.
Use the optional hardware listed as
follow (not supplied):
M6 machine screws (screwed into the TV's
rear cover).
A screw or similar (attach it to the Stand).
Rope or chain (strong enough to support
the weight of the TV). Make sure that there
is no excess slack in the rope or chain.
Screw hole
on the rear
cover
Rope or
chain
(not
supplied)
Angle braces
(not supplied)
Stand
M6 machine
screw
(not supplied)
Screw
(not supplied)
The length of the M6 machine screw differs
depending on the rope or chain diameter.
Please refer to below illustration.
10 mm - 12 mm
TV
Rope or chain
3
Anchor the TV to the wall by using bolts,
wall anchor and chain (or rope).
Wall-mount holes
M6 eye
bolts
(not
supplied)
VS
Please see below illustration for M6 eye bolt
length.
10 mm - 12 mm
VS
TV's rear cover
Note
• Securing the TV to the Stand without securing the TV
and the Stand to the wall provides minimum
protection against the TV toppling over. For further
protection, be sure to follow the three measures
recommended.
Screw M6
VS
Rope or chain
(not
supplied)
Wall-anchor
(not supplied)
M6 eye
bolt
9
US
US
