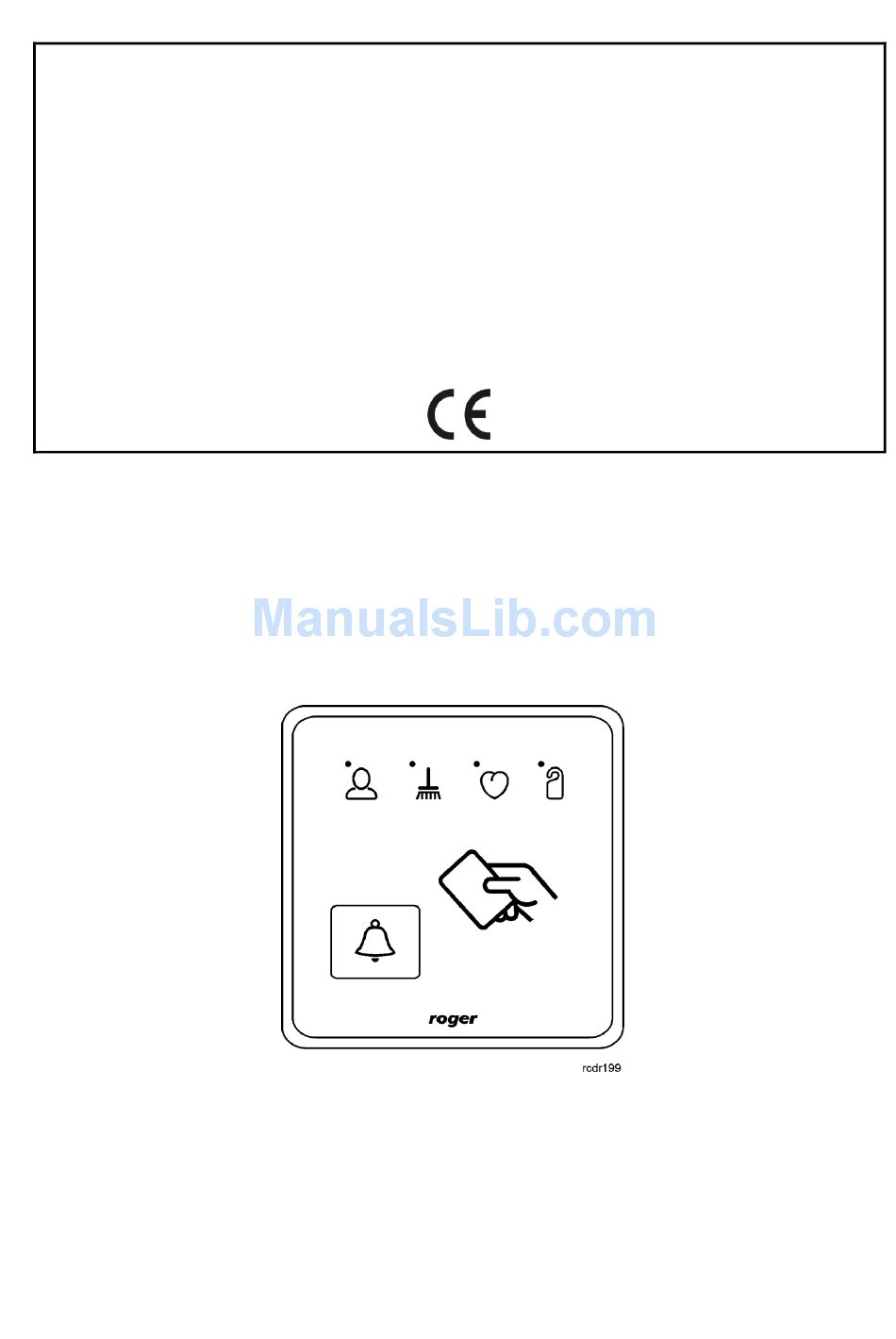

- Page 1 Roger Access Control System Installation guide for HRT82MF proximity card reader Firmware version: 1.0.2.6 or newer Hardware version: 1.1 Document version: Rev. B...
-
Page 2: Description And Specification
Functional description of HRC series controllers Installation guide for HRC series controllers PR821-CH User Manual In order to acquire the first one it is necessary to obtain Roger consent and sign non-disclosure agreement (NDA). The remaining ones are available at www.roger.pl. 2. D... -
Page 3: Installation
Table 2. HRT82MF terminals Term. Description Term. Description 12VDC power supply RACS CLK/DTA bus Ground RACS CLK/DTA bus not used Tamper not used Tamper Fig. 2 Connection to controller with 12VDC power supply output © 2015 ROGER sp.j. All rights reserved. 3/12... -
Page 4: Power Supply
CLK/DTA communication. 3.4 Front panel LED indicators In the top part of HRT82MF reader there are located four icons and LED indicators. Their functions are explained in table 3 and they depend on type of connected controller. Table 3. LED indicators... - Page 5 HRT82MF Installation Guide Rev.B 2015-08-13 Touch button HRT82MF reader is equipped with touch button dedicated to entry bell. However in case of both HRC and PR821-CH controllers the function is programmable and the button can be used for various purposes.
- Page 6 HRT82MF Installation Guide Rev.B 2015-08-13 Fig.4 HRT82MF latches and wall mounting © 2015 ROGER sp.j. All rights reserved. 6/12...
-
Page 7: Device Programming
ONFIGURATION 4.1 Device programming The address of factory new HRT82MF is ID=1 and such device is ready to communicate with HRC series controller requiring no additional configuration. In case of operation with PR821-CH controller it is necessary to configure the address ID=0. - Page 8 Transmission Format RACS CLK/DTA Device address on RACS CLK/DTA bus. Default address 0..15 Address ID=1 is required for communication with HRC controller, while the address ID=0 is required for communication with PR821-CH controller. © 2015 ROGER sp.j. All rights reserved. 8/12...
- Page 9 00000000000.. Six bytes key used for reading MSN or SSN. FFFFFFFFFFFF Advanced Settings Stop Card/PIN yes, no When activated, Card/PIN reading is stopped until buffer is Reading When empty. Buffer is Full © 2015 ROGER sp.j. All rights reserved. 9/12...
-
Page 10: Firmware Update
Fig. 8 Firmware update window in RogerVDM software 4.3 Memory reset In order to restore HRT82MF factory default settings place jumper on MEM pins and then restart the device either by placing and removing jumper on RST pins or by switching power supply off and on. -
Page 11: Troubleshooting
Communication interface with 12VDC power supply output 6. P RODUCT HISTORY Table 7. Product history Version Released Description HRT82MF v.1.0 07/2014 The first commercial version of the product HRT82MF v.1.1 03/2015 Modified icon on front panel © 2015 ROGER sp.j. All rights reserved. 11/12... - Page 12 E-mail: support@roger.pl Web: www.roger.pl Terms of Use © 2015 ROGER sp.j. All rights reserved. This document is subject to the Terms of Use in their current version published at the www.roger.pl website. © 2015 ROGER sp.j. All rights reserved. 12/12...
