Heatscope SPOT Original Installation And Instruction Manual

Electric ambient carbon radiant heater for indoor and outdoor areas
Hide thumbs Also See for SPOT:

Advertisement

Quick Links

Download this manual
ORIGINAL INSTALLATION
AND INSTRUCTION MANUAL
Electric ambient carbon radiant heater
for indoor and outdoor areas
EMC
IP44
Made in Germany
IP24
VISION
SPOT
US
WEEE-Reg.-Nr.
D E 4 5 6 5 0 4 4 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPOT and is the answer not in the manual?

Questions and answers

Related Manuals for Heatscope SPOT

Summary of Contents for Heatscope SPOT

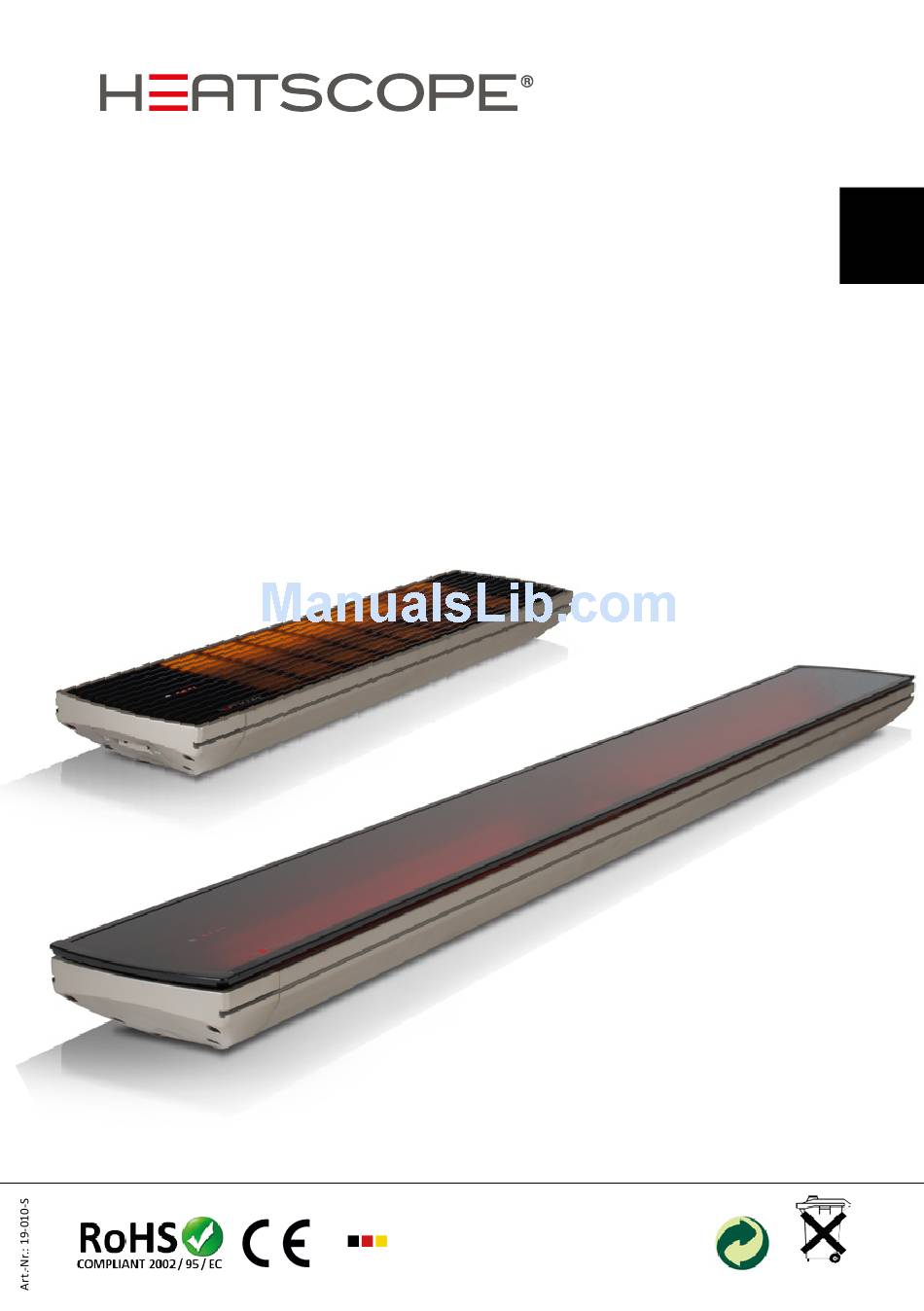

  • Page 1 ORIGINAL INSTALLATION AND INSTRUCTION MANUAL Electric ambient carbon radiant heater for indoor and outdoor areas IP44 IP24 Made in Germany VISION SPOT WEEE-Reg.-Nr. D E 4 5 6 5 0 4 4 1...

  • Page 2: Safety Information

    M U N I C H H O M E S Y S T E M S Safety information HeatSCoPe® infrared heaters must be installed and executed only by an authorized expert / trained professional electrician in accordance with the applicable standards and regulations for electrical wiring in electrical trade in the respective country / region of installation.
  • Page 3 A M B I E N T H E A T I N G S O L U T I O N S unit, if they are overseen, or if they were instructed how to use the unit safely and have received instructions how to operate/use the unit and which en dangerments may result during the use of the unit.
  • Page 4 Press the holders carefully back in position, untill they click into place again. If the housing or reflector is deformed/damaged or the heating element is broken, do not use the HEATSCOPE® unit. Please contact the vendor or the manufacturer. The cable must not be crushed, squeezed or damaged.
  • Page 5 Do not cover either part of the front or the entire front of the radiant hea- ter. Do not touch any part of the HEATSCOPE® during operation and up to 30 minutes after switching it off.
  • Page 6 6. For your own safety, never dry textiles or other materials using the HEATSCOPE®. Covering the radiant heater may result in a fire! Always maintain a distance from the heating surface of the HEATSCOPE® of at least 59.06 inch from textiles, cloth and other easy inflammable soft mate- rials.
  • Page 7 Even after a mechanical break of the quarz tubes, the carbon heating spirals will not work any longer. Besides the fin front screen of the SPOT heaters and the glass ceramic, high temperature resistant front screen of the VISION hea- ters provide best pro tection of the installed carbon heating elements.
  • Page 8 39.37 inch and the distance to the pool at least 78.74 inch. A person standing in the bathtube, shower or pool should never reach the switch or controller of the heater. If the HEATSCOPE® is installed in such an envi- ronment with high humidity, the switches or other operating components must be positioned in such a way that they cannot be touched by per- sons who are in direct contact with water.
  • Page 9 A M B I E N T H E A T I N G S O L U T I O N S shock, disconnect the supply cord before cleaning., adjusting the angle or removing it from the wall/ceiling. Wait until the heating elements are not glowing any more and the housing is noticably cooled down.
  • Page 10 M U N I C H H O M E S Y S T E M S Ceiling Installation ≤ A ≥ B ≥ B A (inch) B (inch) A (inch) B (inch) MHS-SP1600 ≤ 9.45 ≥ 5.32 MHS-VE1600/MHS-VT1600 ≤ 11.81 ≥...
  • Page 11 A M B I E N T H E A T I N G S O L U T I O N S Wall mounting ≤ A ≥ B ≥ B ≤ A ≤ A ≥ B ≥ B ≥ B ≥...
  • Page 12 M U N I C H H O M E S Y S T E M S manual control MHS-VE1600BK.200, MHS-VE2200BK.200, MHS-VE3200BK.200, MHS-VE1600WT.200, MHS-VE2200WT.200, MHS-VE3200WT.200 LED: 100 % 50 % GreenChance Inc. · 8417 Washington Blvd. · Roseville USA CA95678...
  • Page 13 A M B I E N T H E A T I N G S O L U T I O N S ir remote control MHS-SP1600BK.250, MHS-SP2200BK.200, MHS-SP2800BK.200, MHS-SP1600WT.250, MHS-SP2200WT.200, MHS-SP2800WT.200 MHS-VT1600BK.200, MHS-VT2200BK.200, MHS-VT3200BK.200, MHS-VT1600WT.200, MHS-VT2200WT.200, MHS-VT3200WT.200   LED: / OFF ...
  • Page 14 M U N I C H H O M E S Y S T E M S Electrical connection 110–120 V AC~ MHS-SP1600BK.250 MHS-SP1600WT.250 HeatSCoPe® SP 110-120 V AC~ 50/60 Hz Circuit breaker / fuse switch on the installation side...
  • Page 15 A M B I E N T H E A T I N G S O L U T I O N S Phone: 001-310-9295333-1001 · Fax: 001-310-7335070 · E-Mail: info@greenchance.net · www.greenchance.net...
  • Page 16 Electrical connection 220–240 V AC~ MHS-SP2200BK.200, MHS-SP2800BK.200, MHS-SP2200WT.200, MHS-SP2800WT.200 MHS-VT1600BK.200, MHS-VT2200BK.200, MHS-VT3200BK.200, MHS-VT1600WT.200, MHS-VT2200WT.200, MHS-VT3200WT.200 HeatSCoPe® SP // HeatSCoPe® Vt 220-240 V AC~ 50/60 Hz Circuit breaker / fuse switch on the installation side The supply cable must be connected...
  • Page 17 A M B I E N T H E A T I N G S O L U T I O N S MHS-VE1600BK.200, MHS-VE2200BK.200, MHS-VE3200BK.200, MHS-VE1600WT.200, MHS-VE2200WT.200, MHS-VE3200WT.200 HeatSCoPe® Ve 220-240 V AC~ 50/60 Hz Circuit breaker / fuse switch on the installation side acc.
  • Page 18 M U N I C H H O M E S Y S T E M S Minimum distances wall mounting The following installation regulations ensure that the HEATSCOPE® ambient heater is working effectively. All minimum clearances that must be met regardless of the installation environment are listed.
  • Page 19 A M B I E N T H E A T I N G S O L U T I O N S The clearances given are minimum values and may differ from the local building and fire regulati- ons.The latter must be observed and complied with in any case. Phone: 001-310-9295333-1001 ·...
  • Page 20 M U N I C H H O M E S Y S T E M S Minimum distances ceiling mounting The following installation configuration ensures that the HEATSCOPE™ radiant heater is working effectively. All the minimum clearances that must be met regardless of the installation environment are listed.
  • Page 21 A M B I E N T H E A T I N G S O L U T I O N S The clearances given are minimum values and may differ from the local building and fire regulations. The latter must be observed and complied with in any case. Phone: 001-310-9295333-1001 ·...
  • Page 22 M U N I C H H O M E S Y S T E M S Minimum distances in glasshouses and conservatories The following installation configuration ensures that the HEATSCOPE™ radiant heater is working effectively. All the minimum clearances that must be met regardless of the installation environment are listed.
  • Page 23 A M B I E N T H E A T I N G S O L U T I O N S The clearances given are minimum values and may differ from the local building and fire regulati- ons.The latter must be observed and complied with in any case. >...
  • Page 24 Please keep this instruction manual in a safe place. Pass on the manual to any subsequent owner of the HEATSCOPE® unit and ensure that any supplements received are included along with it (cf. www. heatscope.com).
  • Page 25 A M B I E N T H E A T I N G S O L U T I O N S Phone: 001-310-9295333-1001 · Fax: 001-310-7335070 · E-Mail: info@greenchance.net · www.greenchance.net...
  • Page 26 It is mandatory to install the unit on a surface where it is well protected from any weather influences like rain and dust from above; so the HEATSCOPE® has to be installed under a roof, an overhang or in combionation with the optional available weather shield.
  • Page 27 Use only a very soft cloth or a brush for the reflector and the heating elements. CAUTION! Do not use a high pressure hose or other high pressure water equipment to clean HEATSCOPE® ambient heaters. Do not use any sharp objects and aggressive cleaning agents under no circum stances.
  • Page 28 M U N I C H H O M E S Y S T E M S Guarantee and warranty The HEATSCOPE® is guaranteed for 24 months. The warranty period begins on the date on which the new unit was purchased. Expendable parts or defects that affect the usability of the unit only slightly are not covered by the guarantee.
  • Page 29 A M B I E N T H E A T I N G S O L U T I O N S technical data HeatSCoPe SPot HeatSCoPe ViSion ® ® Operating voltage 110-120 V AC ~, 50/60 Hz Power at 115 V AC~...

  • Page 30: Care Instructions

    M U N I C H H O M E S Y S T E M S The following instructions and markings must be observed and complied with in any case and under any circumstances. Care instructions CARE INSTRUCTIONS! Important! Before first use, please clean the heater surface with an alcohol-free customary glass cleaner.
  • Page 31 A M B I E N T H E A T I N G S O L U T I O N S General instructions based on international standards and specifications UL499 Cl. 53.15: CAUTION! a) Have a qualified electrician install a properly grounded receptacle outlet, acceptable for outdoor use and protected from snow and rain, immediately adjacent to the location where the heater will be used.
  • Page 32 CoUntrieS USA, CANADA, NORTH AMERICA franCe Denmark, Sweden, Norway, Finland, Iceland GreenChance Inc. SarL HeatSCoPe franCe lifeform - Henrik Bach Eisensee, Sales Agency rainer Heimann ZI Les gresses Gerdrupvej 236 8417 Washington Blvd. 26290 Donzère FRANCE DK 4230 Skælskør...
