LU9235 / LX9215
Digital Projector
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LU9235 and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ LU9235

Summary of Contents for BenQ LU9235

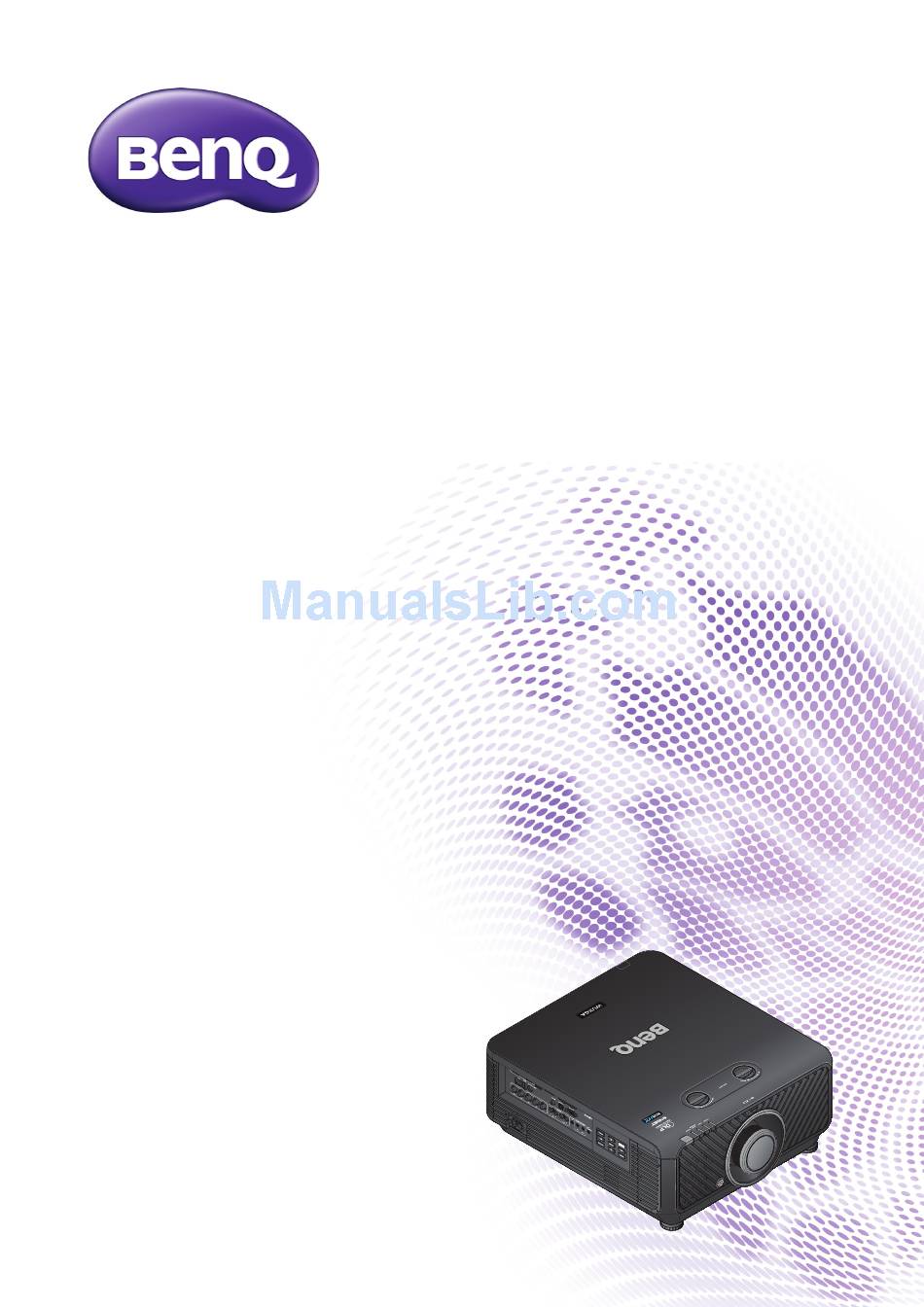

  • Page 1 LU9235 / LX9215 Digital Projector Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents Notice ..................... 3 Laser notice ........................3 Cooling notice ........................ 4 When edge blending ...................... 4 Product information ................5 Packing content ......................5 Specification ........................5 Terminals ........................6 Installation ..................... 7 Lens ..........................7 Projection table ......................7 Lens shift range ......................

  • Page 3: Notice

    Notice Laser notice This symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. CLASS 3R LASER PRODUCT This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE.

  • Page 4: Cooling Notice

    Cooling notice Ventilation Air inlet Air inlet Air outlet Caution for installation For proper ventilation of the projector, make sure to leave some space around the projector as shown in the illustration below: • Table 50cm 50cm 70cm above above above •...

  • Page 5: Product Information

    Packing content Projector with anti-dust cap Remote control Batteries User manual CD Installation Guide Power cable VGA cable Specification LU9235 LX9215 DLP Single 0.67 WUXGA DLP Single 0.7 XGA Projection system DMD Chip DMD Chip Native resolution 1920*1200 pixels, 16:10...

  • Page 6: Terminals

    Terminals • MONITOR OUT Connection to other display equipment for concurrent playback display. • PC 15-pin VGA port for connection to RGB, component HD source, or PC. • HDBaseT For connection to RJ45 Cat5/Cat6 cable to input uncompressed high-definition video (HD). •...

  • Page 7: Installation

    Installation Lens Model Lens Type Part Number Throw Ratio Lens Shift XGA: 0.81 Vertical: -15%-55% (WUXGA), -10%-50% (XGA) LS2ST3 Wide fix 5J.JDH37.002 WUXGA: 0.778 Horizontal: -5%-5% XGA: 1.14-1.347 Vertical: -15%-55% (WUXGA), -10%-50% (XGA) LS2ST1 Wide zoom 5J.JDH37.011 WUXGA: 1.1-1.3 Horizontal: -5%-5% XGA: 1.6-2 Vertical: -15%-55% (WUXGA), -10%-50% (XGA) LS2SD2...
  • Page 8 • LU9235 Lens Wide Zoom Standard (LS2ST1) (LS2SD2) Throw ratio 1.1~1.3 1.54~1.93 Diagonal Image Width Image Height Offset (A) Distance Distance Wide/Tele Wide/Tele Wide Wide Wide Wide (Inch) (Inch) (Inch) (Inch) (Inch) (Inch) (Inch) (Inch) (Inch) 2.03 1.72 1.08 0.054 23.3...

  • Page 9: Lens Shift Range

    Ceiling Mount-Front Projection Width of projected image Vertical shift Height of projected image Shift to Left Shift to Right Max 0.5V Vertical shift • LU9235 Normal projection position Desk-Front Projection Vertical shift Max 0.55V Height of projected image Vertical shift Max 0.15V 0.05H...

  • Page 10: Ceiling Mount Installation

    Ceiling Mount Installation 0.05H Screen Top Shift Range Screen Center C = Distance from lens to screen Desktop Installation Screen Center Shift Range 0.05H Note: Lens Shift feature is not available to LS2ST3 (Fix Lens). This lens should be used for "zero degree"/"no-offset" applications.

  • Page 11: Projector Dimension

    Projector dimension 470 (18.50) AIR INLET 60 (2.36) 175 (6.88) 175 (6.88) AIR INLET M6x12L AIR EXHAUST 470 (18.50)

  • Page 12: Lens Dimension

    Lens dimension Optional Lens (Wide Fix: LS2ST3) Optional Lens (Wide Zoom: LS2ST1) 525.11 (20.67) 517.41 (20.37) 525.11 (20.67) 596.90 (23.5) Wide Fix Lens Wide Zoom Lens Optional Lens (Standard: LS2SD2) Optional Lens (Semi Long Throw: LS2LT1) 525.11 (20.67) 525.11 (20.67) 531.91 (20.94) 546.53 (21.51) Standard Lens...

  • Page 13: Remote Control

    Remote control VOLUME +/- QUICK INSTALL KEYSTONE +/- MUTE ENTER Right Left MENU EXIT Down PICTURE NETWORK INPUT ASPECT AUTO SYNC BLANK FREEZE OVERSCAN LAMP MODE INFO 3D MODE LIGHT CLEAR ID SET Numeric buttons SHUTTER WIRE REMOTE jack...

  • Page 14: Rs232 Command

    RS232 command RS232 pin assignment Serial Serial Short with pin8 Short with pin7 Ground Function Type Operation ASCII Write Power On <CR>*pow=on#<CR> Power Write Power off <CR>*pow=off#<CR> Read Power Status <CR>*pow=?#<CR> Write COMPUTER/YPbPr <CR>*sour=RGB#<CR> Write COMPUTER 2/YPbPr2 <CR>*sour=RGB2#<CR> Write DVI-D <CR>*sour=dvid#<CR>...
  • Page 15 Function Type Operation ASCII Write Contrast + <CR>*con=+#<CR> Write Contrast - <CR>*con=-#<CR> Read Contrast value <CR>*con=?#<CR> Write Brightness + <CR>*bri=+#<CR> Write Brightness - <CR>*bri=-#<CR> Read Brightness value <CR>*bri=?#<CR> Write Color + <CR>*color=+#<CR> Write Color - <CR>*color=-#<CR> Read Color value <CR>*color=?#<CR> Write Sharpness + <CR>*sharp=+#<CR>...
  • Page 16 Function Type Operation ASCII Write 2400 <CR>*baud=2400#<CR> Write 4800 <CR>*baud=4800#<CR> Write 9600 <CR>*baud=9600#<CR> Write 14400 <CR>*baud=14400#<CR> Baud Rate Write 19200 <CR>*baud=19200#<CR> Write 38400 <CR>*baud=38400#<CR> Write 57600 <CR>*baud=57600#<CR> Write 115200 <CR>*baud=115200#<CR> Read Current Baud Rate <CR>*baud=?#<CR> Read Lamp Hour <CR>*ltim=?#<CR> Write Normal mode <CR>*lampm=lnor#<CR>...
