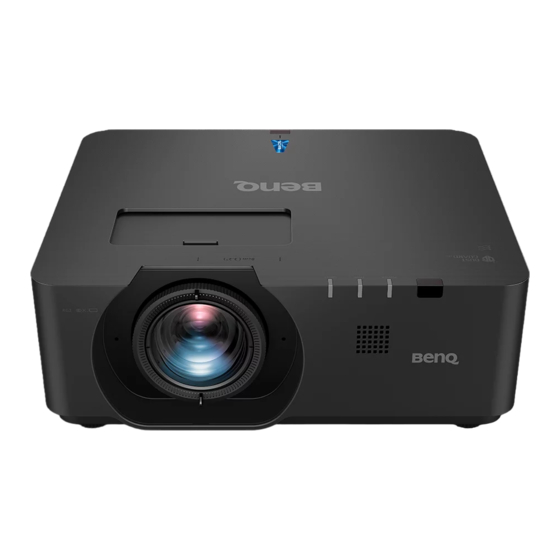

LU960ST2
Projector RS232 Command Control
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LU960ST2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BenQ LU960ST2

Summary of Contents for BenQ LU960ST2

  • Page 1 LU960ST2 Projector RS232 Command Control Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents Introduction .............................. 3 Wire arrangement ..............................3 RS232 pin assignment.............................. 3 Connections and communication settings ................ 4 RS232 serial port with a crossover cable ....................4 Settings ..................................4 RS232 via LAN.................................. 6 Settings ..................................6 RS232 via HDBaseT ..............................7 Settings ..................................

  • Page 3: Introduction

    Introduction The document describes how to control your BenQ projector via RS232 from a computer. Follow the procedures to complete the connection and settings first, and refer to the command table for RS232 commands. Available functions and commands vary by model. Check the specifications and user manual of the purchased projector for product functions.

  • Page 4: Connections And Communication Settings

    Connections and communication settings Choose one of the connections and set up properly before RS232 control. RS232 serial port with a crossover cable D-Sub 9 pin (male) on a projector PC or laptop D-Sub 9 pin (female) Communication cable (crossover) Settings On-screen images in this document are for reference only.
  • Page 5 Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected. Finish Serial port setup.

  • Page 6: Rs232 Via Lan

    Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check None Stop bit 1 bit Flow control None RS232 via LAN RJ45 port on a projector PC or laptop...

  • Page 7: Rs232 Via Hdbaset

    RS232 via HDBaseT HDBaseT compatible device RJ45 port on a projector D-Sub 9 pin RJ45 PC or laptop D-Sub 9 pin LAN cable Settings Determine the COM Port name used for the RS232 communications in Device Manager. Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected.
  • Page 8 Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check None Stop bit 1 bit Flow control None...

  • Page 9: Command Table

    Command table • Available features differ by projector specification, input sources, settings, etc.. • Commands are working if the standby power is 0.5W or a supported baud rate of the projector is set. • Uppercase, lowercase, and a mixture of both types of characters are accepted for a command. •...
  • Page 10 Write Volume + <CR>*vol=+#<CR> Write Volume - <CR>*vol=-#<CR> Write Volume level for customer <CR>*vol=value#<CR> Read Volume Status <CR>*vol=?#<CR> Write Mic. Volume + <CR>*micvol=+#<CR> Write Mic. Volume - <CR>*micvol=-#<CR> Read Mic. Volume Status <CR>*micvol=?#<CR> Write Audio pass Through off <CR>*audiosour=off#<CR> Write Audio-Computer1 <CR>*audiosour=RGB#<CR>...
  • Page 11 Write User1 <CR>*appmod=user1#<CR> Write User2 <CR>*appmod=user2#<CR> Write User3 <CR>*appmod=user3#<CR> Write ISF Day <CR>*appmod=isfday#<CR> Write ISF Night <CR>*appmod=isfnight#<CR> Write <CR>*appmod=threed#<CR> Write Sport <CR>*appmod=sport#<CR> Write HDR10 <CR>*appmod=hdr#<CR> Write <CR>*appmod=hlg#<CR> Write Spreadsheet <CR>*appmod=spreadsheet#< CR> Write Video <CR>*appmod=video<CR> Read Picture Mode <CR>*appmod=?#<CR> Write Contrast + <CR>*con=+#<CR>...
  • Page 12 Color Temperature-lamp <CR>*ct=native#<CR> Write native Read Color Temperature Status <CR>*ct=?#<CR> Write Aspect 4:3 <CR>*asp=4:3#<CR> Write Aspect 16:6 <CR>*asp=16:6#<CR> Write Aspect 16:9 <CR>*asp=16:9#<CR> Write Aspect 16:10 <CR>*asp=16:10#<CR> Write Aspect 2.35:1 <CR>*asp=2.35#<CR> Write Aspect Auto <CR>*asp=AUTO#<CR> Write Aspect Real <CR>*asp=REAL#<CR> Write Aspect Letterbox <CR>*asp=LBOX#<CR>...
  • Page 13 Write 4 Corners Top-Right-X <CR>*cornerfittrx=-#<CR> Decrease Write 4 Corners Top-Right-X Increase <CR>*cornerfittrx=+#<CR> Read 4 Corners Top-Right-X Status <CR>*cornerfittrx=?#<CR> Write 4 Corners Top-Right-Y <CR>*cornerfittry=-#<CR> Decrease Write 4 Corners Top-Right-Y Increase <CR>*cornerfittry=+#<CR> Read 4 Corners Top-Right-Y Status <CR>*cornerfittry=?#<CR> Write 4 Corners Bottom-Left-X <CR>*cornerfitblx=-#<CR>...
  • Page 14 Read Brilliant color status <CR>*BC=?#<CR> Write Auto(HDR) <CR>*hdr=auto#<CR> Write <CR>*hdr=sdr#<CR> Write HDR10 <CR>*hdr=hdr#<CR> Write <CR>*hdr=hlg#<CR> Read HDR status <CR>*hdr=?#<CR> Write Reset current picture settings <CR>*rstcurpicsetting#<CR> Write Reset all picture settings <CR>*rstallpicsetting#<CR> Write Projector Position-Front Table <CR>*pp=FT#<CR> Write Projector Position-Rear Table <CR>*pp=RE#<CR>...
  • Page 15 Write Standby Settings-Microphone <CR>*standbymic=off#<CR> Read Standby Settings-Microphone <CR>*standbymic=?#<CR> Status Write Standby Settings-Monitor Out <CR>*standbymnt=on#<CR> Write Standby Settings-Monitor Out <CR>*standbymnt=off#<CR> Read Standby Settings-Monitor Out <CR>*standbymnt=?#<CR> Status Write 2400 <CR>*baud=2400#<CR> Write 4800 <CR>*baud=4800#<CR> Write 9600 <CR>*baud=9600#<CR> Write 14400 <CR>*baud=14400#<CR> Baud Rate Write 19200 <CR>*baud=19200#<CR>...
  • Page 16 Read MCU F/W Version <CR>*mcufwversion=?#<CR> Read Ballast F/W Version <CR>*ballastfwversion=?#<CR> Write Blank On <CR>*blank=on#<CR> Write Blank Off <CR>*blank=off#<CR> Read Blank Status <CR>*blank=?#<CR> Write Freeze On <CR>*freeze=on#<CR> Write Freeze Off <CR>*freeze=off#<CR> Read Freeze Status <CR>*freeze=?#<CR> Yes Write Menu On <CR>*menu=on#<CR> Write Menu Off <CR>*menu=off#<CR>...
  • Page 17 Write Remote Receiver-top+rear <CR>*rr=tr#<CR> Read Remote Receiver Status <CR>*rr=?#<CR> Write Instant On-on <CR>*ins=on#<CR> Write Instant On-off <CR>*ins=off#<CR> Read Instant On Status <CR>*ins=?#<CR> Write Lamp Saver Mode-on <CR>*lpsaver=on#<CR> Write Lamp Saver Mode-off <CR>*lpsaver=off#<CR> Read Lamp Saver Mode Status <CR>*lpsaver=?#<CR> Write Projection Log In Code on <CR>*prjlogincode=on#<CR>...
  • Page 18 Write save Lens memory 6 <CR>*lenssave=m6#<CR> Write save Lens memory 7 <CR>*lenssave=m7#<CR> Write save Lens memory 8 <CR>*lenssave=m8#<CR> Write save Lens memory 9 <CR>*lenssave=m9#<CR> Write save Lens memory 10 <CR>*lenssave=m10#<CR> Write Reset Lens to center <CR>*lensreset=center#<CR>...
  • Page 19 BenQ.com © 2018 BenQ Corporation All rights reserved. Rights of modification reserved. Version: 1.01-C...
