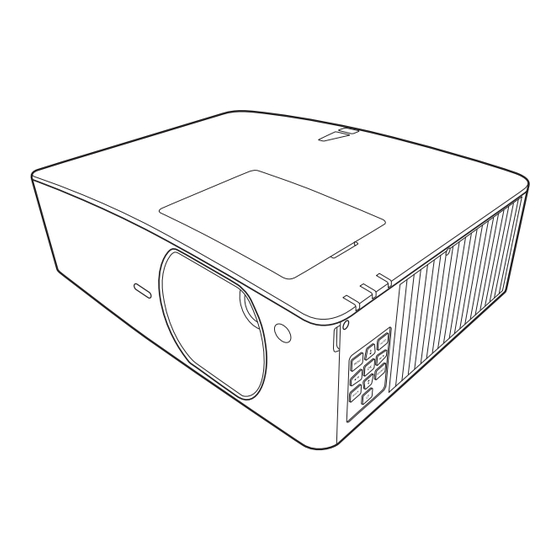

- Page 1 Digital Projector User Manual LX710 / LX710D / LU710 / LU710D / LH710 / LH710D LX730 / LX730D / LU930 / LU930D / LH930 / LH930D V 1.00...
-
Page 2: Warranty And Copyright Information
For other information, please visit www.BenQ.com. Copyright Copyright © 2019 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. -
Page 3: Table Of Contents
Table of Contents Warranty and Copyright information ................2 Important safety instructions ....................4 Introduction .......................... 6 Shipping contents ............................6 Projector exterior view ..........................8 Controls and functions..........................9 Positioning your projector ....................11 Choosing a location ..........................11 Obtaining a preferred projected image size.................. -
Page 4: Important Safety Instructions
15. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's power outlet and call BenQ to have the projector serviced. 16. This apparatus must be earthed. - Page 5 - Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector. - Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up. - Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the projector's life span and darken the image.
-
Page 6: Introduction
Introduction Shipping contents Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories LX710/LX710D/LU710/ LX730/LX730D LU930/LU930D/LH930/ LU710D/LH710/LH710D LH930D Projector Remote control with batteries... - Page 7 • Avoid leaving the remote control and batteries in an excessive heat or humid environment like the kitchen, bathroom, sauna, sunroom or in a closed car. • Replace only with the same or equivalent type recommended by the battery manufacturer. •...
-
Page 8: Projector Exterior View
Projector exterior view LX710/LX710D/LU710/ LX730/LX730D LU930/LU930D/LH930/ LU710D/LH710/LH710D LH930D 13 15 1. Vent (air exhaust) 13. Component RCA RGB input jacks 2. Focus and zoom ring 14. Video input jack 3. Projection lens 15. Audio (L/R) input jacks 4. IR remote sensor 16. -
Page 9: Controls And Functions
Controls and functions Projector & Remote control All the key presses described in this document are available on the remote control or projector. 1. MENU 3. BACK Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. - Page 10 6. OK 13. NETWORK Confirms the selected On-Screen Display Displays the network settings menu. (OSD) menu item. 14. INFO 7. SOURCE Displays the projector information. Displays the source selection bar. 15. FREEZE 8. KEYSTONE Freezes the projected image. Displays the keystone correction page. 9.
-
Page 11: Positioning Your Projector
Purchase the BenQ Projector Ceiling Note that a special rear projection screen and the Mount Kit from your dealer to mount your BenQ Projector Ceiling Mount Kit are required projector on the ceiling. for this installation location. After turning on the projector, go to Advanced Menu - Settings > Projector Installation >... -
Page 12: Obtaining A Preferred Projected Image Size
Obtaining a preferred projected image size The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size. Projection dimensions LX710/LX710D/LX730/LX730D 4:3 Screen diagonal Screen Center of lens Projection distance •... - Page 13 • All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.
- Page 14 • The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio LU710/LU710D Screen size Projection distance (mm) Diagonal Min distance Max distance Offset (mm) H (mm) W (mm) Average Inch (max. zoom) (min. zoom) 1270 1077 1217...
- Page 15 • All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.
-
Page 16: Mounting The Projector
If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may fall down due to an improper attachment through the use of the wrong gauge or length screws. - Page 17 • Make sure the power outlet is at an accessible height so that you can easily shut down the projector. Ceiling/Wall mount installation diagram BenQ ceiling mount CMG3 (5J.JAM10.001) Ceiling mount screw: M4 (Max. L = 25 mm; Min. L = 20 mm)
-
Page 18: Adjusting The Projector Position (Lu930/Lu930D/Lh930/Lh930D)
Adjusting the projector position (LU930/LU930D/LH930/LH930D) Shifting the projection lens The lens shift control provides flexibility for installing your projector. It allows the projector to be positioned off the center of the screen. The lens shift is expressed as a percentage of the projected image height or width. You can turn the knobs on the projector to shift the projection lens in any direction within the allowable range depending on your desired image position. -
Page 19: Adjusting The Projected Image
Adjust the projected image to the size that you Sharpen the image by rotating the focus ring. need using the zoom ring. LU930/LU930D/LH930/LH930D LU930/LU930D/LH930/LH930D LX710/LX710D/LX730/LX730D/ LX710/LX710D/LX730/LX730D/ LU710/LU710D/LH710/LH710D LU710/LU710D/LH710/LH710D Correcting keystone Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection. - Page 20 3. When 2D Keystone correction page displays, you can also do the following settings: • Press AUTO to reset the keystone values. • Press to disable the auto vertical keystone function. Adjusting Corner Fit You can manually adjust four corners of the image by setting the horizontal and vertical values. 1.
-
Page 21: Connection
Connection When connecting a signal source to the projector, be sure to: 1. Turn all equipment off before making any connections. 2. Use the correct signal cables for each source. 3. Ensure the cables are firmly inserted. Notebook or Monitor desktop computer A/V device HDMI cable... - Page 22 You need only connect the projector to a video source device using just one of the connecting methods, however each provides a different level of video quality. Terminal Picture quality Best HDMI 1 Better Component Video Normal Video Connecting audio The projector has built-in mono speaker(s) which are designed to provide basic audio functionality accompanying data presentations for business purposes only.
-
Page 23: Operation
Operation Starting up the projector 1. Plug the power cord. Turn on the power outlet switch (where fitted). The power indicator on the projector lights orange after power has been applied. 2. Press on the projector or on the remote control to start the projector. -
Page 24: Using The Menus
Using the menus The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various adjustments and settings. • Basic OSD menu: provides primary menu functions. (See Basic menu on page • Advanced OSD menu: provides full menu functions. (See Advanced menu on page To access the OSD menu, press MENU on the projector or remote control. -
Page 25: Securing The Projector
Below is the overview of the Basic OSD menu. Press OK to enter Menu Type Basic Menu the menu. Light Mode Brightness Dimming Main menu Status Aspect Ratio Wireless LAN Auto Picture Mode Information Presentation Menu Type Volume Current input Press MENU to signal exit. - Page 26 Please write down the recall code, and contact 2. Write down the number and turn off your projector. BenQ Customer Center. 3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of Recall Code: purchase documentation to verify that you are an authorized user of the projector.
-
Page 27: Switching Input Signal
Switching input signal The projector can be connected to multiple devices at the same time. Source However, it can only display one full screen at a time. When starting up, the projector automatically searches for the available signals. Be sure the Advanced Menu - Settings > Auto Source Search menu is On if you want the projector to automatically search for the signals. - Page 28 10. The IP Address, Subnet Mask, Default Gateway, and DNS Server settings will be displayed. Note down the IP address displayed in the IP Address row. If the IP Address still does not display, contact your ITS administrator. If you are in a non-DHCP environment: 1.
- Page 29 To switch input source, click on your desired signal. The source list varies according to the connectors available on the projector. ''Video'' stands for the Video signal. The tools page allows you to manage the projector, configure the Network settings and secure access of remote network operation on this projector.
-
Page 30: Shutting Down The Projector
The info page displays the information and status of this projector. Press Exit to go back to the remote network operation page. For more information, visit http://www.crestron.com & www.crestron.com/getroomview. Shutting down the projector 1. Press on the projector or on the remote control and a confirmation message will appear prompting you. -
Page 31: Menu Operation
Menu operation Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using. The menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible. - Page 32 Advanced menu Main menu Submenu Options Bright/Presentation/Infographic/ Picture Mode Video/sRGB/(3D)/User 1/User 2 Bright/Presentation/Infographic/ Reference Mode Video/sRGB/(3D) 0~50~100 Brightness Tint -50~0~50 Contrast -50~0~50 Color 0~15~31 Sharpness Brilliant Color On/Off Color Cool/Normal/Warm Temperature R Gain (0~50~100) G Gain (0~50~100) Color B Gain (0~50~100) Temperature R Offset (-50~0~50) Tuning...
- Page 33 Main menu Submenu Options Aspect Ratio Auto/Real/4:3/16:9/16:10 H: -30~0~30 2D Keystone V: -30~0~30 Auto Vertical Keystone Corner Fit Test Pattern Off/Grid W/Grid G/RGB Ramps Phase PC & Component YPbPr Tuning H. Size H：-5~0~5 Position V：-5~0~5 Auto/Top Bottom/Frame 3D Mode Sequential/Frame Packing/Side by Side/Off 3D Sync Invert Disable/Invert...
- Page 34 Main menu Submenu Options Front Table/Rear Table/Rear Projector Installation Ceiling/Front Ceiling Remote Receiver Front/Top/Front+Top Auto Source Search On/Off Auto Sync On/Off Dynamic Dimming On/Off Normal/Economic/Dimming/ Custom Light Mode Light Settings Custom Brightness Light Usage Time Disable/5 min/10 min/15 min/ Blank Timer 20 min/25 min/30 min Reminder On/Off...
- Page 35 Auto Disable Network Off/20 min/1 hr/3 hr/6 hr Standby Settings Standby Mode Audio Pass Off/Audio in/Audio L/R/HDMI Through 1/HDMI 2 Background BenQ/Gray/Black/Blue/Purple Background Settings Splash Screen BenQ/Black/Blue System Menu Type Basic/Advanced Menu Settings Menu Display 5 sec/10 sec/20 sec/30 sec/Always...
-
Page 36: Basic Menu
Picture Mode • Video: Is suitable for playing videos in an environment where there is ambient light. Dynamic color details are preserved by BenQ enhancement technology. • sRGB: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD. - Page 37 Volume Adjusts the sound level. Light Mode Setting the Light Mode on page • Native Resolution: Shows the native resolution of the projector. • Detected Resolution: Shows the native resolution of the input signal. • Source: Shows the current signal source. •...
-
Page 38: Advanced Menu
Picture Mode • Video: Is suitable for playing videos in an environment where there is ambient light. Dynamic color details are preserved by BenQ enhancement technology. • sRGB: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD. - Page 39 This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone Brilliant Color images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors.
- Page 40 Wall Color Corrects the projected picture’s color when the projection surface such as a Advanced painted wall which may not be white, the Wall Color feature can help correct the Color Settings projected picture’s colors to prevent possible color difference between the source and projected pictures.
- Page 41 Display There are several options to set the image's aspect ratio depending on your input signal source. • Auto: Scales an image (LH710/LH710D/ (LX710/LX710D/ (LU710/LU710D/ LU930/LU930D) LH930/LH930D) LX730/LX730D) proportionally to fit the projector's native resolution in its horizontal or vertical width.
- Page 42 This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images. •...
- Page 43 Digital Zoom Magnifies or reduces the projected image size. 1. After the adjustment bar displays, press repeatedly to reduce or magnify the image to a desired size. 2. Press OK to enter panning mode. 3. Press the directional arrows ( , ) on the projector or remote control to navigate the picture.
- Page 44 AMX Device When this function is On, the projector can be detected by AMX controller. Discovery MAC Address Displays the mac address for this projector. (Wired) Settings Projector The projector can be installed on a ceiling or behind a screen, or with one or more mirrors.
- Page 45 Blank Timer Sets the image blank time when there is no action taken on the blank screen, once elapsed the image will return to the screen. If the preset time spans are not suitable for your need, select Disable. No matter Blank Timer is activated or not, you can press most of the keys on the projector or remote control to restore the picture.
- Page 46 Selects a baud rate that is identical with your computer’s so that you can connect Baud Rate the projector using a suitable RS-232 cable and update or download the projector’s firmware. This function is intended for qualified service personnel. Adjusts the equalizer gain settings for an HDMI signal. The higher the setting, the HDMI stronger the gain value.
- Page 47 • Closed Caption Enable: Activates the function by selecting On when the selected input signal carries closed captions. Closed Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and Caption videos that are closed captioned (usually marked as "CC" in TV listings). •...
-
Page 48: Maintenance
Maintenance Care of the projector Cleaning the lens Clean the lens whenever you notice dirt or dust on the surface. Please be sure to turn off the projector and let it cool down completely before cleaning the lens. • Use a canister of compressed air to remove dust. •... -
Page 49: Light Source Information
Light source information Getting to know the light source hour When the projector is in operation, the duration (in hours) of light source usage is automatically calculated by the built-in timer. The method of calculating the equivalent light source hour is as follows: Light source Usage Time = (hours used in Normal mode) + (hours used in Economic mode) + (hours used in Dimming mode) + (hours used in Custom mode) Total (equivalent) light source hour = 1.0 x (hours used in Normal mode) + 1.0 x (hours used in... - Page 50 Indicators Light Status & Description Power events Stand-by mode Powering up Normal operation Normal power-down cooling Download CW start fail Phosphor wheel start fail Burn-in ON Burn-in OFF Light source events Light source life exhausted Light source error in normal operation Light source is not lit up Thermal events Fan 1 error (the actual fan speed is outside the desired speed)
-
Page 51: Troubleshooting
Troubleshooting The projector does not turn on. Cause Remedy Plug the power cord into the AC power jack on the projector, and plug the power cord into the power outlet. If There is no power from the power cord. the power outlet has a switch, make sure that it is switched Attempting to turn the projector on again during Wait until the cooling down process has completed. -
Page 52: Specifications
1-CHIP DMD RJ45 x 1 Lens 12V trigger x 1 LX710/LX710D: F = 2.59~2.87, f = 16.88~21.88 mm IR receiver x 2 LX730/LX730D: F = 2.45~3.07, f = 15.75~25.1 mm Input terminals LU710/LU710D: F = 1.94~2.07, f = 11.9~15.5 mm LH710/LH710D: F = 1.94~2.12, f = 11.9~15.5 mm... -
Page 53: Dimensions
Dimensions 416 mm (W) x 166 mm (H) x 351 mm (D) Unit: mm Specifications... -
Page 54: Timing Chart
XGA_85 84.997 68.667 94.500 XGA_120 (Reduce 119.989 97.551 115.5 Supported Blanking) 1152 x 864 1152 x 864_75 67.5 BenQ 1024 x 576 60.0 35.820 46.966 Notebook_timing BenQ 1024 x 600 64.995 41.467 51.419 Notebook_timing 1280 x 720 1280 x 720_60 45.000... - Page 55 97.551 115.5 Supported Blanking) 1152 x 864 1152 x 864_75 67.5 1280 x 768 1280 x 768_60 59.87 47.776 79.5 BenQ Notebook 1024 x 576 60.00 35.820 46.996 Timing BenQ Notebook 1024 x 600 64.995 41.467 51.419 Timing 1280 x 720 1280 x 720_60 45.000...
- Page 56 • Video timings Supported 3D format Vertical Horizontal Pixel Timing Resolution Frequency Frequency Frequency Frame Frame Side by (Hz) (kHz) (MHz) Sequential Packing Bottom Side 480i 720 x 480 59.94 15.73 Supported 480p 720 x 480 59.94 31.47 Supported 576i 720 x 576 15.63 576p...
