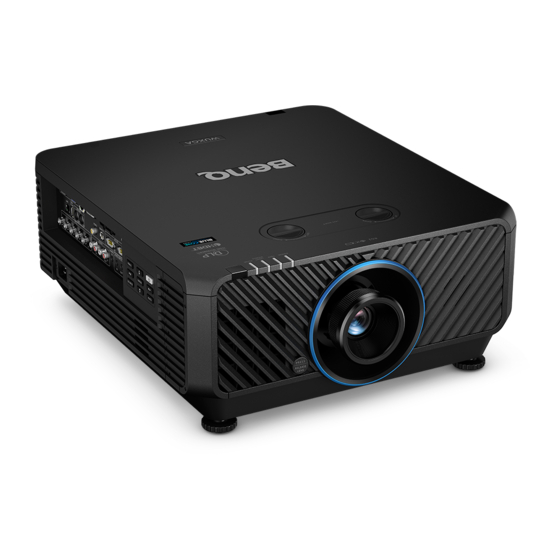

LU9255
Projector RS232 Command Control
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LU9255 and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ LU9255

Summary of Contents for BenQ LU9255

  • Page 1 LU9255 Projector RS232 Command Control Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents Introduction ............................. 3 Wire arrangement ................................ 3 RS232 pin assignment ..............................3 Connections and communication settings ..................4 RS232 serial port with a crossover cable ....................... 4 Settings .................................. 4 RS232 via LAN ................................6 Settings .................................. 6 RS232 via HDBaseT ..............................

  • Page 3: Introduction

    Introduction The document describes how to control your BenQ projector via RS232 from a computer. Follow the procedures to complete the connection and settings first, and refer to the command table for RS232 commands. Available functions and commands vary by model. Check the specifications and user manual of the purchased projector for product functions.

  • Page 4: Connections And Communication Settings

    Connections and communication settings Choose one of the connections and set up properly before RS232 control. RS232 serial port with a crossover cable D-Sub 9 pin (male) on a projector PC or laptop D-Sub 9 pin (female) Communication cable (crossover) Settings On-screen images in this document are for reference only.
  • Page 5 Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected. Finish Serial port setup. Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check...

  • Page 6: Rs232 Via Lan

    RS232 via LAN RJ45 port on a projector PC or laptop LAN cable Settings Find the Wired LAN IP address of the connected projector from the OSD menu and make sure the projector and the computer are within the same network. Input 8000 in the TCP port # field.
  • Page 7 Finish Serial port setup. Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check None Stop bit 1 bit Flow control None...

  • Page 8: Command Table

    Command table • Available features differ by projector specification, input sources, settings, etc.. • Commands are working if the standby power is 0.5W or a supported baud rate of the projector is set. • Uppercase, lowercase, and a mixture of both types of characters are accepted for a command. •...
  • Page 9 Write Volume - <CR>*vol=-#<CR> Write Volume level for customer <CR>*vol=value#<CR> Read Volume Status <CR>*vol=?#<CR> Write Mic. Volume + <CR>*micvol=+#<CR> Write Mic. Volume - <CR>*micvol=-#<CR> Read Mic. Volume Status <CR>*micvol=?#<CR> Write Audio pass Through off <CR>*audiosour=off#<CR> Write Audio-Computer1 <CR>*audiosour=RGB#<CR> Write Audio-Computer2 <CR>*audiosour=RGB2#<CR>...
  • Page 10 Write Sport <CR>*appmod=sport#<CR> Write HDR10 <CR>*appmod=hdr<CR> Write <CR>*appmod=hlg<CR> Read Picture Mode <CR>*appmod=?#<CR> Write Contrast + <CR>*con=+#<CR> Write Contrast - <CR>*con=-#<CR> Write Set Contrast value <CR>*con=5#<CR> Read Contrast value <CR>*con=?#<CR> Write Brightness + <CR>*bri=+#<CR> Write Brightness - <CR>*bri=-#<CR> Write Set Brightness value <CR>*bri=5#<CR>...
  • Page 11 Write Aspect 2.35:1 <CR>*asp=2.35#<CR> Write Aspect 16:10 <CR>*asp=16:10#<CR> Write Aspect Auto <CR>*asp=AUTO#<CR> Write Aspect Real <CR>*asp=REAL#<CR> Write Aspect Letterbox <CR>*asp=LBOX#<CR> Write Aspect Wide <CR>*asp=WIDE#<CR> Write Aspect Anamorphic <CR>*asp=ANAM#<CR> Write Aspect Anamorphic 2.35 <CR>*asp=ANAM2.35#<CR> Write Aspect Anamorphic 16:9 <CR>*asp=ANAM16:9#<CR> Read Aspect Status <CR>*asp=?#<CR>...
  • Page 12 4 Corners Top-Right-Y Write <CR>*cornerfittry=-#<CR> Decrease 4 Corners Top-Right-Y Write <CR>*cornerfittry=+#<CR> Increase 4 Corners Top-Right-Y Read <CR>*cornerfittry=?#<CR> Status 4 Corners Bottom-Left-X Write <CR>*cornerfitblx=-#<CR> Decrease 4 Corners Bottom-Left-X Write <CR>*cornerfitblx=+#<CR> Increase 4 Corners Bottom-Left-X Read <CR>*cornerfitblx=?#<CR> Status 4 Corners Bottom-Left-Y Write <CR>*cornerfitbly=-#<CR>...
  • Page 13 settings Write Reset all picture settings <CR>*rstallpicsetting#<CR> Projector Position-Front Write <CR>*pp=FT#<CR> Table Projector Position-Rear Write <CR>*pp=RE#<CR> Table Projector Position-Rear Write <CR>*pp=RC#<CR> Ceiling Projector Position-Front Write <CR>*pp=FC#<CR> Ceiling Read Projector Position Status <CR>*pp=?#<CR> Write Quick cooling on <CR>*qcool=on<CR> Write Quick cooling off <CR>*qcool=off<CR>...
  • Page 14 Standby Write <CR>*standbymic=on#<CR> Settings-Microphone on Standby Write <CR>*standbymic=off#<CR> Settings-Microphone off Standby Read <CR>*standbymic=?#<CR> Settings-Microphone Status Standby Settings-Monitor Write <CR>*standbymnt=on#<CR> Out on Standby Settings-Monitor Write <CR>*standbymnt=off#<CR> Out off Standby Settings-Monitor Read <CR>*standbymnt=?#<CR> Out Status Write 2400 <CR>*baud=2400#<CR> Write 4800 <CR>*baud=4800#<CR> Write 9600 <CR>*baud=9600#<CR>...
  • Page 15 Read Scaler F/W Version <CR>*scalerfwversion=?#<CR> Read Format F/W Version <CR>*formatfwversion=?#<CR> Read Lan F/W Version <CR>*lanfwversion=?#<CR> Read MCU F/W Version <CR>*mcufwversion=?#<CR> Read Ballast F/W Version <CR>*ballastfwversion=?#<CR> Write Blank On <CR>*blank=on#<CR> Write Blank Off <CR>*blank=off#<CR> Read Blank Status <CR>*blank=?#<CR> Write Freeze On <CR>*freeze=on#<CR>...
  • Page 16 Receiver-front+rear Write Remote Receiver-front <CR>*rr=f#<CR> Write Remote Receiver-rear <CR>*rr=r#<CR> Write Remote Receiver-top <CR>*rr=t#<CR> Remote Write <CR>*rr=tf#<CR> Receiver-top+front Write Remote Receiver-top+rear <CR>*rr=tr#<CR> Read Remote Receiver Status <CR>*rr=?#<CR> Write Instant On-on <CR>*ins=on#<CR> Write Instant On-off <CR>*ins=off#<CR> Read Instant On Status <CR>*ins=?#<CR> Write Lamp Saver Mode-on <CR>*lpsaver=on#<CR>...
  • Page 17 Write Load Lens memory 9 <CR>*lensload=m9#<CR> Write Load Lens memory 10 <CR>*lensload=m10#<CR> Read Lens memory Read <CR>*lensload=?#<CR> status Write save Lens memory 1 <CR>*lenssave=m1#<CR> Write save Lens memory 2 <CR>*lenssave=m2#<CR> Write save Lens memory 3 <CR>*lenssave=m3#<CR> Write save Lens memory 4 <CR>*lenssave=m4#<CR>...
  • Page 18 Write Blue Gain - <CR>*BGain=-#<CR> Write Set Blue Gain value <CR>*BGain=value#<CR> Read Get Blue Gain value <CR>*BGain=?#<CR> Write Red Offset + <CR>*ROffset=+#<CR> Write Red Offset - <CR>*ROffset=-#<CR> Write Set Red Offset value <CR>*ROffset=value#<CR> Read Get Red Offset value <CR>*ROffset=?#<CR> Write Green Offset + <CR>*GOffset=+#<CR>...
  • Page 19 Write Color Gamut Auto <CR>*cgamut=auto#<CR> Write Color Gamut BT.709 <CR>*cgamut=bt.709#<CR> Write Color Gamut BT.2020 <CR>*cgamut=bt.2020#<CR> Write Color Gamut DCI-P3 <CR>*cgamut=dci-p3#<CR> Read Color Gamut Value <CR>*cgamut=?#<CR> Write Dynamic Iris ON <CR>*diris=on#<CR> Write Dynamic Iris OFF <CR>*diris=off#<CR> Read Dynamic Iris status <CR>*diris=?#<CR> Write Color Calibration Save <CR>*colorsave#<CR>...
  • Page 20 BenQ.com © 2018 BenQ Corporation All rights reserved. Rights of modification reserved. Version: 1.01-C...
