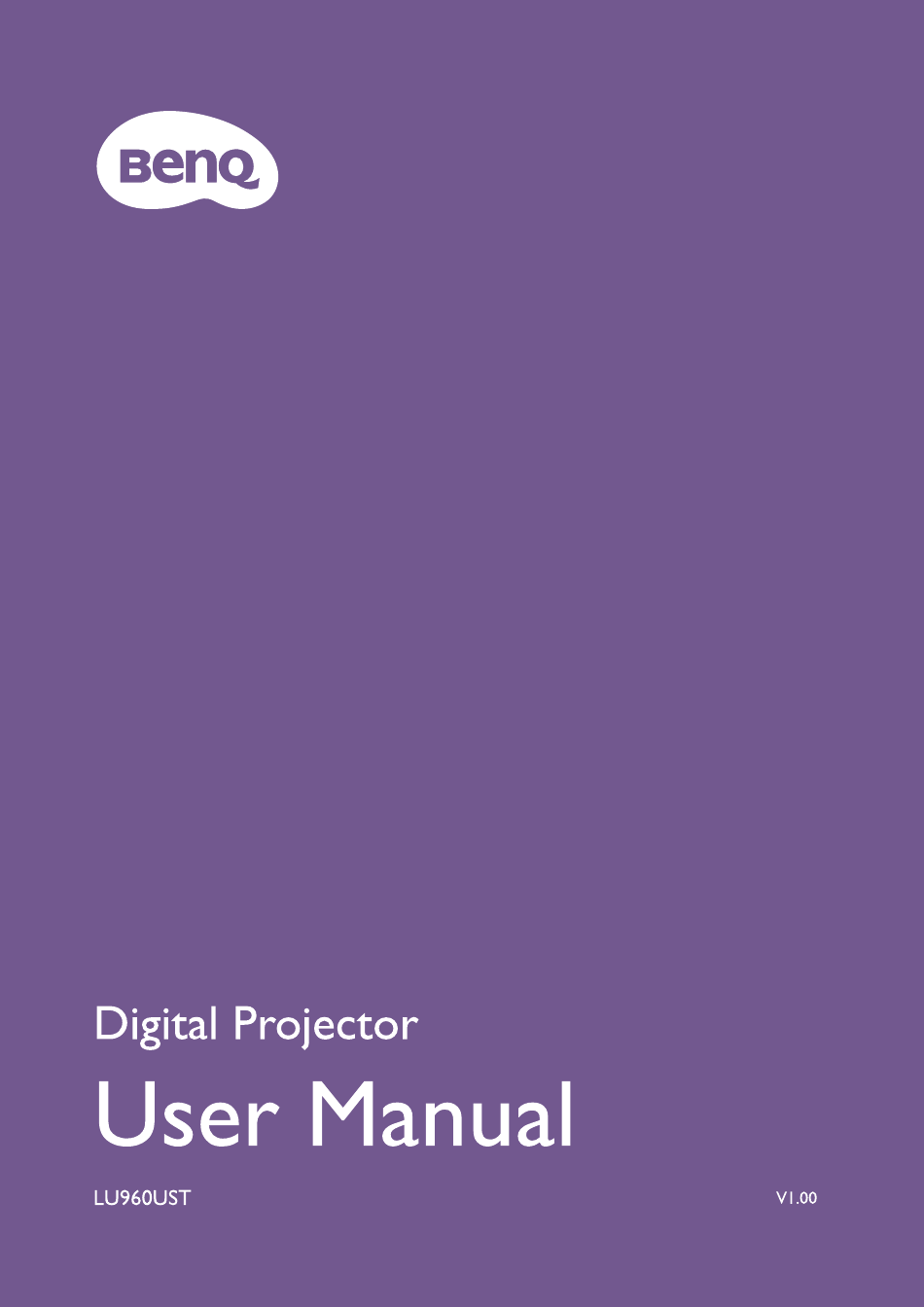

BenQ LU960UST User Manual
  1. Manuals
  2. Brands
  3. BenQ Manuals
  4. Projector
  5. LU960UST
  6. User manual

BenQ LU960UST User Manual

Hide thumbs Also See for LU960UST:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for BenQ LU960UST

Summary of Contents for BenQ LU960UST

  • Page 2: Disclaimer

    Any third party content or service preinstalled in this product is provided "as is". BenQ does not, by expression or by implication, make any warrant to the content or to the services provided by third parties.

  • Page 3: Table Of Contents

    Table of Contents Copyright and disclaimer .............. 2 Copyright ..............................2 Disclaimer ..............................2 Statement regarding hyperlinks and third-party websites ............2 Important safety instructions ............6 General safety instruction .................... 6 Notice on laser ....................... 7 Laser class ..............................7 Laser parameters ...........................
  • Page 4 Display menu ........................36 Corner Fit menu ............................ 38 Digital Image Resizing ..........................38 Blanking menu ............................39 Native Resolution ..........................39 3D menu ..............................40 Fast Mode ..............................40 Picture menu ........................41 Color Temperature Fine Tuning menu ..................... 44 3D Color Management menu ......................
  • Page 5 Specifications ......................... 70 Dimensions ........................71 Attaching for ceiling mount ......................... 71 Appendix ..................72 Timing table ........................72 Support video timing for HDMI input ....................72 Support PC timing for HDMI input ....................72 Support PC timing for PC input ......................75 True 3D Video Compatibility table ....................

  • Page 6: Important Safety Instructions

    Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. General safety instruction 1.

  • Page 7: Notice On Laser

    10. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call BenQ to have the projector serviced. This equipment has a three-pin grounding-type power plug. Do not remove the grounding pin.

  • Page 8: Label Instruction

    Label instruction Below drawing show the label’s location. 1. Laser warning label 2. Spec label...
  • Page 9 Interlock switches This machine has 1 (Top cover x 1) Interlock switches to protect the laser light Leakage. Will power-off the system individually when the top cover is removed. Interlock switches...

  • Page 10: Prepare For Installation

    Prepare for installation Focus adjustment The high clarity projection lens is thermally affected by the light from the light source; thus, the focus is unstable for a short period immediately after the power is turned on. Please wait at least 15 minutes of continuous projection before adjusting the focus.

  • Page 11: Cooling Notice

    Cooling notice Allow at least 50 cm (19.7 inch) for clearance around the exhaust vent. Make sure no objects block air inlet within 50 cm (19.7 inch). Keep the outlet at least 1 m away from the inlets of other projectors. Air outlet Air inlet •...
  • Page 12 • Allow at least 50 cm of clearance around the exhaust vent. Minimum 50 cm Minimum 50 cm (19.69 inch) (19.69 inch) Minimum 50 cm (19.69 inch) Minimum 50 cm (19.69 inch) • Ensure that the air intake vents do not recycle hot air from the exhaust vent. •...

  • Page 13: Package Contents

    Package contents Standard packing items...

  • Page 14: Introduction

    Introduction Projector exterior view Front and upper side view 1. Side vent (air inlet) 2. Projection lens 3. Focus adjustment 4. LIGHT SOURCE indicator light 5. TEMPerature indicator light 6. POWER indicator light 7. Front IR remote sensor 8. Control panel 9.

  • Page 15: Controls And Functions

    Controls and functions Control panel • Power Toggles the projector between standby mode and on. See "Switch on the projector" on page 28 "Switch off the projector" on page 34 for details. • MENU/EXIT Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings.

  • Page 16: Control Terminal

    Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in case of an invalid port, e.g. a wired remote controller is connected to trigger output. For more information about upgrading firmware via Lan, please contact BenQ service.

  • Page 17: Remote Control

    Remote control • ON / OFF Toggles the projector between standby mode and on. • KEYSTONE+/KEYSTONE- Manually corrects distorted images resulting from an angled projection. • VOLUME +/VOLUME - Increases/decreases the projector volume. QUICK INSTALL • Displays the Quick Install OSD menu. •...
  • Page 18 • OVERSCAN Press to select overscan mode. FREEZE • Freezes the projected image. • LAMP MODE Press to display OSD menu to select desired light mode. 3D MODE • Press to display 3D setup menu. • INFO. Press to display INFORMATION menu. LIGHT •...
  • Page 19 Connect with projector When you use a system with multiple projectors, use commercially available M3 stereo mini jack cables to connect the other projectors via the WIRED REMOTE IN/WIRED REMOTE OUT terminals. The remote control is effective even in places where obstacles stand in the light path or where devices are susceptible to outside light.
  • Page 20 Replacing the remote control battery 1. To open the battery cover, turn the remote control over to view its back, push on the finger grip on the cover and slide it up in the direction of the arrow as illustrated. The cover will slide off.

  • Page 21: Installation

    Installation Evaluate for distance by image size Obtaining a preferred projected image size The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size. Projection dimensions Refer to "Dimensions"...
  • Page 22 32.9 Note: There is 5% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will...

  • Page 23: Connection

    Connection Before connecting • Before connecting, carefully read the operating instructions for connecting the external device • Turn off the power to all devices before connecting cables. • Take note of the following before connecting cables. Failure to do so may result in malfunctions.
  • Page 24 HDMI 1 Serial Serial TMDS Data2+ TMDS Clock Shield TMDS Data2 Shield TMDS Clock- Even-numbered pins of 2 to 18 TMDS Data2- TMDS Data1+ Reserved (N.C. on device) TMDS Data1 Shield TMDS Data1- TMDS Data0+ DDC/CEC Ground TMDS Data0 Shield +5 V Power (max 50 mA) Odd-numbered pins of 1 to 19 TMDS Data0-...

  • Page 25: Connecting With Av Equipment

    Connecting with AV equipment DVD player with HDMI Blu-ray disc player terminal (HDCP) VCR (with built-in TBC) Connecting with computer Control Computer Monitor Computer Speaker...

  • Page 26: Connecting With Hdbaset Transmitter

    Connecting with HDBaseT transmitter DVD Player DVD Player VGA Cable Control PC RS-232 RJ45 Cat5e or above Control PC Connecting with LAN...

  • Page 27: Operations

    Operations Switch on/off the projector Connecting the power cord Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied.

  • Page 28: Switch On The Projector

    Switch on the projector POWER on the projector or ON on the remote control to start the projector and Press a start up tone sounds. The POWER indicator light flashes green and stays green when the projector is on. The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.
  • Page 29 Select language To use the OSD menus, please set them to your familiar language first. *After this process is done, this menu will not show up again after 1st time adjustment unless user presses Reset All Settings. 1. Press ENTER on the projector or remote control to turn the OSD menu on.
  • Page 30 2. Use ◄/► to highlight the System Setup: Basic menu. 3. Press ▼ to highlight Language and press ENTER to select a preferred language. 4. Press ENTER twice* on the projector or remote control to leave and save the settings. *The first press leads you back to the main menu and the second press closes the OSD menu.
  • Page 31 Purchase the BenQ Projector Ceiling Note that a special rear projection screen Mounting Kit from your dealer to mount and the BenQ Projector Ceiling Mounting your projector on the ceiling. Kit are required for this installation *Set Front Ceiling in the SYSTEM location.
  • Page 32 Using test pattern The projector is capable of displaying the grid test pattern. It can be used to assist you with the adjustment of image size and focus, ensuring that the projected image is free from distortion. To display the test pattern, open the OSD menu and go to the System Setup: Advanced > Test Pattern and press ◄/►...
  • Page 33 3. Press ▲/▼/◄/► to select one of the four corners and press ENTER. 4. Press ▲/▼ to adjust vertical values. 5. Press ◄/► to adjust horizontal values. Auto adjusting the image In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control.

  • Page 34: Switch Off The Projector

    Fine tuning the image clarity Sharpen the image by rotating the FOCUS ring. Focus ring Switch off the projector 1. Press POWER or OFF and a confirmation message will appear prompting you. If you don't respond in a few seconds, the message will disappear. 2.

  • Page 35: Using The Menu

    Using the menu Main menu The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings. Below is the overview of the OSD menu. Main menu icon Main menu Sub-menu Status Press MENU to Current input the previous page signal or to exit.

  • Page 36: Display Menu

    Display menu Wall Color • Press ◄/► to correct the image color bias reflected by the wall. The options are Off, Light Yellow, Pink, Light Green, Blue and Blackboard. • Aspect Ratio Press ◄/► to adjust the aspect of the projected image. The options are Auto, Real, 4:3, 16:9, 16:10 and 2.4:1.
  • Page 37 3. 4:3: Scales an image so that it is displayed in 4. 16:9: Scales an image so that it is displayed the center of the screen with a 4:3 aspect in the center of the screen with a 16:9 ratio. This is most suitable for 4:3 images aspect ratio.

  • Page 38: Corner Fit Menu

    Corner Fit menu • Top Left Press ENTER and press ▲/▼/◄/► to correct the top left corner. • Top Right Press ENTER and press ▲/▼/◄/► to correct the top right corner. • Bottom Left Press ENTER and press ▲/▼/◄/► to correct the bottom left corner. •...

  • Page 39: Blanking Menu

    Blanking menu • Press ◄/► to adjust the top blanking area on the projected picture. • Bottom Press ◄/► to adjust the bottom blanking area on the projected picture. • Left Press ◄/► to adjust the left blanking area on the projected picture. •...

  • Page 40: 3D Menu

    3D menu 3D Sync Mode • Press ◄/► to select the 3D sync mode. The options are DLP Link and VESA 3D. • 3D Mode Press ENTER to enter the 3D Mode menu. Press ▲/▼ to select the 3D format. The options are Auto, Top-Bottom, Frame Sequential, Frame Packing, Side-By-Side and Off.

  • Page 41: Picture Menu

    Video: Is suitable for playing videos in an environment where there is ambient light. • Dynamic color details are preserved by BenQ enhancement technology. • DICOM SIM: This display mode simulates the grayscale/gamma performance of equipment used for “Digital Imaging and Communications in Medicine”...
  • Page 42 When 0 is selected, the Color Temperature function is not available. Gamma Selection • Gamma refers to the relationship between input source and picture brightness. 1.8/2.0/2.1/BenQ/DICOM: Select these values according to your preference. • • 2.2/2.3: Increases the average brightness of the picture. Best for a lit environment, meeting room or family room.

  • Page 43: Color Temperature Fine Tuning Menu

    Color Temperature Fine Tuning • Press ENTER to enter the Color Temperature Fine Tuning menu. See "Color Temperature Fine Tuning menu" on page 43 for more details.3D Color Management • 3D Color Management Press ENTER to enter the 3D Color Management menu. See "3D Color Management menu"...

  • Page 44: 3D Color Management Menu

    3D Color Management menu • Primary Color Press ENTER to enter the Primary Color menu. Press ▲/▼ to select the primary color. The options are R, G, B, C, M, Y, and W. When Primary Color select R, G, B, C, M and Y, Adjusting Hue, Saturation and Gain. •...

  • Page 45: Source Menu

    If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc. You can Yellow GREEN project any image from the disc on the screen and enter the 3D Color Management menu to make adjustments.
  • Page 46 HDMI Format • Press ◄/► to selects a suitable color format to to optimize display quality. The options are Auto, RGB Limited, RGB Full, YUV Limited and YUV Full. Auto: Automatically selects a suitable color space and gray level for the incoming HDMI •...

  • Page 47: System Setup : Basic Menu

    Press ◄/► to select the background color when no input signal. The options are BenQ, Black, Blue and Purple. • Splash Screen Press ◄/► to select the start up patern when the projector turns on. The options are BenQ, Black and Blue. • Rear Light To enable or disable Rear LED light for Illumination on terminals.

  • Page 48: Menu Settings Menu

    Menu Settings menu • Menu Display Time Press ◄/► to select the menu display time period. The options are 5 sec, 10 sec, 20 sec, 30 sec and Always. Menu Position • Press ◄/► to select the menu display position. The options are Center, Top-Left, Top-Right, Bottom-Right and Bottom-Left.
  • Page 49 Filter Settings menu • Filter Timer Press ◄/► to enable or disable filter timer. Reset Filter Timer • Press ENTER to reset the filter timer when the filter is replaced. • Filter Usage Time Displays the cureent number of hours the filter has been used.

  • Page 50: System Setup : Advanced Menu

    System Setup : Advanced menu High Altitude Mode • Press ◄/► to enable or disable High Altitude Mode. Enable this function when the operating altitude is higher than 1500m or the ambient temperature is over 40°C. • Dynamic Dimming Press ◄/► to enable or disable dynamic dimming function. Enable the function to automatically reduces the screen's brightness level when the displayed image contains a high proportion of bright areas.
  • Page 51 HDbaseT control function table Standby Mode Control Function Remark Network Normal Side (< 0.5W) (<2W) (>2W) Front-IR O (Can disable (Wireless) by OSD) Rear-IR O (Can disable (Wireless) by OSD) RS-232 RJ45/LAN Wired Remote HDBT-IR (Wireless) RS-232 RJ45/LAN User can connect wired Wired Remote remote at HDBaseT TX side to get the wired function.

  • Page 52: Audio Settings Menu

    Audio Settings menu • Mute Press ◄/► to enable or disable the mute function. • Using the remote control Press MUTE to temporarily turn off the sound. While the sound is off, the screen will display in the upper right corner of the screen. To restore the sound, press MUTE again.

  • Page 53: Light Settings Menu

    Light Settings menu • Light Mode Press ◄/► to select the light mode. The options are Normal, Economic, Dimming and Custom. Custom Brightness • Press ◄/► to adjust the brightness of the projector. • Constant Brightness Press ◄/► to enable or disable the function to maintain the brightness at similar level. Light Usage Time •...

  • Page 54: Standby Settings Menu

    Standby Settings menu • Standby Mode Press ◄/► to select the standby mode. The options are Eco, Network and Normal. Auto Disable Network Standby Mode • Press ◄/► to enable or disable the auto switch from network standby mode to non-network standby mode after a period of time.

  • Page 55: Network Settings Menu

    Network Settings menu • Wired LAN Press ENTER to enter the Wired LAN menu to setup the IP address, subnet mask, default gatway, DNS server and DHCP. AMX Device Discovery • Press ◄/► to enable or disable the AMX device discovery function. When the function is enabled, the projector can be detected by an AMX controller.
  • Page 56 Light Mode • Displays the current light mode. • HDBaseT Displays the current HDBaseT status. • 3D Format Displays the current 3D mode. Only available when 3D Mode is enabled. • Color System Displays the input system format. • Light Usage Time Displays the number of hours the light has been used.

  • Page 57: Menu Structure

    Menu structure Main menu Sub-menu Options Display Wall Color Off / Light Yellow / Pink / Light Green / Blue / Blackboard Aspect Ratio Auto / Real / 4 : 3 / 16 : 9 / 16 : 10 / 2.4 : 1 2D Keystone H: -15~0~15 / V: -15~0~15 Corner Fit...
  • Page 58 0~15~31 Brilliant Color 0~10 Gamma Selection 1.8 / 2.0 / 2.1 / 2.2 / 2.3 / 2.4 / 2.6 / DICOM / BenQ HDR Brightness -2/ -1 / 0 / 1 / 2 Color Temperature Cool / Normal / Warm...
  • Page 59 Filter Timer: On / Off Reset Filter Timer: Reset / Cancel Filter Usage Time Panel Key Lock On / Off Background Color BenQ / Black / Blue / Purple / Gray Splash Screen BenQ / Black / Blue Rear Light On / Off Projector ID Setting Off / 01 / 02 / …...
  • Page 60 Main menu Sub-menu Options System Setup: Image Memory Save Image Memory Memory-1 / Memory-2 / Advanced Memory-3 / Memory-4 / Memory-5 Apply Image Memory Memory-1 / Memory-2 / Memory-3 / Memory-4 / Memory-5 12V Trigger On / Off Standby Settings Standby Mode Eco/ Network / Normal Auto Disable Network...

  • Page 61: Maintenance

    Maintenance Before maintaining the projector • Make sure to turn off the power before maintaining the projector. • When switching off the projector, make sure to follow the procedures in "Switch off the projector" on page Care of the projector Your projector needs little maintenance.

  • Page 62: Filter Maintenance

    Filter maintenance Cleaning the filter The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. If the filter is dirty or clogged, your projector may overheat or degrading the projected image quality. 1. Turn off the projector, and unplug the AC power cord from the AC outlet. 2.

  • Page 63: Replacing The Filter

    Replacing the filter 1. Turn off the projector and unplug the power cord from the outlet. Remove any dust on the projector and around the air vents. Loosen the two hooks that secure the filter module. 2. Remove the filter module from the projector. 3.

  • Page 64: Led Indicator

    LED indicator LED Usage LED Name Detailed Description Display the power on/off sequence status Orange : Power Off (Green + Red) Power LED Green : Power On Blink : Warming up/Shutting Down & Cooling / Error Code Display the Thermal status (Fan Fail, Over Temperature, etc.) Temperature Status LED Red : Thermal Over Temperature...

  • Page 65: Burn-In Messages

    Power Temp Light Status & Description Orange Case open Orange Filter replace warning Flashing Green Orange Thermal break sensor error Flashing Burn-In Messages Power Temp Light Status & Description Green Burn-in ON Green Green Green Burn-in OFF Lamp Error Messages Power Temp Light...
  • Page 66 Power Temp Light Status & Description Green Fan 11 error (the actual fan speed is outside the Flashing Flashing desired speed) Green Fan 12 error (the actual fan speed is outside the Flashing desired speed) Green Temperature 1 error (over limited temperature) Green Thermal Sensor 1 open error Flashing...

  • Page 67: Troubleshooting

    The projector will display a coded number on the screen. 2. Write down the number and turn off your projector. 3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to...

  • Page 68: Specifications

    Specifications Specifications Optical Control Resolution LU960UST Mini USB x1 (for service) 1920 x 1200 RS-232 serial control Display system 9 pin x 1 (In) Single-chip DLP™ system IR receiver x 1 Light source 12V TRIGGER Laser diodes 12VDC (Max. 0.2 A) x 1...

  • Page 69: Dimensions

    Dimensions Unit: mm Attaching for ceiling mount...

  • Page 70: Appendix

    Appendix Timing table Support video timing for HDMI input Dot Clock User 3D frame side- Timing Resolution frequency frequency Frequency Manual 3D Field over- packing (kHz) (Hz) (MHz) Supported under side 720(1440) x 15.73 59.94 480i ◎ 480p 720 x 480 31.47 59.94 ◎...
  • Page 71 1024 x 768 XGA_85 84.997 68.667 94.5 XGA_120 119.989 97.551 115.5 ◎ (Reduce Blanking) 1152 x 864 1152 x 864_75 67.5 BenQ Notebook 1024x576 35.82 46.996 Timing BenQ Notebook 1024x600 64.995 41.467 51.419 Timing 1280 x 720_60 74.25 ◎ ◎...
  • Page 72 Refresh User Clock Resolution Mode rate frequency Manual over- side- (MHz) Field (Hz) (kHz) Supported under by-side 59.883 64.674 ◎ ◎ 1680x1050_60 (Reduce Blanking) 1680x1050 1680x1050_60 59.954 65.29 146.25 ◎ ◎ 640x480 MAC13 66.667 30.24 @67Hz 832x624 MAC16 74.546 49.722 57.28 @75Hz MAC19...

  • Page 73: Support Pc Timing For Pc Input

    68.667 94.5 XGA_120 119.989 97.551 115.5 ◎ (Reduce Blanking) 1152 x 864 1152 x 864_75 67.5 1024 x 576 BenQ NB Timing 35.82 46.966 1024 x 600 BenQ NB Timing 64.995 41.467 51.419 1280 x 720_60 74.25 ◎ ◎ ◎...
  • Page 74 Refresh User Clock Resolution Mode rate frequency Manual over- side- (MHz) Field (Hz) (kHz) Supported under by-side WXGA+_60 55.469 88.75 ◎ ◎ (Reduce Blanking) 1440 x 900 WXGA+_60 59.887 55.935 106.5 ◎ ◎ 1400X1050 SXGA+_60 59.978 65.317 121.75 ◎ ◎ 1600x1200 UXGA ◎...

  • Page 75: True 3D Video Compatibility Table

    True 3D Video Compatibility table Input timing 1280 X 720P @ 50Hz Top - and - Bottom 1280 X 720P @ 60Hz Top - and - Bottom 1280 X 720P @ 50Hz Frame packing HDMI 1.4a 3D 1280 X 720P @ 60Hz Frame packing Input 1920 X 1080i @50 Hz...

  • Page 76: Rs232 Command Control

    RS232 command control Function Type Operation ASCII Power Write Power On <CR>*pow=on#<CR> Write Power off <CR>*pow=off#<CR> Read Power Status <CR>*pow=?#<CR> Source Write COMPUTER/YPbPr <CR>*sour=RGB#<CR> Selection Write COMPUTER 2/YPbPr2 <CR>*sour=RGB2#<CR> Write DVI-D <CR>*sour=dvid#<CR> Write HDMI (MHL) <CR>*sour=hdmi#<CR> Write HDMI 2 (MHL2) <CR>*sour=hdmi2#<CR>...
  • Page 77 Function Type Operation ASCII Picture Write Contrast + <CR>*con=+#<CR> Setting Write Contrast - <CR>*con=-#<CR> Write Set Contrast value <CR>*con=5#<CR> Read Contrast value <CR>*con=?#<CR> Write Brightness + <CR>*bri=+#<CR> Write Brightness - <CR>*bri=-#<CR> Write Set Brightness value <CR>*bri=5#<CR> Read Brightness value <CR>*bri=?#<CR> Write Color + <CR>*color=+#<CR>...
  • Page 78 Function Type Operation ASCII Picture Write 4 Corners Top-Left - X Decrease <CR>*cornerfittlx=-#<CR> Setting Write 4 Corners Top-Left - X Increase <CR>*cornerfittlx=+#<CR> Read 4 Corners Top-Left - X Status <CR>*cornerfittlx=?#<CR> Write 4 Corners Top-Left - Y Decrease <CR>*cornerfittly=-#<CR> Write 4 Corners Top-Left - Y Increase <CR>*cornerfittly=+#<CR>...
  • Page 79 Function Type Operation ASCII Operation Write Projector Position-Front Table <CR>*pp=FT#<CR> Settings Write Projector Position-Rear Table <CR>*pp=RE#<CR> Write Projector Position-Rear Ceiling <CR>*pp=RC#<CR> Write Projector Position-Front Ceiling <CR>*pp=FC#<CR> Read Projector Position Status <CR>*pp=?#<CR> Write Quick auto search <CR>*QAS=on#<CR> Write Quick auto search <CR>*QAS=off#<CR>...
  • Page 80 Function Type Operation ASCII Miscellaneous Read Model Name <CR>*modelname=?#<CR> Read System F/W Version <CR>*sysfwversion=?#<CR> Read Scaler F/W Version <CR>*scalerfwversion=?#<CR> Read Lan F/W Version <CR>*lanfwversion=?#<CR> Read MCU F/W Version <CR>*mcufwversion=?#<CR> Write Blank On <CR>*blank=on#<CR> Write Blank Off <CR>*blank=off#<CR> Read Blank Status <CR>*blank=?#<CR>...
  • Page 81 Function Type Operation ASCII Miscellaneous Write AMX Device Discovery - on <CR>*amxdd=on#<CR> Write AMX Device Discovery - off <CR>*amxdd=off#<CR> Read AMX Device Discovery Status <CR>*amxdd=?#<CR> Read Mac Address <CR>*macaddr=?#<CR> Write High Altitude mode on <CR>*Highaltitude=on#<CR> Write High Altitude mode off <CR>*Highaltitude=off#<CR>...
  • Page 82 Function Type Operation ASCII Color Write Blue Offset + <CR>*BOffset=+#<CR> Calibration Write Blue Offset - <CR>*BOffset=-#<CR> Write Set Blue Offset value <CR>*BOffset=value#<CR> Read Get Blue Offset value <CR>*BOffset=?#<CR> Write Primary Color <CR>*primcr=value#<CR> Read Primary Color Status <CR>*primcr=?#<CR> Write Hue + <CR>*hue=+#<CR>...

  • Page 83: Pjlink

    PJLink PJLink protocal The network function of this projector support the PJLink class 1, and the PJLink protocal can be used to perform projector setting and projector status query operations from a computer. Control commands The following table lists the PJLink protocal commands that can be used to control the projector. •...
  • Page 84 Control Parameter/ Command Remark Details Return String Input selection 11 12 21 31 32 INST? LU960UST list query 33 34 Projector name Returns the name set in [PROJECTOR NAME] of NAME? xxxxx query [NETWORK SETUP] Manufacturer INF1? BenQ Returns manufacturer name...
