If the rambler shows signs of wear, then it is very likely that the
main bore in the barrel is worn also. If the bore is worn or
scratched, it will not seal correctly, and may leak under
pressure.
11. Re-assembly is the reverse of the above. Ensure that all seals and sealing surfaces are
1
8
clean and undamaged.
8
14
4
3
2
15

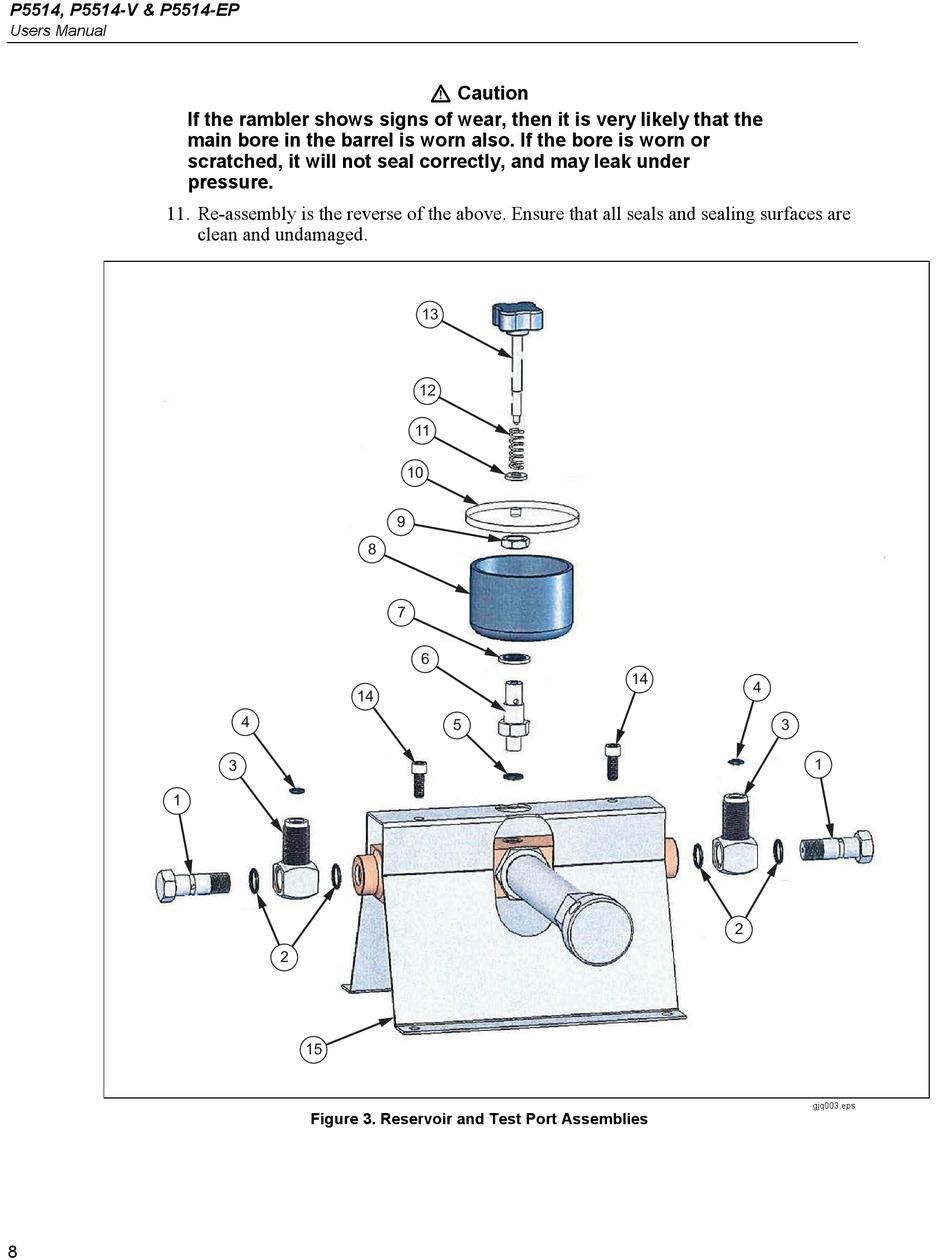

Figure 3. Reservoir and Test Port Assemblies
W Caution
13
12
11
10
9
7
6
5
14
4
3
2
1
gjq003.eps
