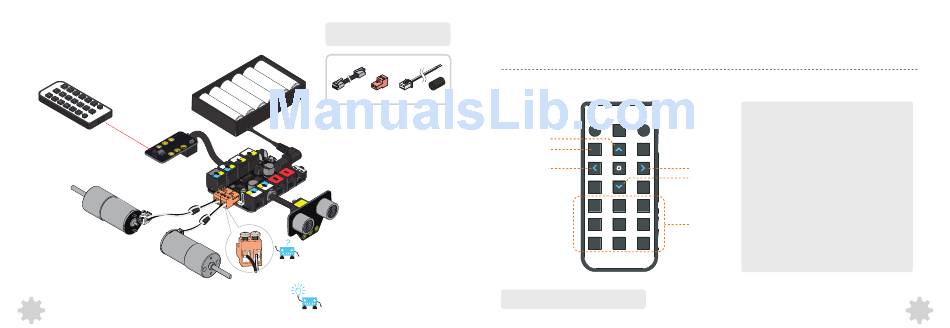

Wiring
Me IR Remote Control(CR2025
battery,not included
)
Me Infrared Receiver Sensor
DC Motor-25(M1)
DC Motor-25(M2)
11
To reduce the electromagnetic interference, please
add ferrite ring for the wires which connected to
motors.
2×
2×
2×
2×
Battery Holder( 6 x AA batteries ,
not included
)
Makeblock Orion
Me Ultrasonic Sensor
You may need to switch the order of two
wires to correct the rotation direction.
Working with remote control
––Construct It Once, Control It Everywhere
A
B
C
Forward
D
E
Switch mode
Left
0
F
1
2
3
4
5
6
7
8
9
Now it's time to play your robot!
Remote control :
Press key D to switch modes
Manual mode :
Right
Backward
Press direction keys for car direction and
number keys for speed.
Ultrasonic obstacle avoidance mode:
The car will run and avoid obstacle
Speed
automatically. No response when press
any keys until you switch mode.
