Assembly - Qualcast SCM32A Assembly Manual

Assembly

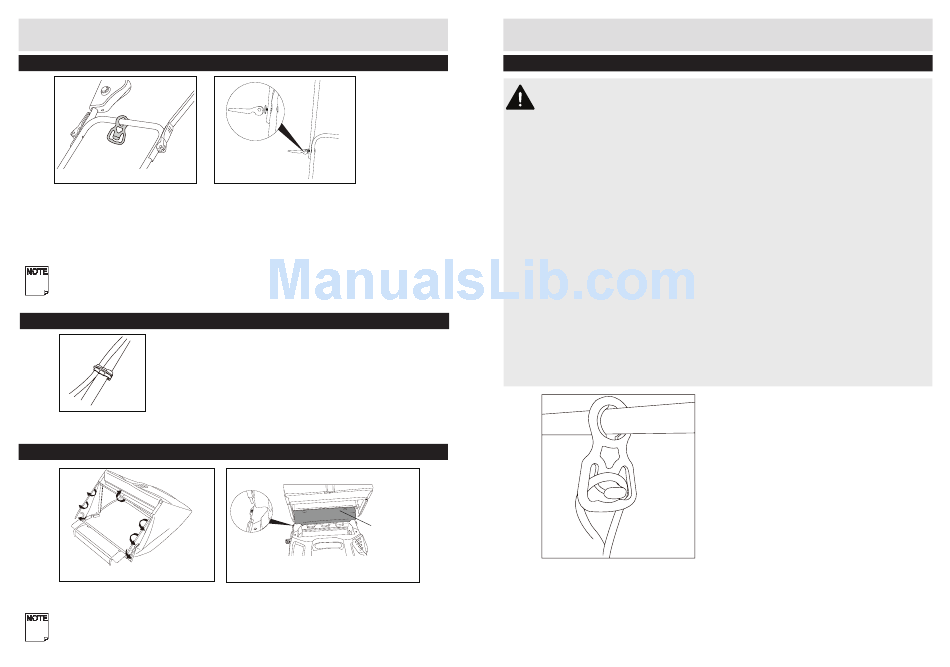

Step 2 - Assembling the middle and upper handles
1. Slide the cord retainer onto the middle handle, sliding it around to the top of the handle so it
does not fall off during the following assembly steps.
2. Slide the middle handle into the profiled area of the lower handle frame. Make sure that the
holes of both sides off the upper handle are directly aligned with the holes of the frame.
3. Secure the upper handle to the middle handle frame with the CAM lever and bolts provided.
4. Repeat the above process on the upper and lower handle.
Note: Make sure that the switch box is on the same side as the cable from the deck and that
they are not twisted.
Step 3 Securing the power cord with cable clip
1. Secure the power cable to the frame using the cable clips. Use one clip on the middle handle
frame and the second on the lower handle frame.
Step 4 - Fitting the grass box
Assembling the Grass bag /frame
1. Fix all of the P-Clip plastic extrusion over the metal frame.
2. When assembling the grass bag onto the machine, lift the front plastic cross strap and locate the
2pins into the slot holes on the deck.
Note: Make sure the extension plastic part is on the bar above front roller
Customer Helpline 01904 727500
6
www.gardenservicecentre.co.uk
extension plastic
part
Assembling the Grass bag to the machine
Assembly
Step 5 - Connection to the power supply
WARNING!
- Read all of the instructions of this manual before connecting the power supply for your tool.
- If the insulation on a power cable or extension lead is found to be cut or damaged, do not
touch it! Disconnect the power supply immediately and have the damaged cable replaced by
authorized service agent.
- If operating the appliance in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Use only extension cords suitable for outdoor use, preferably with a high visibility cable colour.
Always unwind all extension cables fully, coiled cables can overheat and reduce the efficiency of
your product.
- For extension cables up to 15metres, use a wire cross section of 1.5mm
extension cables over 15 meters but less than 40 meters, use a wire cross section of 2.5 mm
(cable diameter).
- This product is designed to operate on 230-240 VAC 50Hz. The voltage and current must
comply with the information on the ratings label!
- This rear roller cylinder mower is fitted with a non-rewireable plug.If it is necessary to change
the fuse in the plug or the fuse cover become loose or damaged, the plug must not be used until
a suitable replacement is obtained.
- A 13amp fuse must be fitted.
1. Make sure the on/off switch is in its off position.
2. Double the extension cord, about a foot from the end. Push the loop through the hole on the rear
safe guard and hook the loop over the cord restrainer. Gently pull on the cord to ensure that it is
firmly attached at the handle.
3. Connect the cord to a suitable socket.
Customer Helpline 01904 727500
www.gardenservicecentre.co.uk
(cable diameter). For
2
2
7
